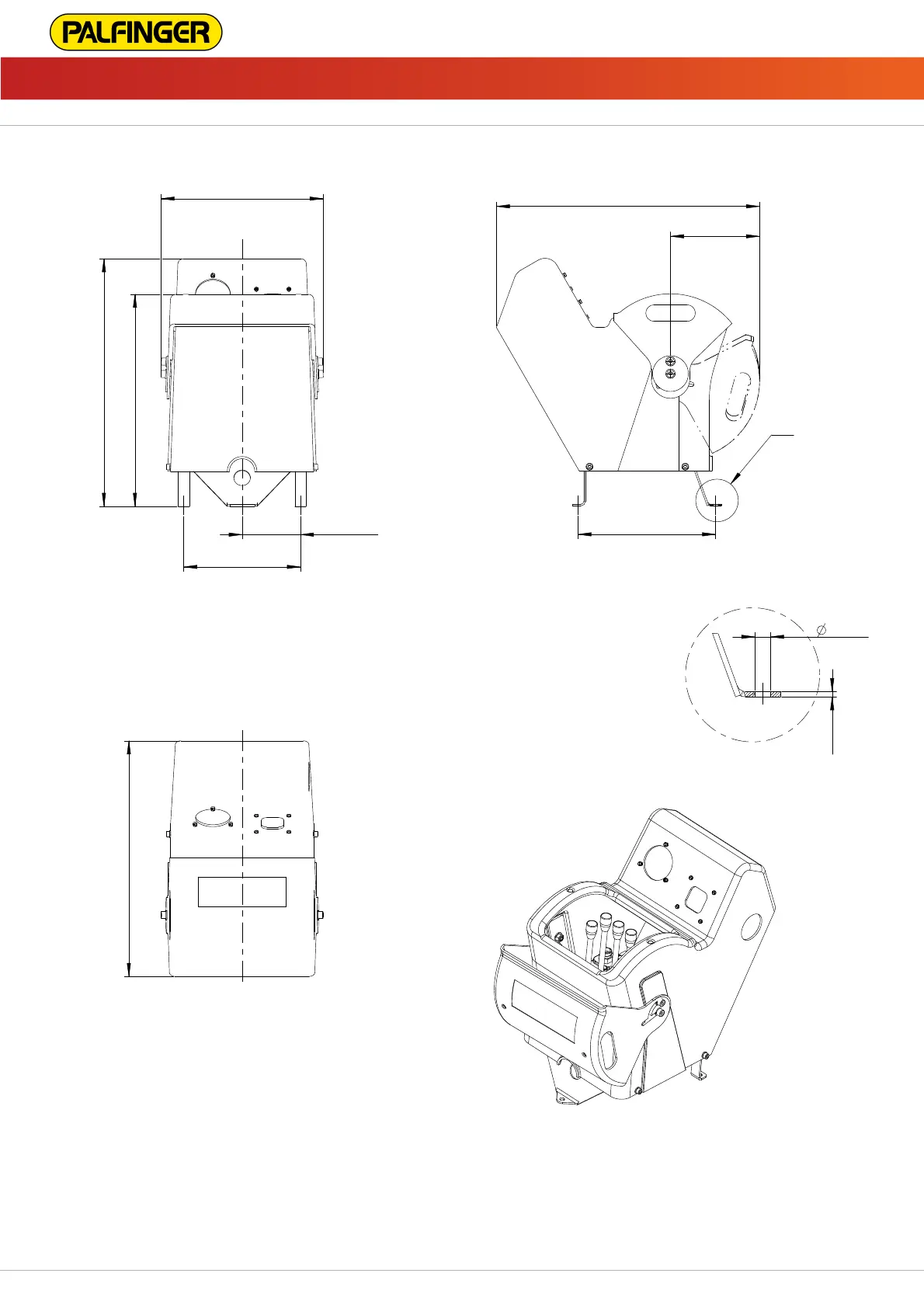

Palfinger PC 3800 - Control Stand and Counter Control Dimensions

295 [11.60]
385 [15.17]
450 [17.71]
106 [4.17]
212 [8.35]
428 [16.85]
478 [18.83]
250 [9.85]
161 [6.34]
9 [.35]
3 [.12]
Modell: DT_S026BF01A.ASM
X
X
www.palfinger.com
PC 3800 JI010.05100
03/2015
Control stand
Subject to change, production tolerances have to be taken into account.
