Palfinger PC 3800 - Remote Control Console Symbols

Device and function

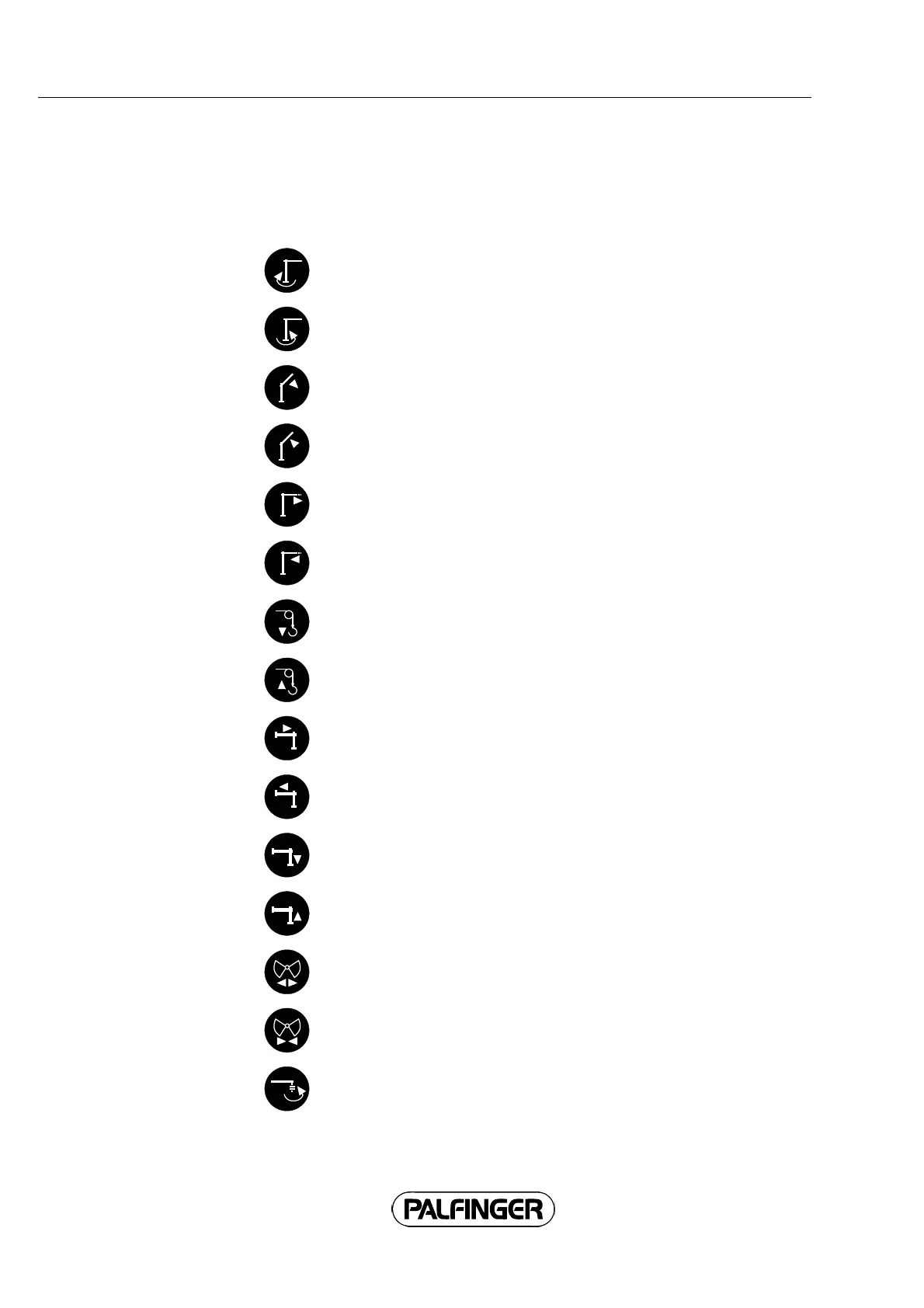

Symbols of remote control console
Depending on the labelling of the panel buttons (levels 1 and 2) the following functions are enabled by
pushing the buttons:
Slew clockwise (right)
Slew counter-clockwise (left)
Lower main boom
Lift main boom
Extend extension boom
Retract extension boom
Lower rope winch
Raise rope winch
Extend outrigger beam
Retract outrigger beam
Extend stabilizer cylinder
Retract stabilizer cylinder
Open grab
Close grab
Rotator counter-clockwise (left)
