Chapter 4 Device and function

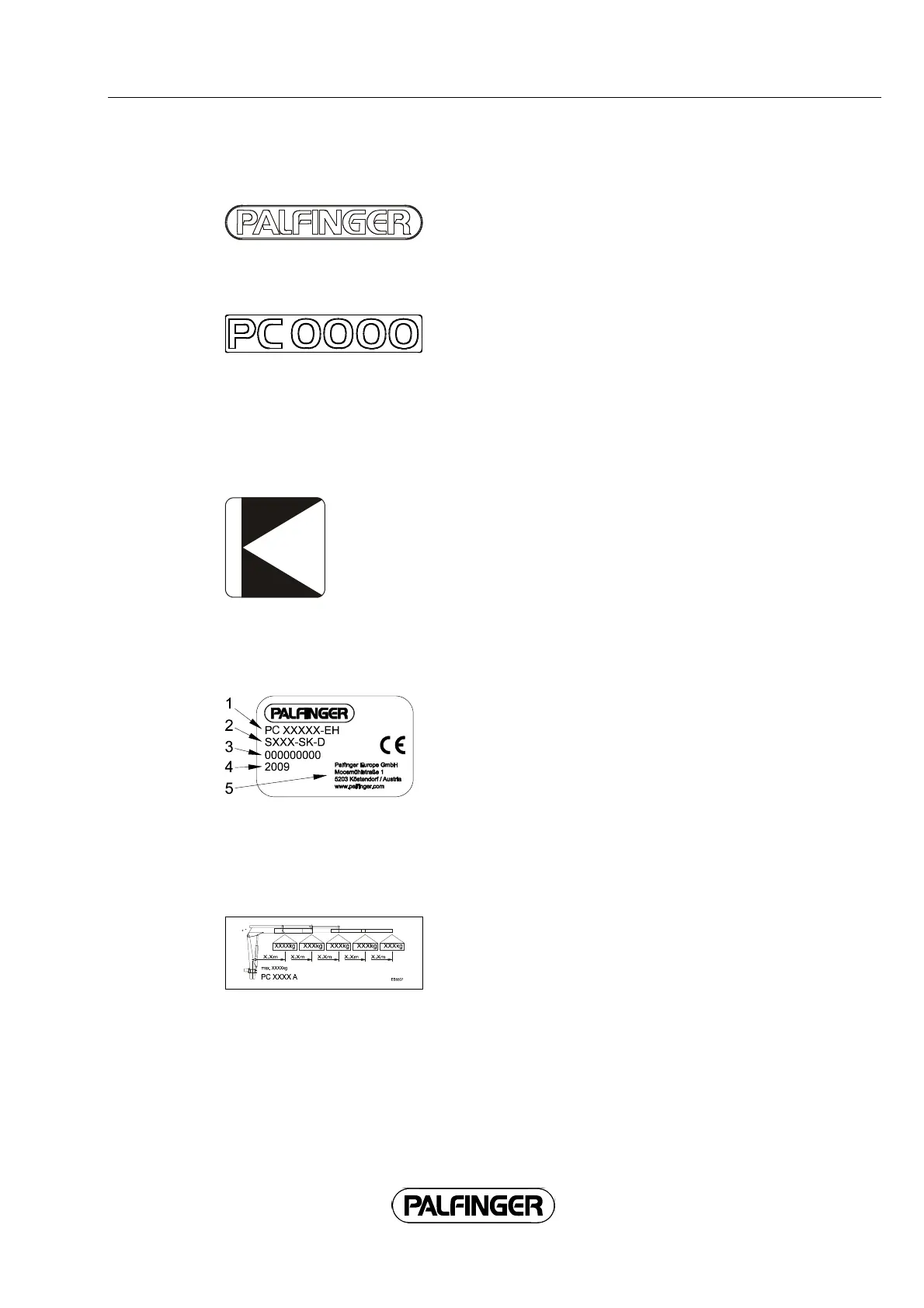

1.
1. Company name label
Position:
Both sides on main boom and fly-jib
2. Crane model label
Position:
Both sides of main boom.
Meaning:
Product title.
3. Indication for completely extended outrigger beam
Position:
On the outrigger beam.
Meaning:
Outrigger beam completely extended.
Risk if ignored:
If outrigger beam is not completely extended the vehicle stability
may be reduced.
4. Type plate
Position: On the crane column.
Meaning: Information about
1 Machine type
2 Internal code
3 Serial number
4 Year built
5 Company address
The identification plate may not be changed or removed.
5. Load capacity label
Position:
Operating stand.
Meaning:
Specification of loads, load ranges and ranges.
Risk if ignored:
Overloading the crane, danger of the vehicle tipping over.
