11.3. Procedures
Change the Frame Configuration 11.3.1.
To change frame configuration, follow steps below and Figure 38 and Figure 39.
1. Release cables from the two cable clips on the angled cross bar on the frame.
2. At the four frame connection points loosen and remove the two nuts on the side
connections and the two nuts on the top connections.
3. Pull out the carriage screws at the four frame connection points and remove the two
bushings installed in the side tabs. Hold the frame at the heavier control box side to
prevent it from tipping.
4. Move the frame to align it with the other set of connection points corresponding to the new
frame configuration.
5. Insert the four carriage screws into four frame connection points. The two side bolts
should go through bushings as shown in Figure 38.
6. Secure the frame with the four nuts at the connection points; tighten the nuts. Make sure
the square portion of screw heads are fitted into the square holes in frame.
7. Adjust and clip the cables to the frame to fit the frame configuration.

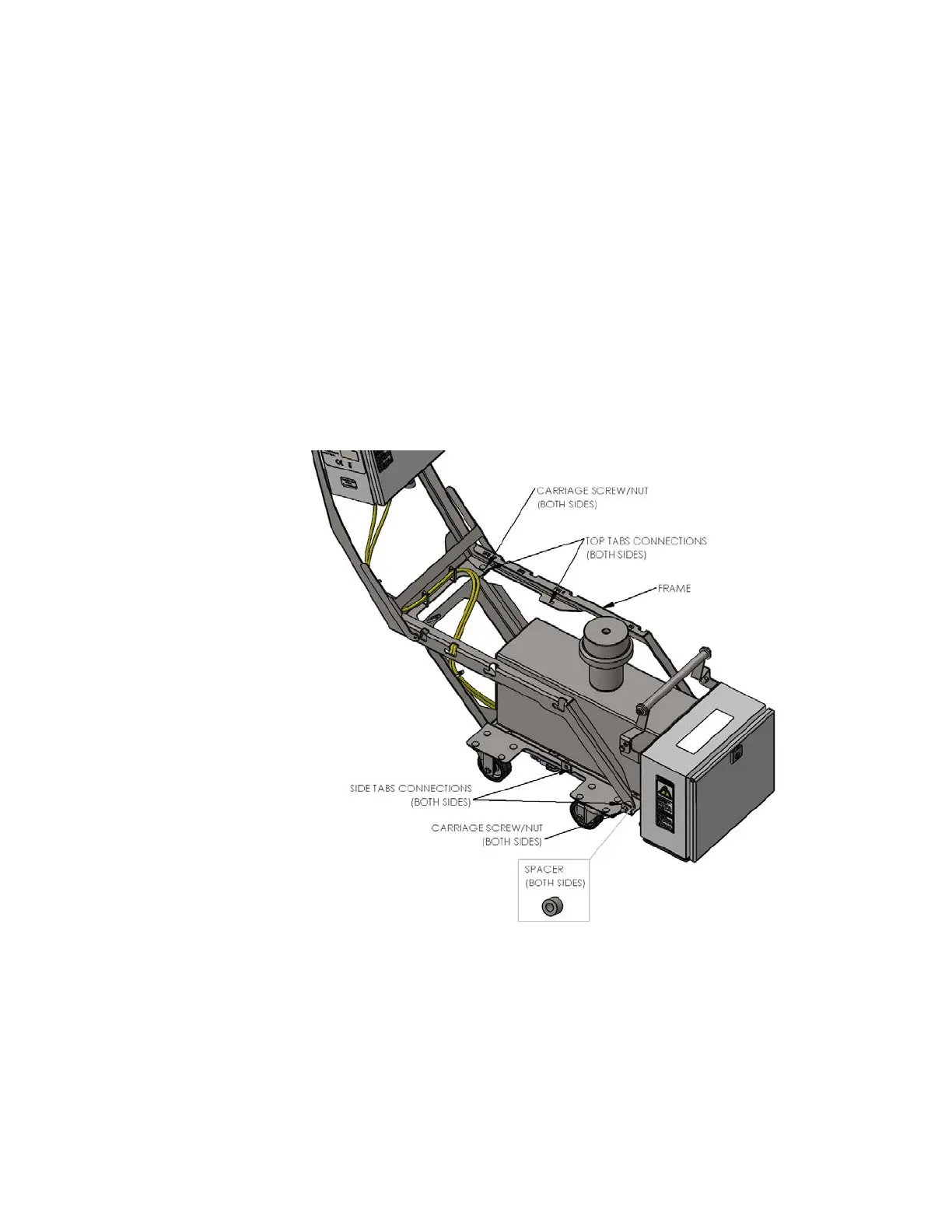

Figure 37: Frame adjustments elements
