Pall Allegro MMG403 User Manual

40
Power Cord Replacement 11.3.2.
Should you need to replace the power cord with an alternative one, follow the procedure as
described below. Only use power cords provided by Pall for replacement.
Changing the power cord is performed through a power entry connector on the back panel of the
control box.
To replace the power cord, follow these steps (see Figure 40):
1. Ensure the unit is turned off.
2. Unplug the unit from the external power supply.
3. Disconnect the power cord from the control box by rotating the power connector holding
cap counterclockwise then, holding the connector plug, pull it out of the receptacle.
4. Attach the replacement power cord connector plug to the power receptacle on the control
box. Make sure the key on the receptacle and key hole in the plug are aligned and the
connector plug is pushed all the way in.
5. Secure the connector holding cap by rotating it clockwise. Tighten the cap firmly to seal
the connection.

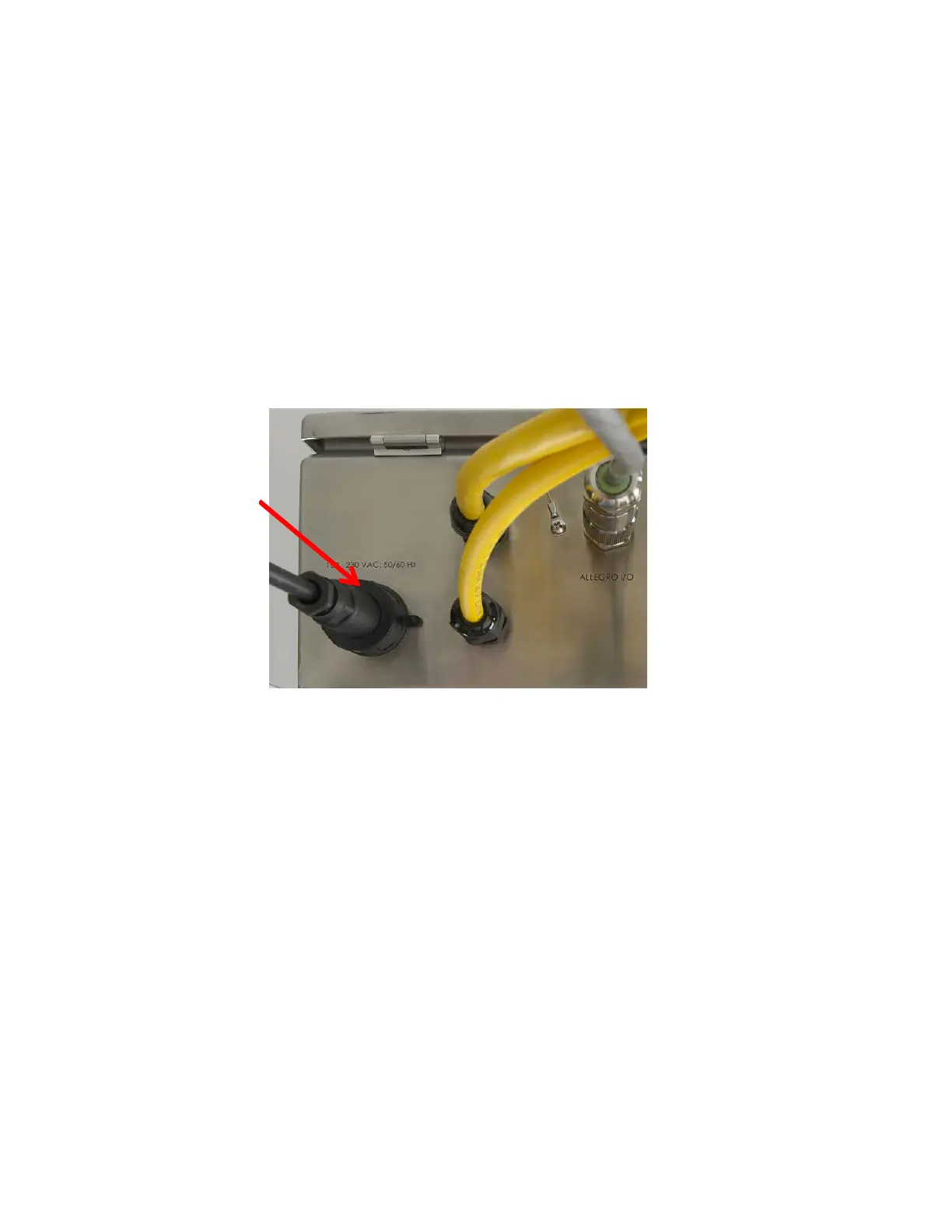

Figure 39: Power cord replacement
Power connector
holding cap
