Pall Allegro MMG403 User Manual

43

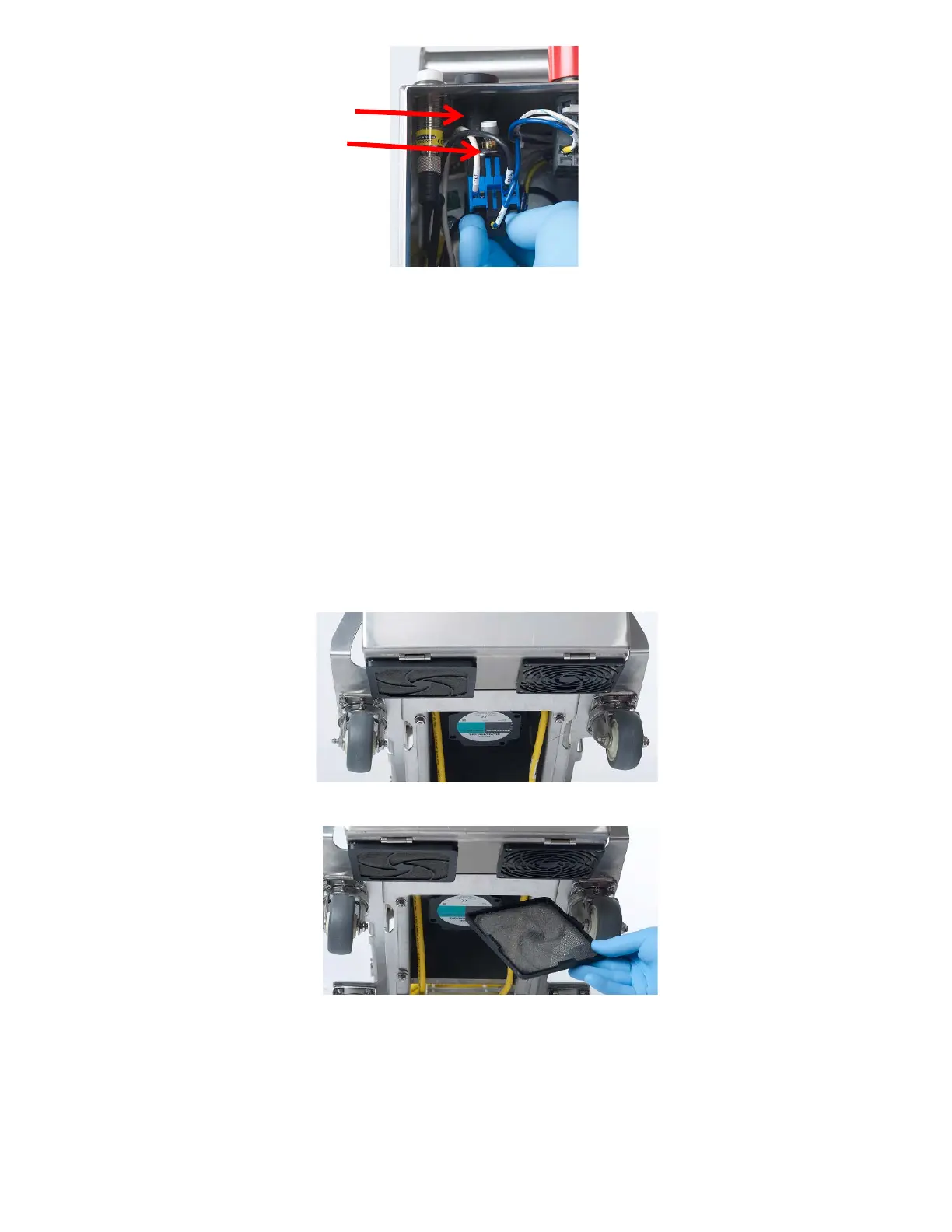

Figure 43: LED bulb replacement
Air Filter Inspection 11.3.6.
To inspect air filter, follow steps below:
• Switch the unit off and unplug it from the external power source.
• Lean the entire unit back to expose the bottom of the unit.
• Unsnap all four clips of the filter cover with a flat-head screwdriver and detach it from
the filter body.
• Remove the cover by sliding it out. The filter tissue is located between the filter body
and filter cover (see Figure 45 & Figure 46).
• Check the filter tissue for deposits on both sides. Replace filter tissue with a new one if
noticeable deposits are found.
• Replace the filter tissue and snap the filter cover back onto the filter body.
• Check to ensure the cover is secured using all four clips.
Figure 44: Removing filter cover
Figure 45: Replacing filter membrane
LED
Lever
