Pall Allegro User Manual

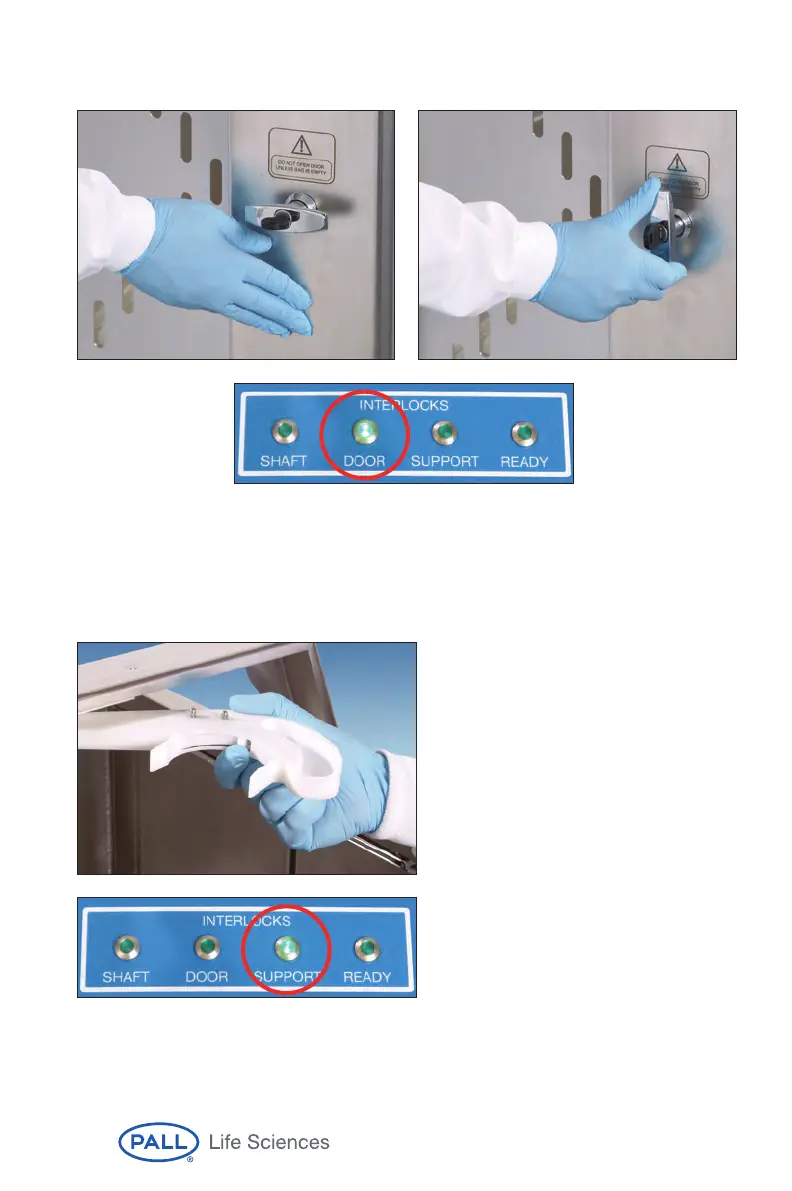

Figure 9
Activating the ‘DOOR’ micro switch by closing the doors
5. Check that the appropriate LED (labelled ‘Door’) on the UCI is illuminated green (Figure 9).
If the ‘DOOR’ LED is not illuminated green at this stage, refer to ‘Troubleshooting’, section 7.
6. Depress the support arm micro switch (Figure 10).
Figure 10
Depressing the support arm micro switch to confirm correct operation prior to system installation
7. Check that the appropriate LED (labelled ‘SUPPORT’) on the UCI is green (Figure 10). If the
‘SUPPORT’ LED is not illuminated green at this stage, refer to ‘Troubleshooting’, section 7.
Assuming correct operation of all safety micro switches, the system is now ready for installation
of the Allegro single-use mixer system.
