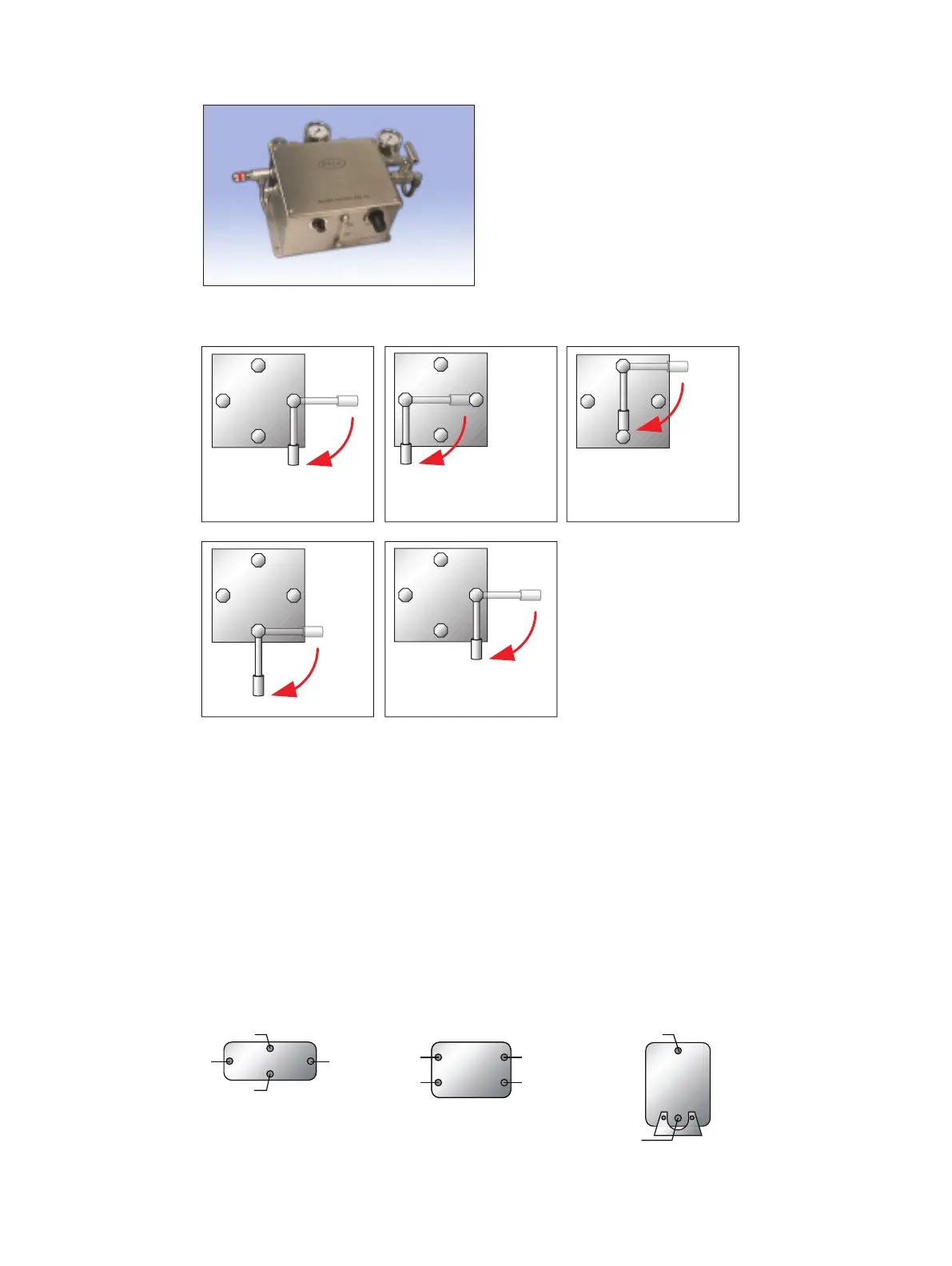

Figure 11
Hydraulic Pump
Figure 12
Example of
1
⁄4-turn Torque Procedure
MT Assemblies
(i) Tighten the nuts firmly by hand.
(ii) Set the calibrated torque wrench (supplied with the cassette holder) to the torque value
you determined in step 2. Refer to the instruction sheet for the wrench for additional
calibration details.
(iii) Using the torque wrench in the sequence displayed in Figure 12 for your holder, tighten each
nut no more than
1
⁄4 turn at a time. For example, tighten the first nut
1
⁄4 turn, and then tighten
the next nut in the sequence
1
⁄4 turn.
Figure 13
Pall Manual-Torque Cassette Holders and Torquing Sequence
www.pall.com/biopharm 15
A Air Pressure Gauge
B Hydraulic Pressure Gauge
C Air Supply Filter
D Bypass Valve
E Pressure Relief Valve
Factory Set
(Do not adjust or remove seal)
F Air Pressure Control Valve (2)
G On/Off Switch (1)
H Sight Tube
A
B
D
C
E
G
H
F
Step 1 Step 2
Step 4 Step 5, etc.
Step 3
¼ turn ¼ turn
¼ turn¼ turn
¼ turn
Centramate LV
Centramate
1
3
4
2
Centrasette LV
Centrasette 5
1
2
Centrasette P
Centrasette 10
34
2
1
