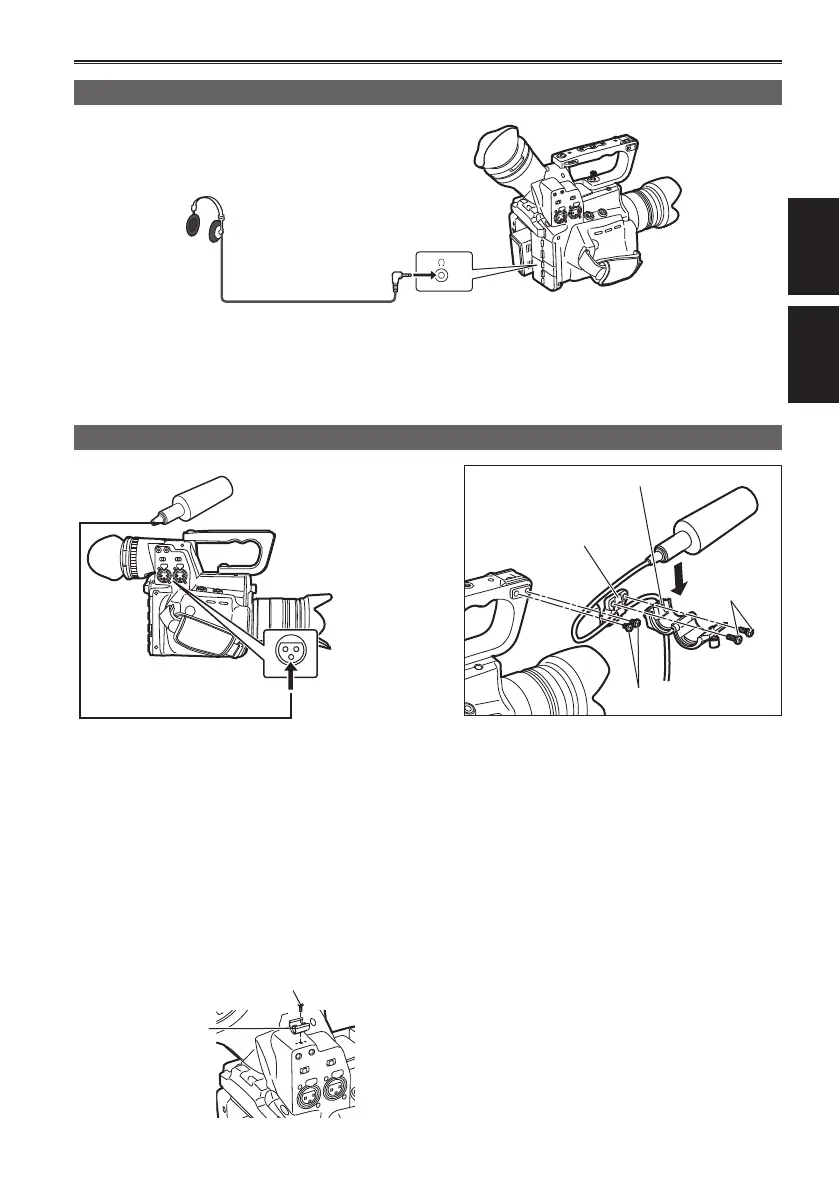

Connecting external units
Headphones
3.5-mm stereo mini jack
Sound is no longer heard from the speaker when the headphones (optional) are connected.•
External microphone
Microphone (optional)
AG-MC200G
NPUT1 or
INPUT2
Microphone holder
Microphone
holder adaptor
6 mm
12 mm
When attaching an external microphone to the microphone shoe, use the supplied microphone holder •
and microphone holder adaptor.
When attaching the microphone holder and the microphone holder adaptor, be sure to tighten the screws •
firmly even though you might hear a squeaking sound.
The microphone holder mounting position is provided at two locations, namely in the handle and on •
top of the INPUT 1 and INPUT 2 terminals. If the microphone holder is mounted on the handle, the
microphone may be captured if a wide-angle lens is used. Select the mounting location after checking
the images.
When wiring the microphone cable, use either the cable clamper of the microphone holder adaptor, or •
the included cable clamper.
Cable clamper
4 mm
