Description of parts

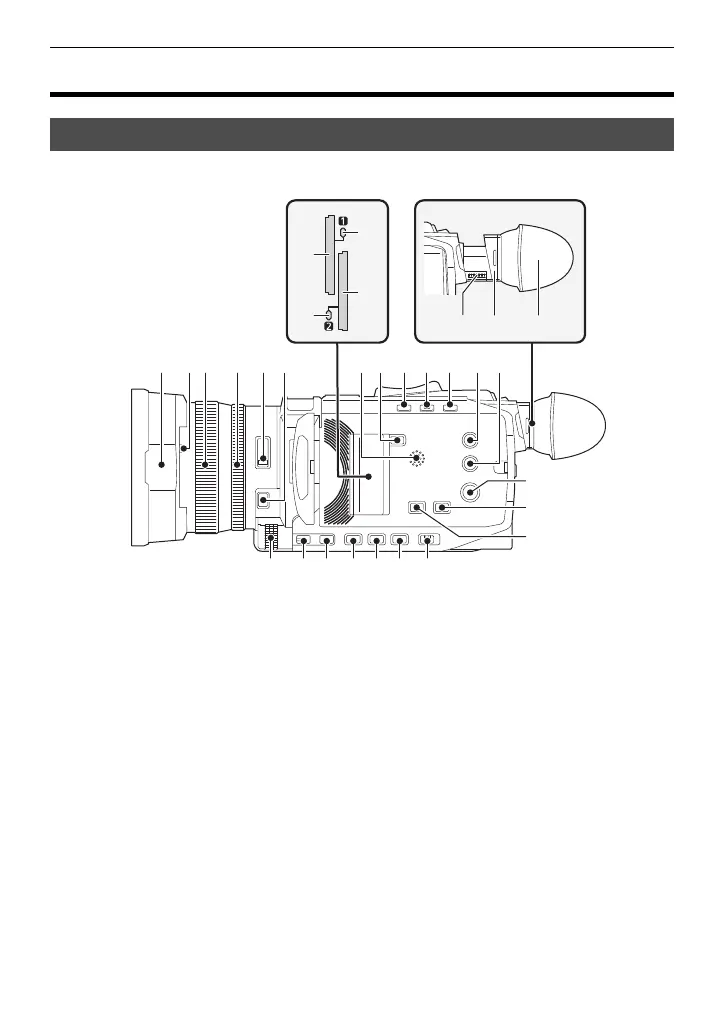

Main unit
≥ The illustrations in this document show the handle unit (supplied) removed.
1 Lens hood
2 Lens cover switching lever
Opens/closes the lens cover.
3 Focus ring (l 50)
When the <FOCUS A/M/¶> button is
pressed to set to manual focus mode
([MF]) you can focus manually.
4 Rear ring (l 49)
You can manually perform zoom
operations, adjust the iris (the lens stop),
and adjust the AE level (exposure
compensation).
≥You can switch the function to be
adjusted by setting with the menu,
pressing the USER button assigned to
[REAR RING], or touching the USER
button icon.
5 <ND FILTER> switch
Selects the ND filter to suit the
illumination of the subject.
<1/64>:
Reduces the amount of light entering the
MOS sensor to 1/64.
<1/16>:
Reduces the amount of light entering the
MOS sensor to 1/16.
<1/4>:
Reduces the amount of light entering the
MOS sensor to 1/4.
<CLR>:
Does not use the ND filter.
6 <FOCUS A/M/¶> button (l 50)
Select the focus function.
