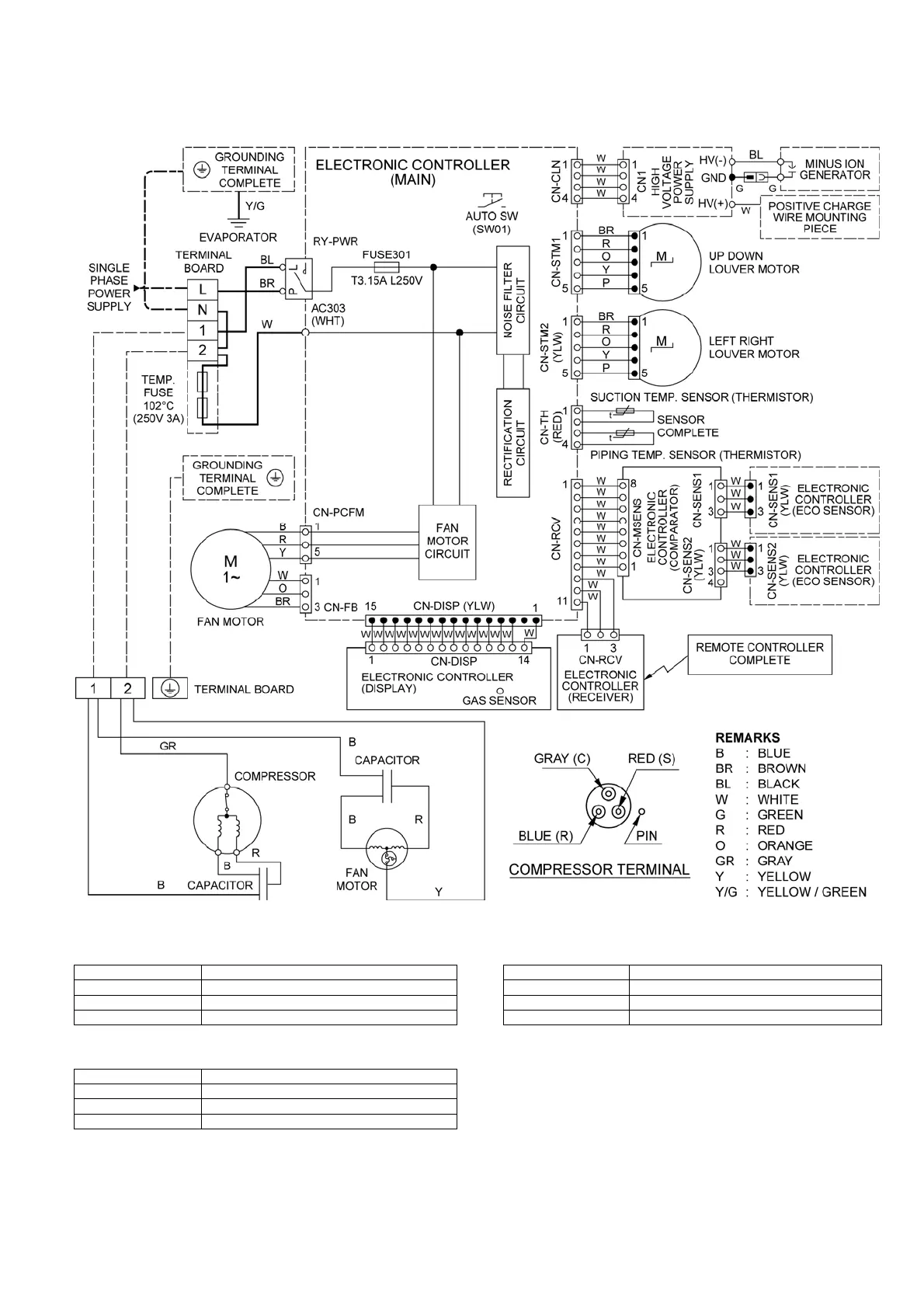

8. Wiring Connection Diagram
8.1 CS-C12MKF CU-C12MKF
Resistance of Indoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CS-C12MKF MODEL CU-C12MKF
CONNECTION CWA921434 CONNECTION 2KS210D5AA06
BLUE-YELLOW 351.3Ω C-R 2.279Ω
YELLOW-RED 343.9Ω C-S 3.526Ω
Note: Resistance at 25°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-C12MKF
CONNECTION CWA951676
BLUE-YELLOW 198Ω
YELLOW-RED 293Ω
Note: Resistance at 20°C of ambient temperature.
