Panasonic CS-C12MKF - CS-C28 MKF; CU-C28 MKF Wiring

22

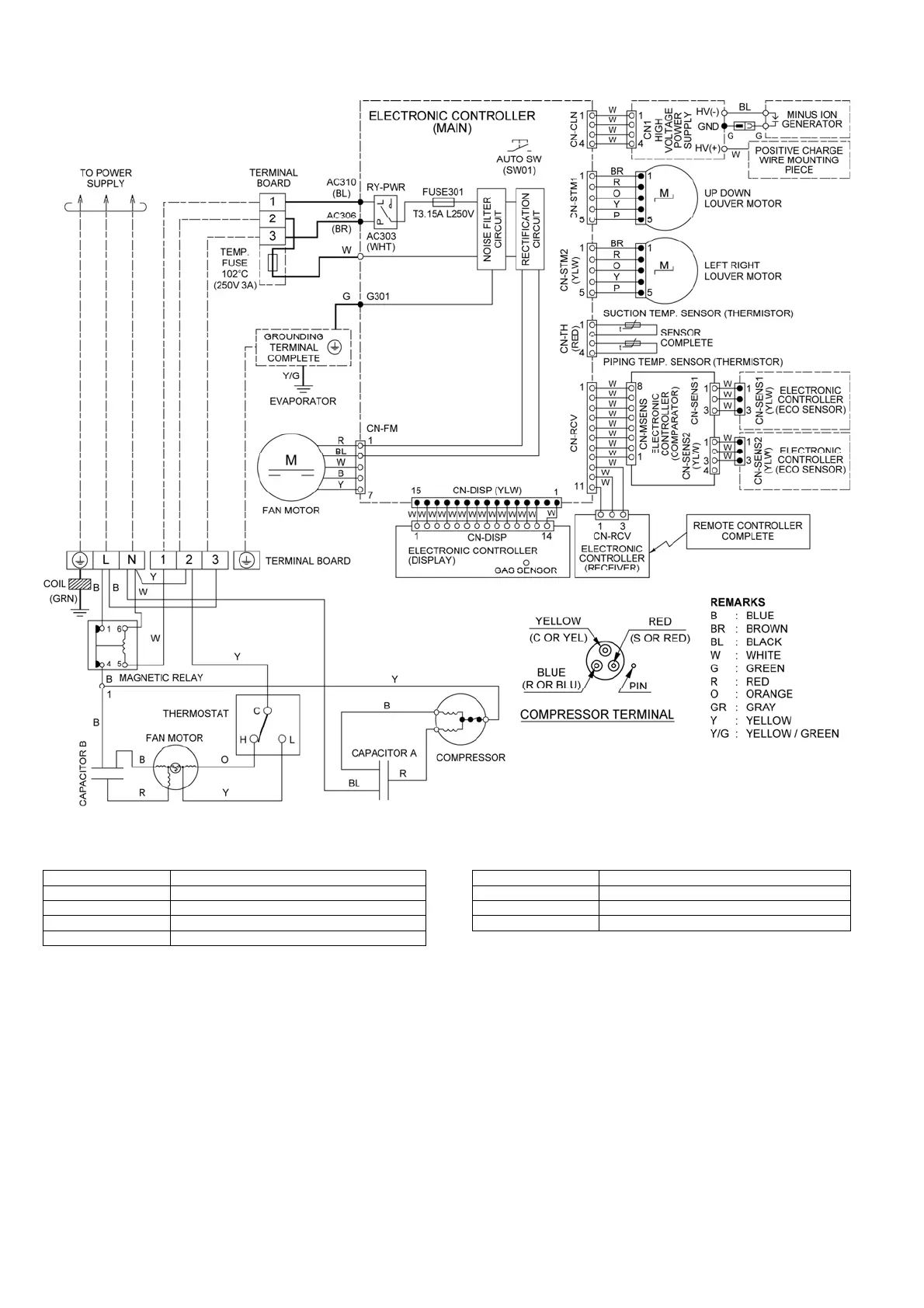

8.4 CS-C28MKF CU-C28MKF
Resistance of Outdoor Fan Motor Windings Resistance of Compressor Windings
MODEL CU-C28MKF MODEL CU-C28MKF
CONNECTION CWA951689 CONNECTION 2JD514D3AA03
BLUE-YELLOW 64Ω C-R 0.708Ω
YELLOW-ORANGE 90Ω C-S 1.985Ω
YELLOW-RED 55Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 20°C of ambient temperature.
