20

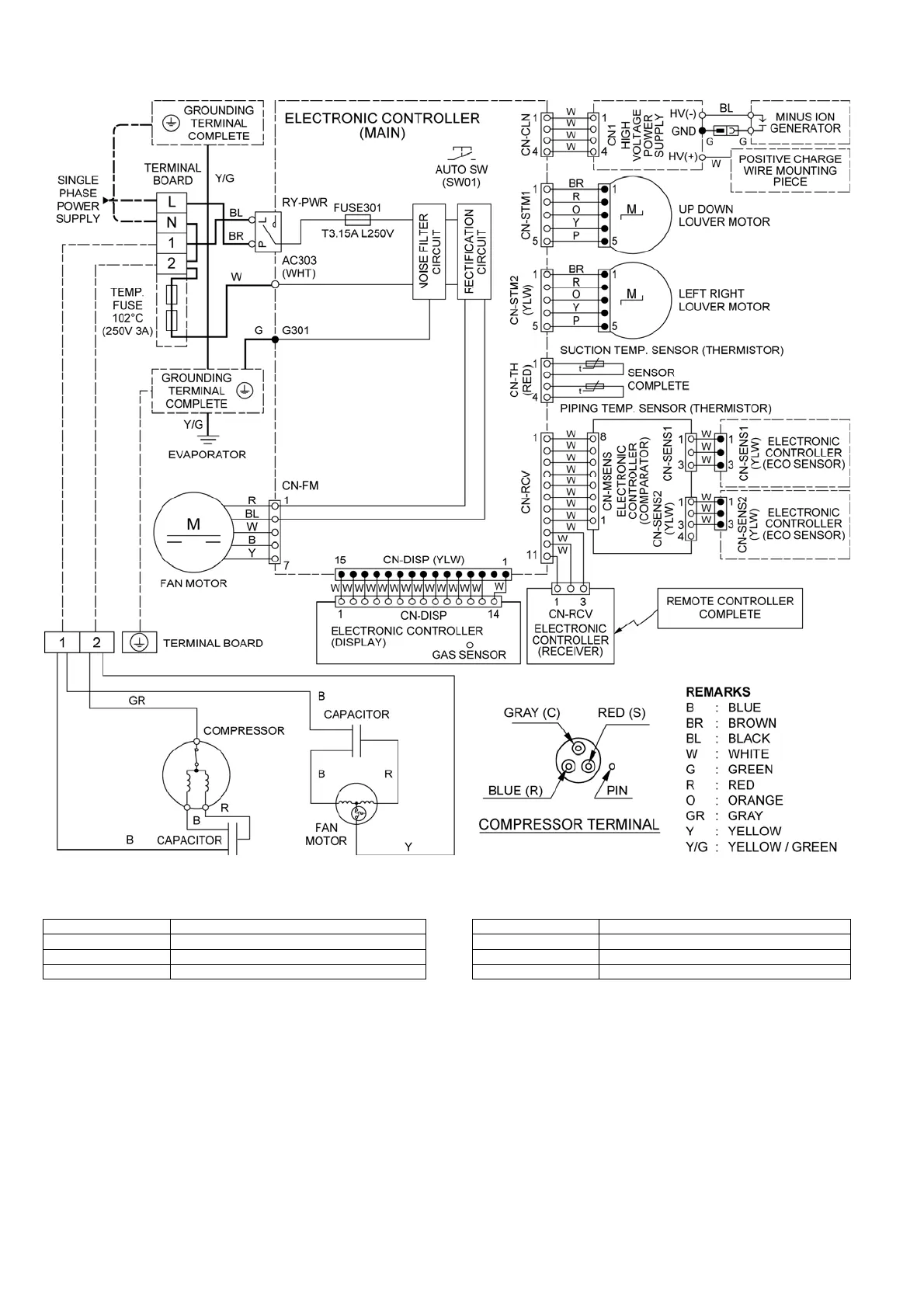

8.2 CS-C18MKF CU-C18MKF
Resistance of Outdoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CU-C18MKF MODEL CU-C18MKF
CONNECTION CWA951676 CONNECTION 2KS324D5BB06
BLUE-YELLOW 198Ω C-R 1.453Ω
YELLOW-RED 293Ω C-S 3.151Ω
Note: Resistance at 20°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
