WARNING
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged sufficiently before proceeding with
repair work. Failure to heed this caution may result in electric shocks.
17.3 CS-C28MKF
17.3.1 Indoor Electronic Controllers, Cross Flow Fan and Indoor Fan Motor Removal
Procedures

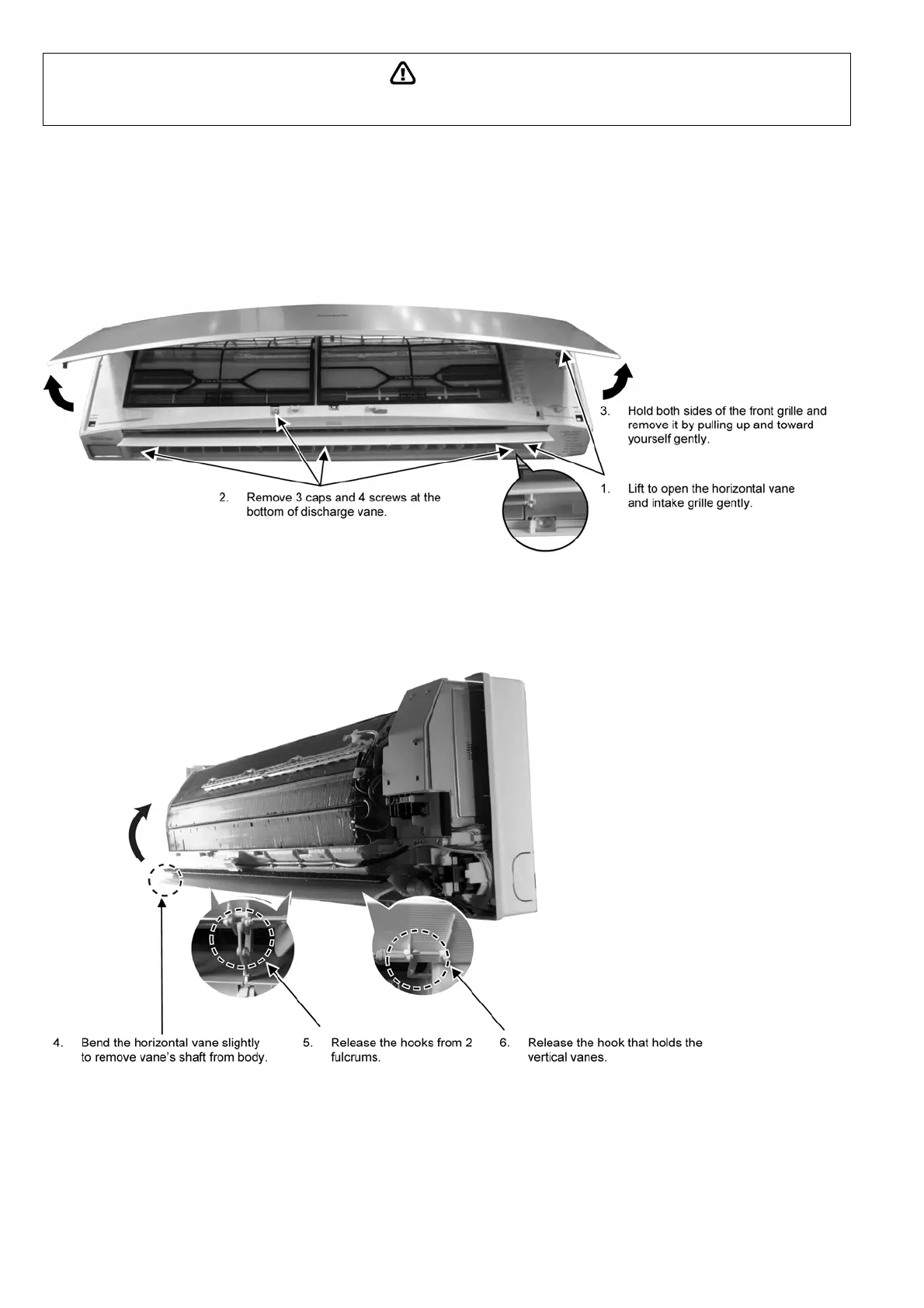

17.3.1.1 To remove front grille
Figure 22
17.3.1.2 To remove horizontal vane
Figure 23
To Next Page
