13.7 Horizontal Airflow Direction Control
13.7.1 Auto Control

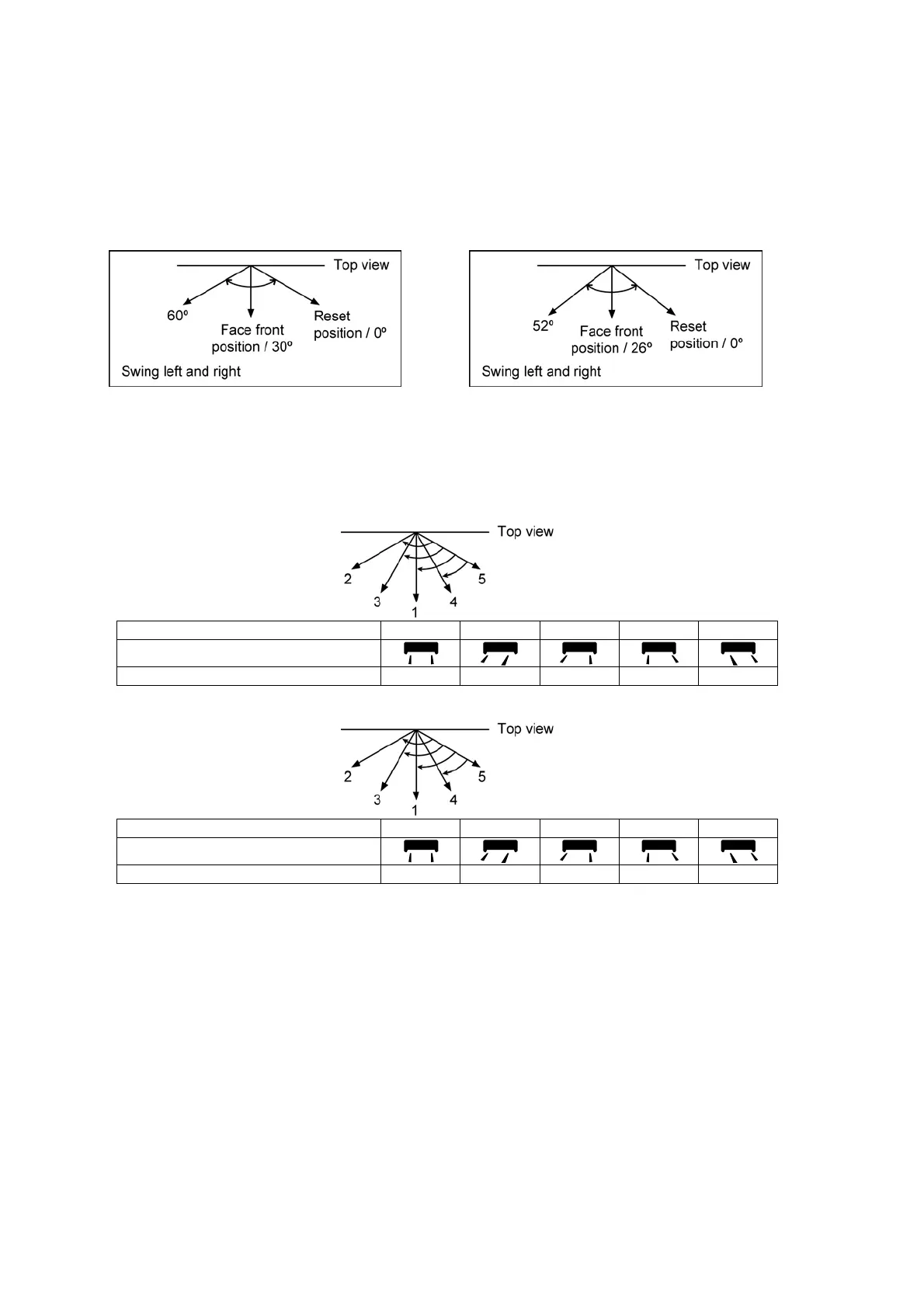

• When the horizontal airflow is set to Auto using the remote control, the vanes swings left and right as shown in
the diagram.
• When stopped with remote control, the discharge vanes are reset and stop at the reset position.
• During Cooling operation or Soft Dry operation, indoor fan motor may stop to rotate at certain periods. At that
condition, the vane will stop swinging and rest at face front position.
For CS-C12MK For CS-C18MK, CS-C24MK and CS-C28MK
13.7.2 Manual Control
• When the horizontal airflow direction is set to Manual using the remote control, the automatic airflow is released
and the airflow direction vane move left and right in the range shown in the diagram.
• The louver can be adjusted by pressing the button to the desired vane position.
• When stopped with remote control, the vanes is reset and stopped at reset position.
For CS-C12MK
Pattern 1 2 3 4 5
Airflow Direction Patterns of Remote Control
Vane Angle (°) 30° 60° 45° 15° 0°
For CS-C18MK, CS-C24MK and CS-C28MK
Pattern 1 2 3 4 5
Airflow Direction Patterns of Remote Control
Vane Angle (°) 26° 52° 39° 13° 0°
13.8 Powerful Operation
• To achieve the setting temperature quickly.
• When powerful operation is set, the setting temperature will be automatically decreased 3°C internally against
the present setting temperature (Lower temperature limit: 16°C).
• This operation automatically running under Shi fan speed (Cooling), Lo- Fan Speed (Soft Dry) is applicable for
C12MK only.
• Vertical Airflow Direction:
o In “Manual” setting, the vane will automatically shift down 10° lower than previous setting.
o In “Auto” setting, the vane will automatically swing up and down. However the lower limit will be shifted 10°
downward.
• Powerful operation stops when:
o Powerful/Quiet button is pressed again
o Powerful operation has operate for 15 minutes
o Stopped by OFF/ON operation button.
o Timer OFF activates
o Operation mode is changed
