Panasonic CS-C12MKF - CS-C24 MKF; CU-C24 MKF Wiring

21

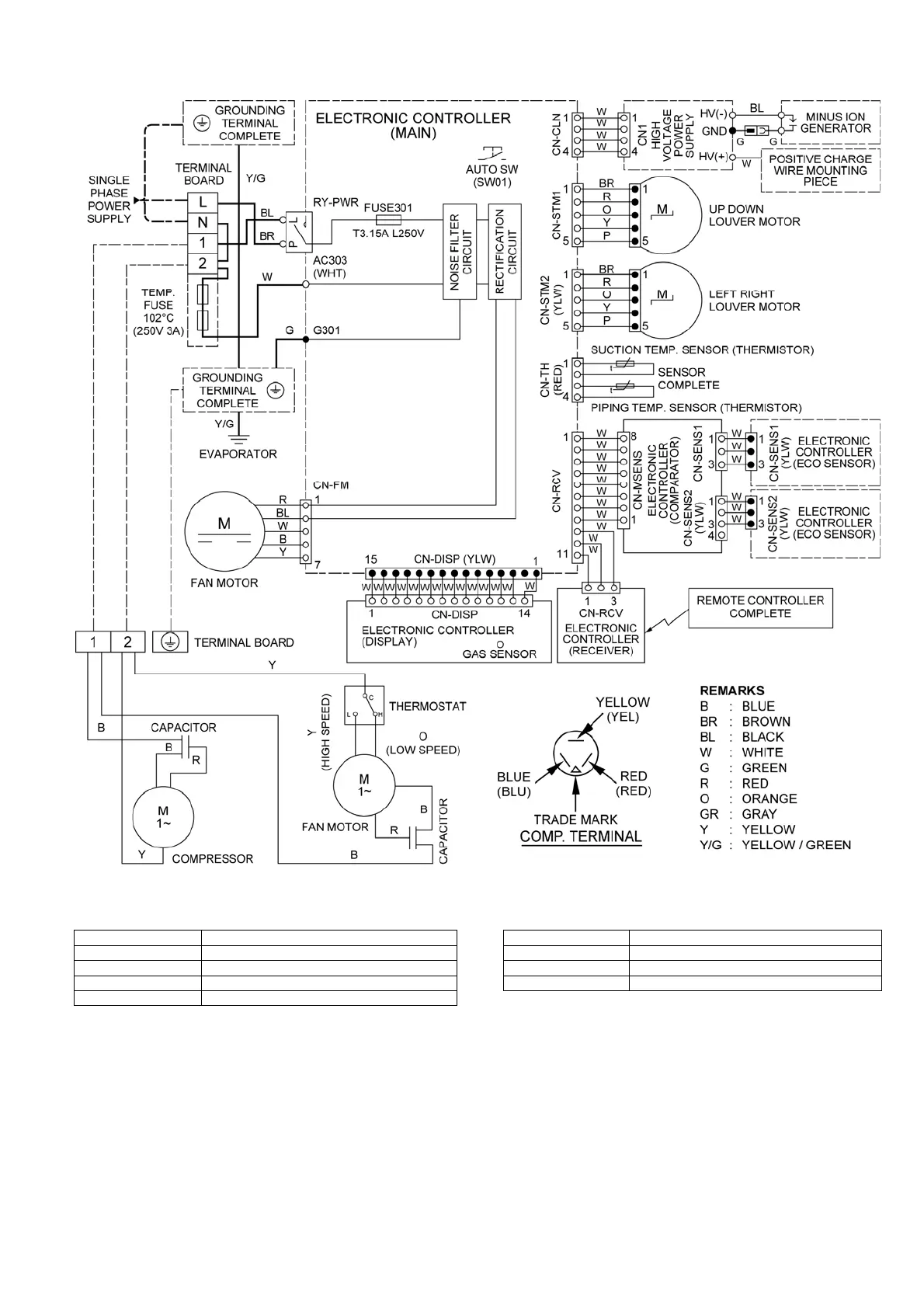

8.3 CS-C24MKF CU-C24MKF
Resistance of Outdoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CU-C24MKF MODEL CU-C24MKF
CONNECTION CWA951689 CONNECTION 2JS438D3CB04
BLUE-YELLOW 64Ω C-R 1.121Ω
YELLOW-ORANGE 90Ω C-S 2.535Ω
YELLOW-RED 55Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 20°C of ambient temperature.
