Cross Flow Fan Removal Procedure.
1. Remove the control board and the fan motor by referring
to the “Indoor Fan Motor Removal Procedure”.
2. Remove the evaporator screw. (Fig. 6)
3. Press the particular piece to loosen the evaporator. (Fig.
7)
4. Remove the bearing. (Fig. 7)
5. Push up the evaporator and take out the cross-flow Fan.
(Fig. 7)

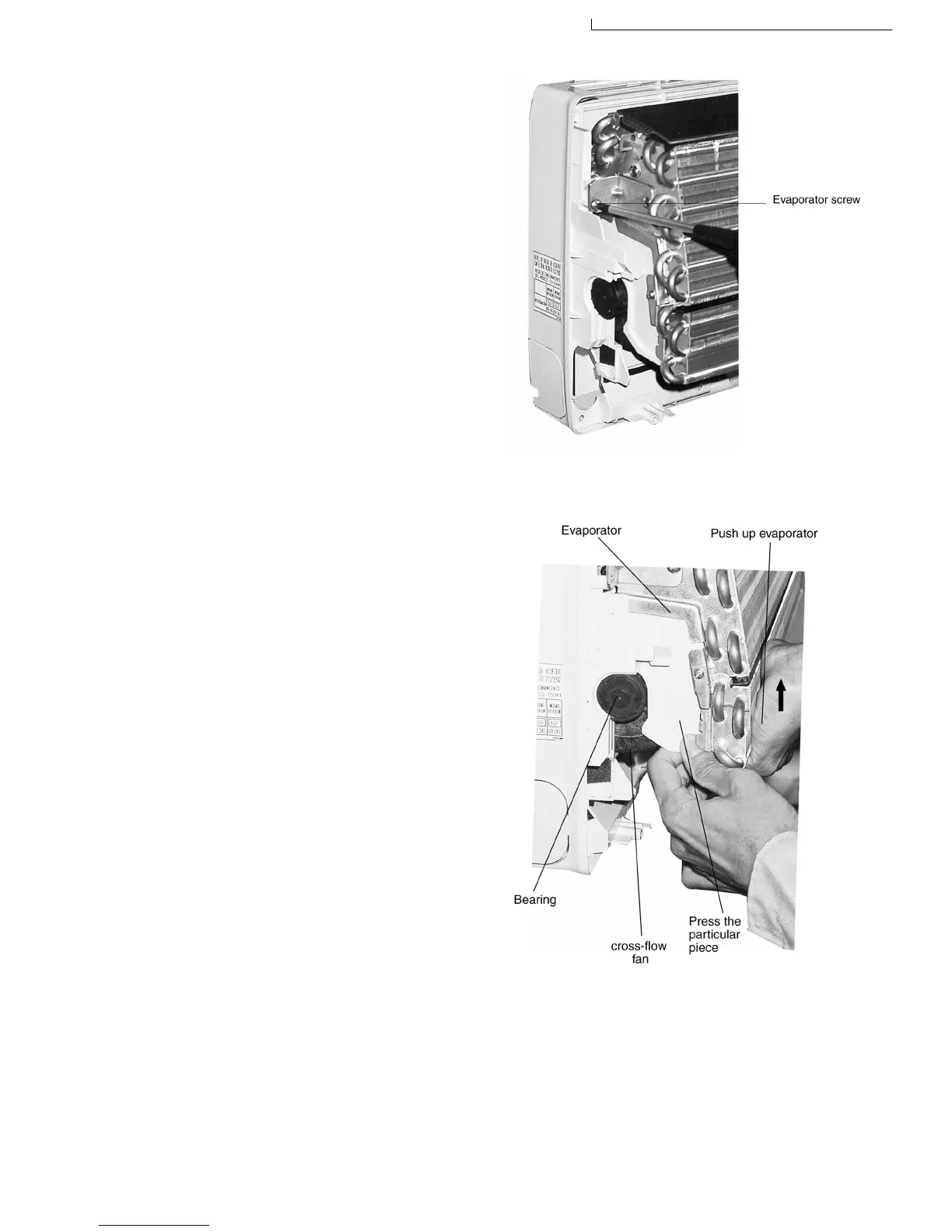

Fig. 6
Fig. 7
