Panasonic CS-C9KKV Service Manual

21

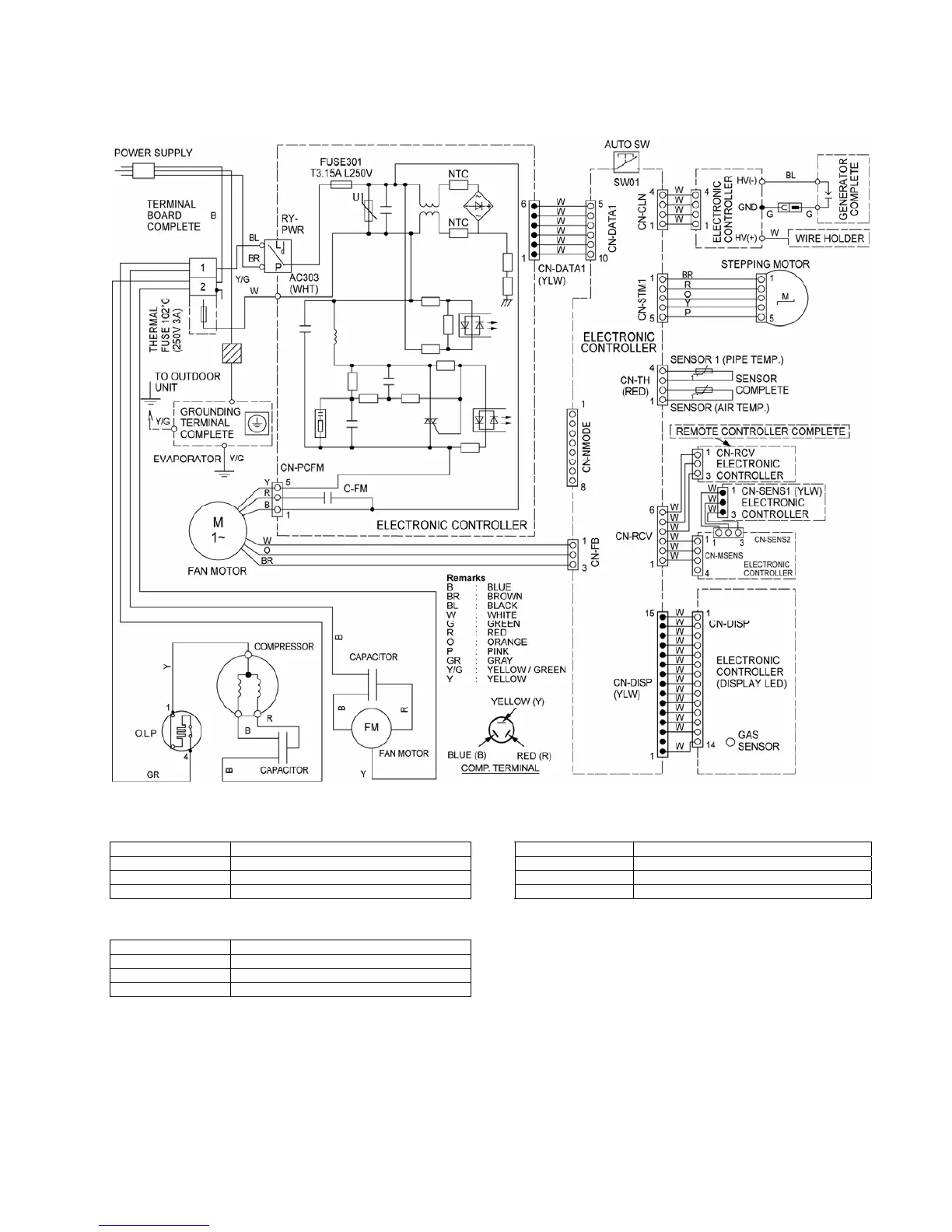

8. Wiring Connection Diagram
8.1 CS-C9KKV CU-C9KKV
Resistance of Indoor Fan Motor Windings Resistance of Compressor Windings
MODEL CS-C9KKV MODEL CU-C9KKV
CONNECTION CWA921420 CONNECTION 2R13C236BSC
BLUE-YELLOW 192Ω C-R 3.298Ω
YELLOW-RED 226Ω C-S 5.500Ω
Note: Resistance at 25°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-C9KKV
CONNECTION CWA951562
BLUE-YELLOW 307.4Ω
YELLOW-RED 202.4Ω
Note: Resistance at 20°C of ambient temperature.
