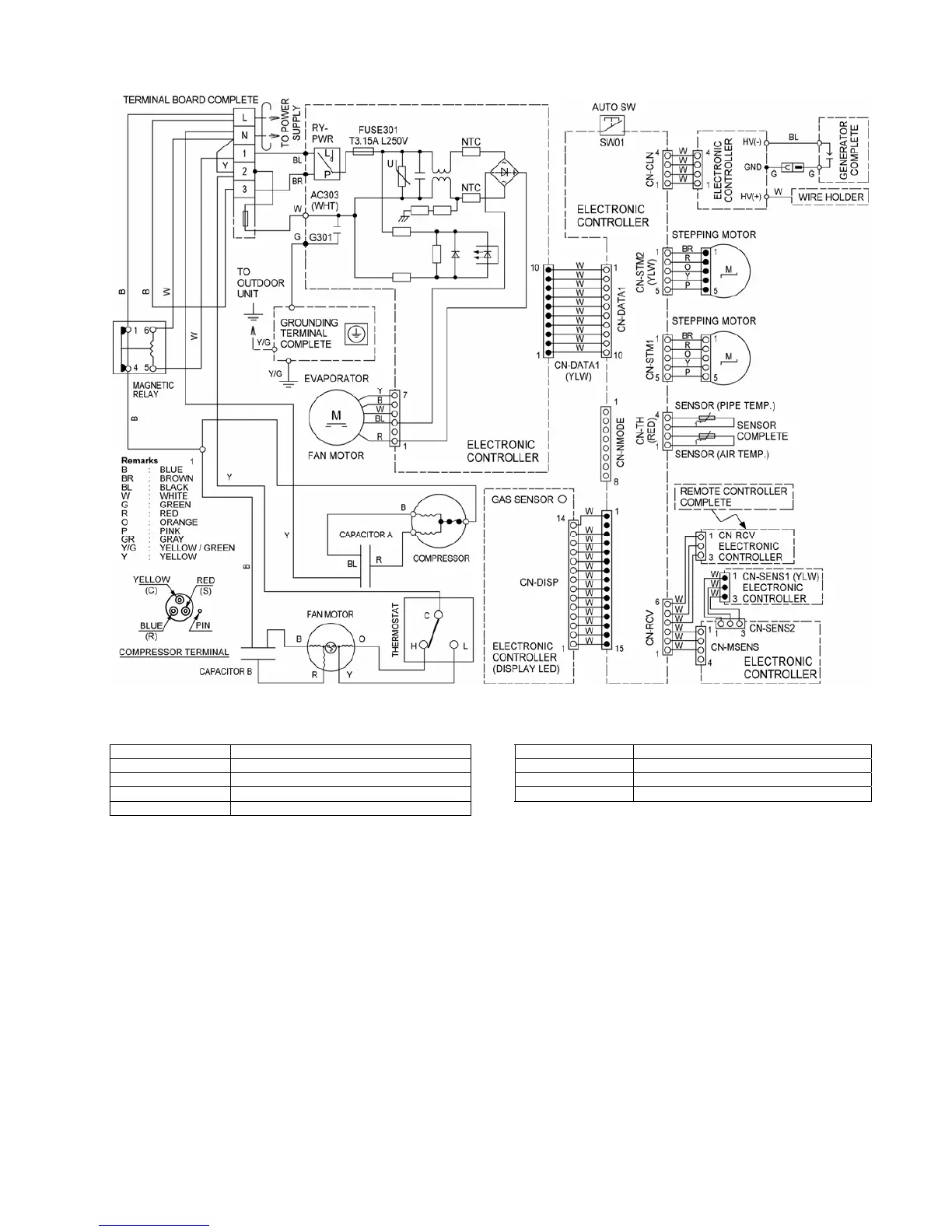

8.5 CS-C28KKV CU-C28KKV
Resistance of Outdoor Fan Motor Windings
Resistance of Compressor Windings
MODEL CU-C28KK MODEL CU-C28KK
CONNECTION CWA951357 CONNECTION 2JD488H3AA03
YELLOW-BLUE 59.8Ω C-R 0.624Ω
YELLOW-ORANGE 68.6Ω C-S 1.821Ω
YELLOW-RED 66.9Ω Note: Resistance at 20°C of ambient temperature.
Note: Resistance at 20°C of ambient temperature.
