Panasonic CS-C9KKV Service Manual

22

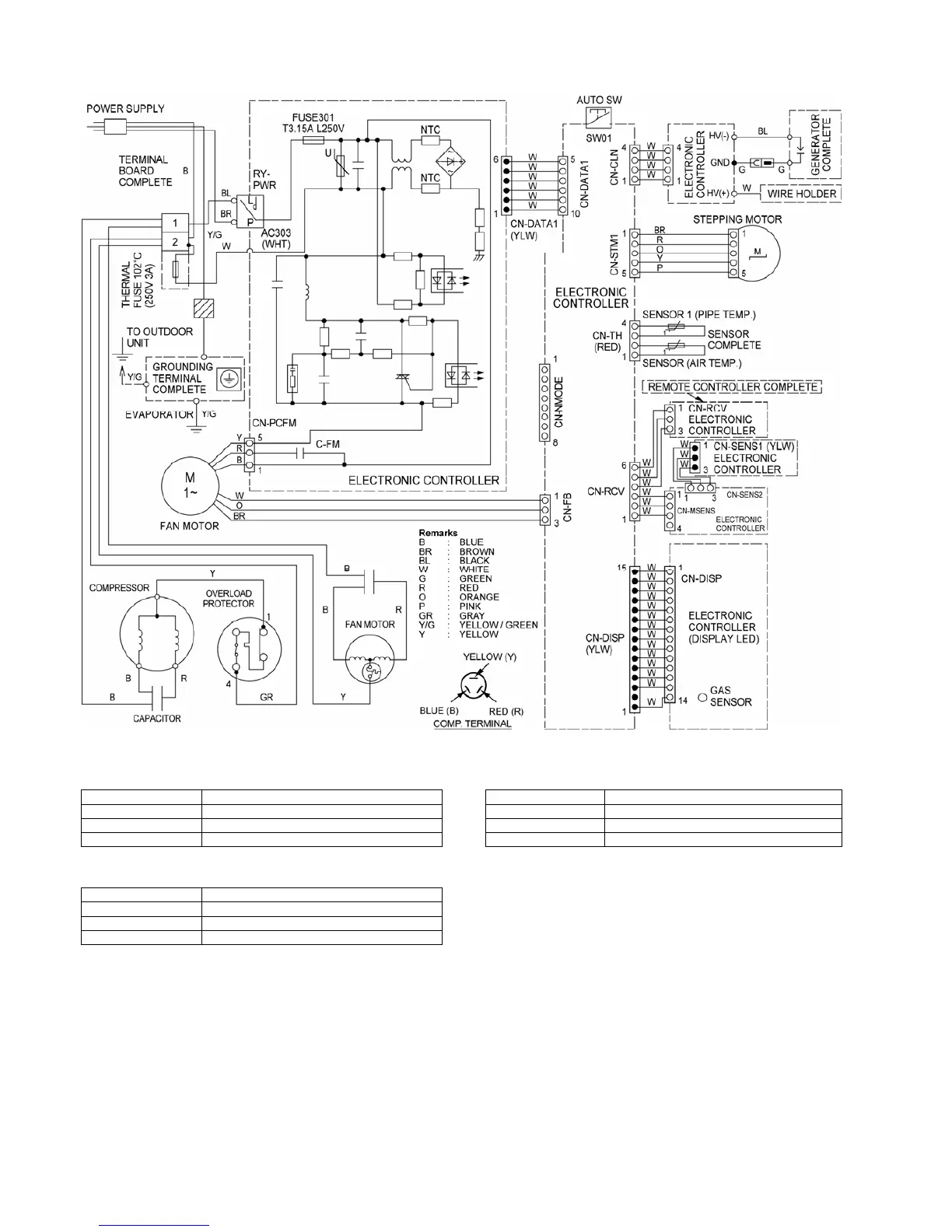

8.2 CS-C12KKV CU-C12KKV
Resistance of Indoor Fan Motor Windings Resistance of Compressor Windings
MODEL CS-C12KKV MODEL CU-C12KKV
CONNECTION CWA921420 CONNECTION 2P19S236A1L
BLUE-YELLOW 192Ω C-R 2.237Ω
YELLOW-RED 226Ω C-S 2.710Ω
Note: Resistance at 25°C of ambient temperature. Note: Resistance at 20°C of ambient temperature.
Resistance of Outdoor Fan Motor Windings
MODEL CU-C12KKV
CONNECTION CWA951329J
BLUE-YELLOW 258.3Ω
YELLOW-RED 245.9Ω
Note: Resistance at 20°C of ambient temperature.
