Panasonic CS-C9KKV - Outdoor Fan Speed Control; Vertical Airflow Direction Control

52

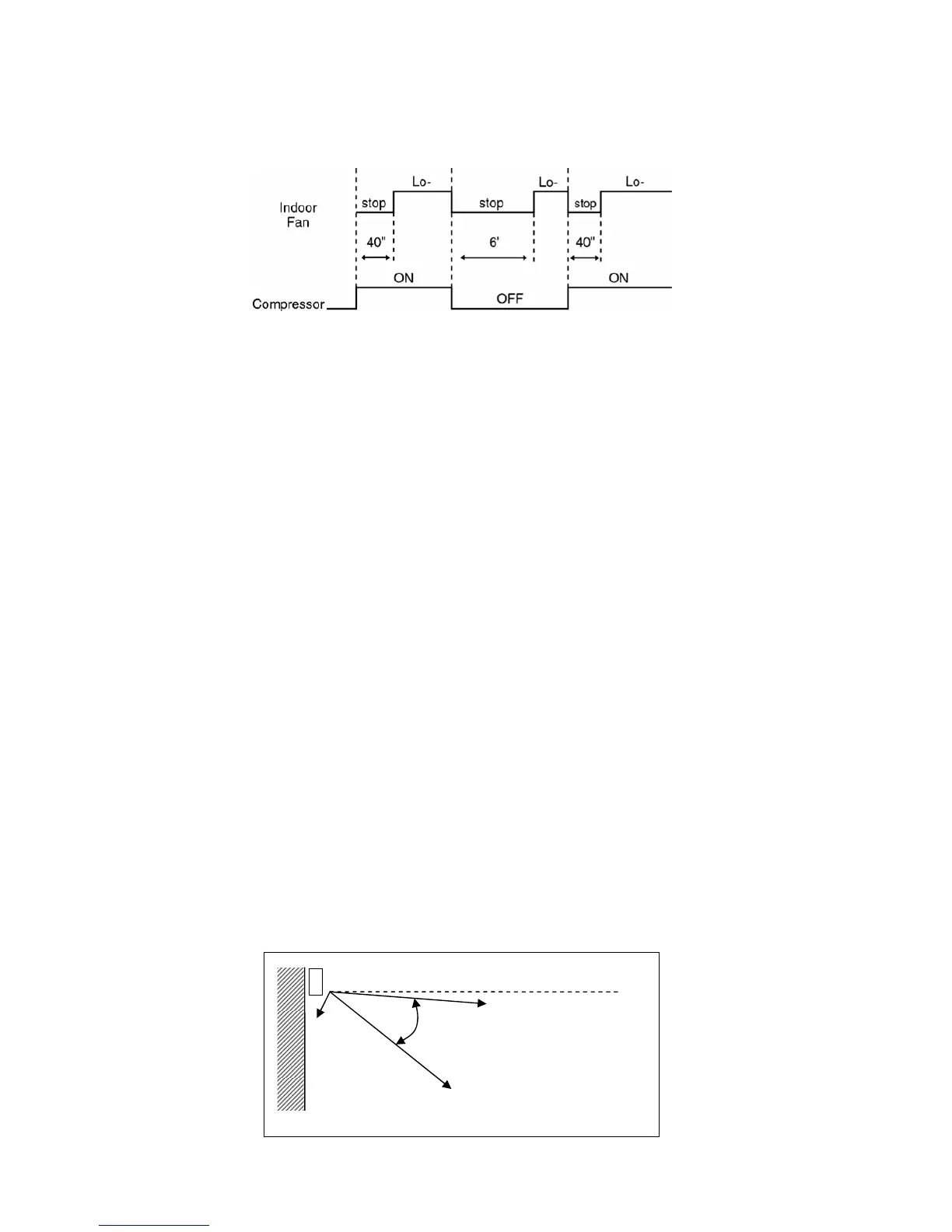

• Auto Fan Speed during Soft Dry operation.
1 Indoor fan will rotate alternately between off and Lo-.
2 At the beginning of each compressor starts operation, indoor fan will increase fan speed gradually for
deodorizing purpose.
3 When compressor turned off for 6 minutes, indoor fan will start at Lo- to circulate the air in the room. This is
to obtain the actual reading of intake air temperature.
12.4.3 Manual Fan Speed Control
• Manual fan speed adjustment can be carried out by using the Fan Speed selection button at the remote control.
• There are 3 types of fan speed settings: Lo, Me, Hi.
12.4.4 Indoor Fan Motor rpm Abnormal Control
• Immediate after the fan motor is started, rpm abnormal control is performed every second.
• During fan motor on, if fan motor feedback ≥ 2550 rpm or < 50 rpm continuously for 10 seconds, the fan motor
error counter increased; fan motor is then stopped and restarted. If the fan motor error counter increased to 7,
then air conditioner will stop operation.
12.5 Outdoor Fan Speed Control
• There is only one speed for outdoor fan motor. (Applicable for CU-C9KK, CU-C12KK and CU-C18KK)
• There is 2 speeds for outdoor fan motor. Outdoor fan speed can be changed to Hi or Lo according to outdoor
temperature. (Applicable for CU-C24KK and CU-C28KK).
• For Cooling and Soft Dry operation, when outdoor temperature reaches to 31°C (Hi-speed), 29°C (Lo-speed).
(Applicable for CU-C24KK and CU-C28KK).
• When air conditioner is turned on, the compressor and the outdoor fan will operate simultaneously.
• Likewise, both compressor and outdoor fan will stop at the same time if the unit is turned off.
12.6 Vertical Airflow Direction Control
12.6.1 Auto Control
• When the vertical airflow direction is set to Auto using the remote control, the louver swings up and down as
shown in the diagram.
• When stops operation using the remote control, the discharge vent is reset and stops at the closing position.
• During Cooling operation or Soft Dry operation, indoor fan motor may stop to rotate at certain periods. At that
condition, the louver will stop swinging.
For CS-C9KK and CS-C12KK
Upper limit for cooling mode
and soft dry mode/11°
22°
Closing
position
/ 135°
Swing up and down
Lower limit for cooling mode and
soft dry mode/33°
Horizontal
