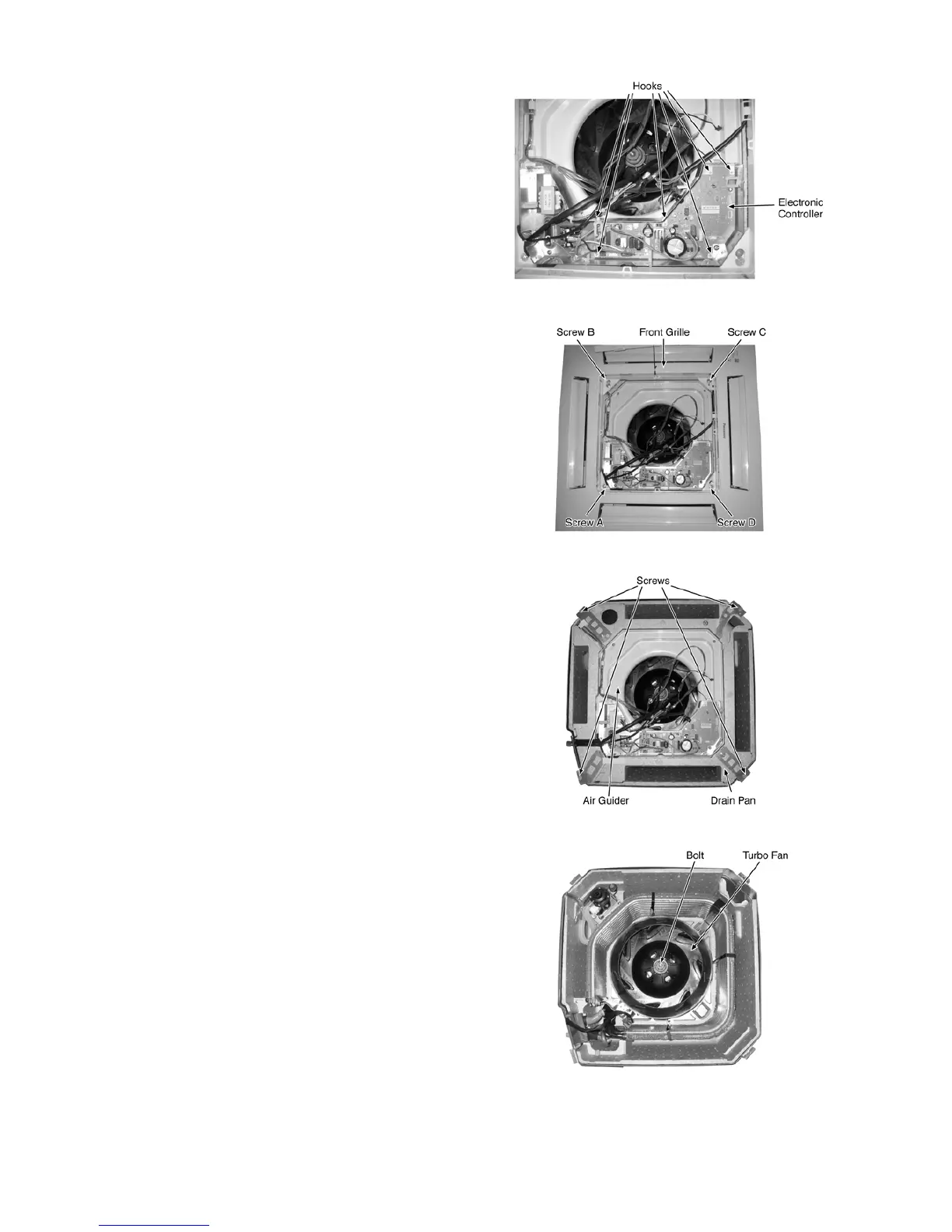

4. To remove the Electronic Controller, release the 6 hooks
that hold it to the Control Board (Fig. 4).
5. Remove the Front Grille by removing the screw A and
screws B, C & D half way open (Fig. 5).
6. Remove the Air Guider and Drain Pan complete by
removing the screws (Fig. 6).
7. Remove the Turbo Fan by removing the bolt (Fig. 7).
Fig. 4
Fig. 5
Fig. 6
Fig. 7
