8. Remove the Fan Motor by release the Fan Motor lead
wire connectors and Fan Motor screws (Fig. 8).

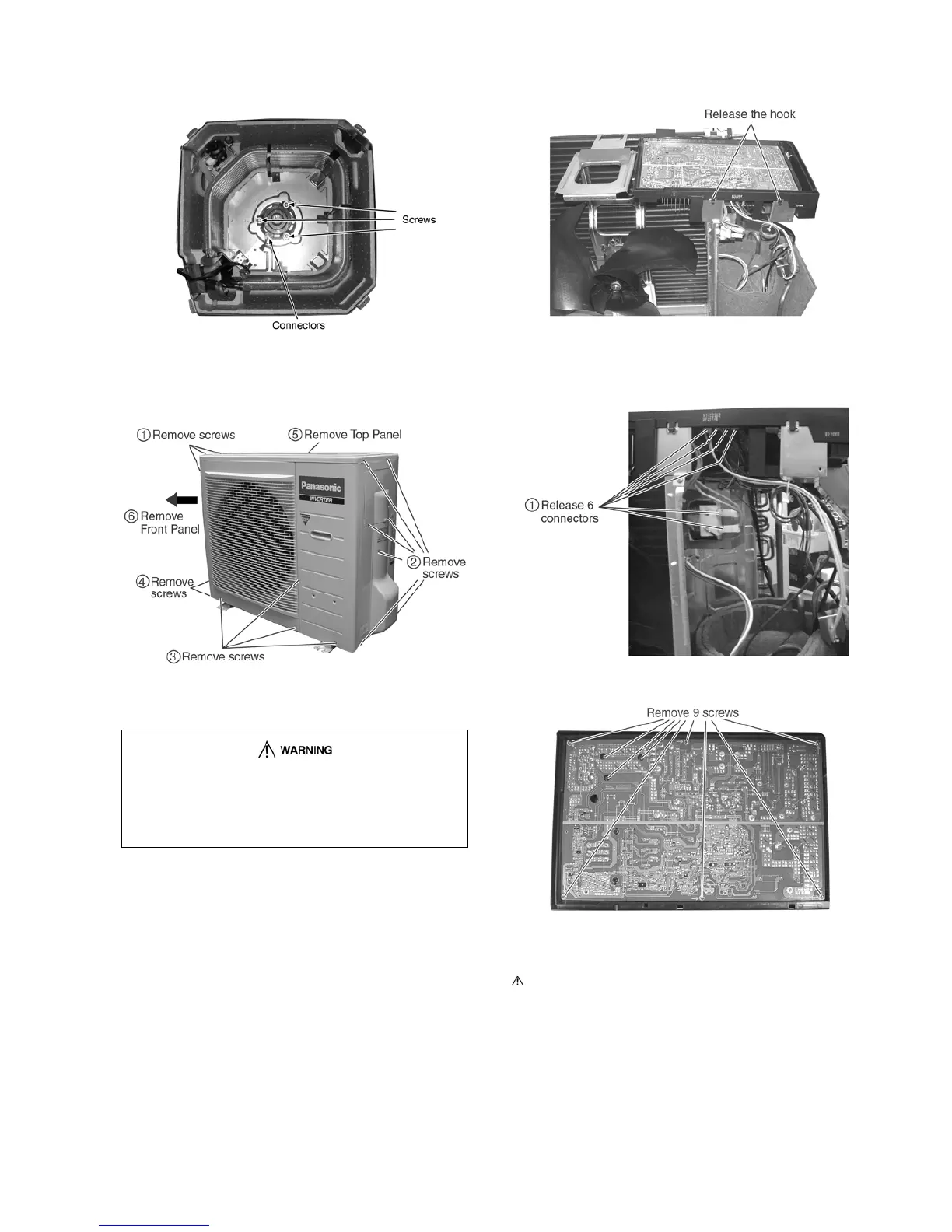

Fig. 8
Outdoor Electronic Controller Removal Procedure
1. Remove the top panel and front panel
Fig. 9
2. Remove the Outdoor Electronic Controller
Fig. 10
Fig. 11
Fig. 12
• Be save to return the wiring to its original position
• There are many high voltage components within the heat sink
cover so never touch the interior during operation. Wait at
least two minutes after power has been turned off.
Caution! When handling electronic controller, be careful of
electrostatic discharge.
