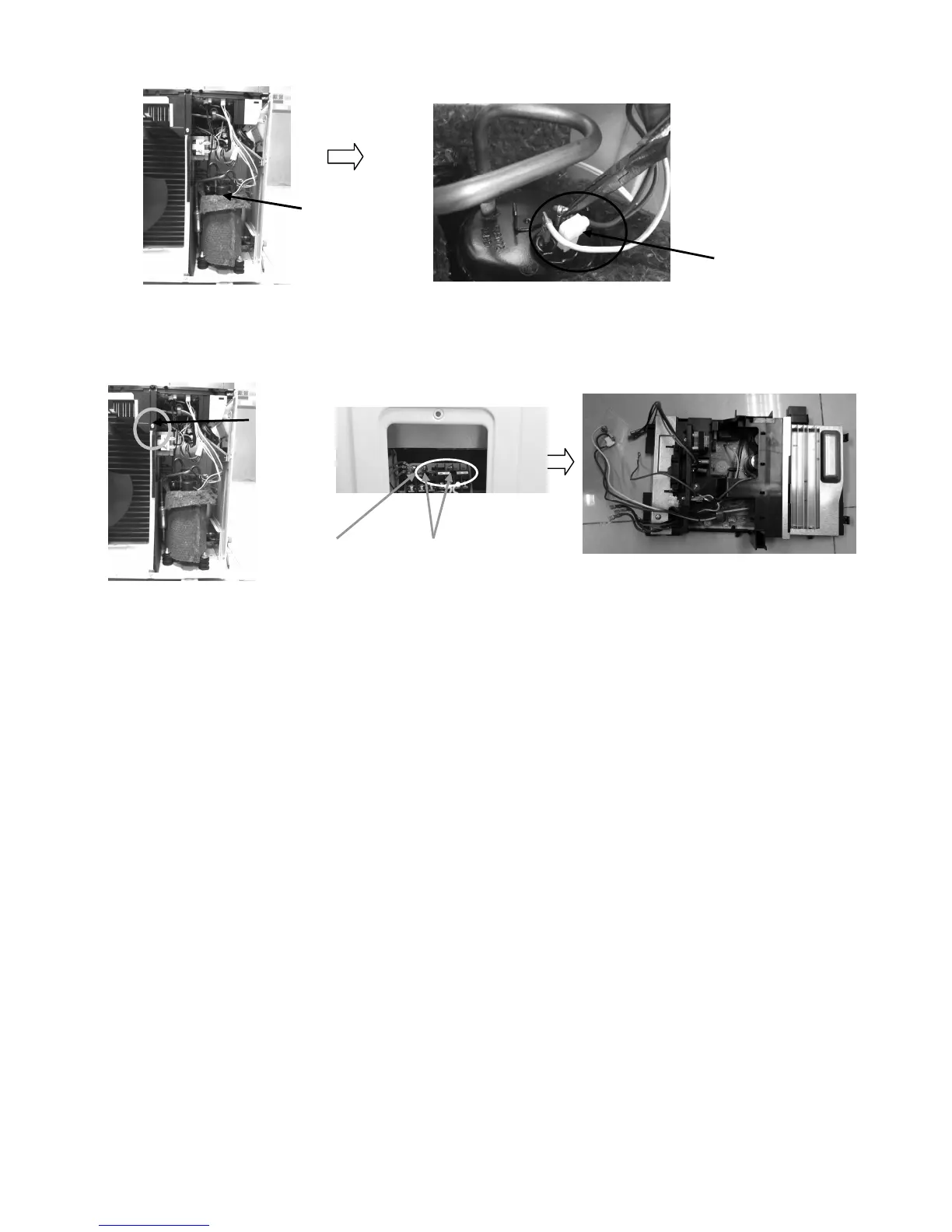

5. Take of the compressor terminal cover. Disconnect the wire from the compressor terminal.
6. Release the c-box screw fixing on sound prevention board, and two screws fixing on terminal supporting board,
and the earth wire fixing screw. Be aware to hold the c-box complete to avoid falling after all screws are released.
Then the c-box can be taken out.
Terminal
cover for
compressor
Screw on
sound
prevention
board
Terminal
connectors
Screws on terminal
supporting board
Earth wire screw
