15. Disassembly and Assembly Instructions
High Voltage is generated in the electrical parts area by the capacitor. Ensure that the capacitor has discharged
sufficiently before proceeding with repair work. Failure to heed this caution may result in electric shocks.
15.1 Indoor unit

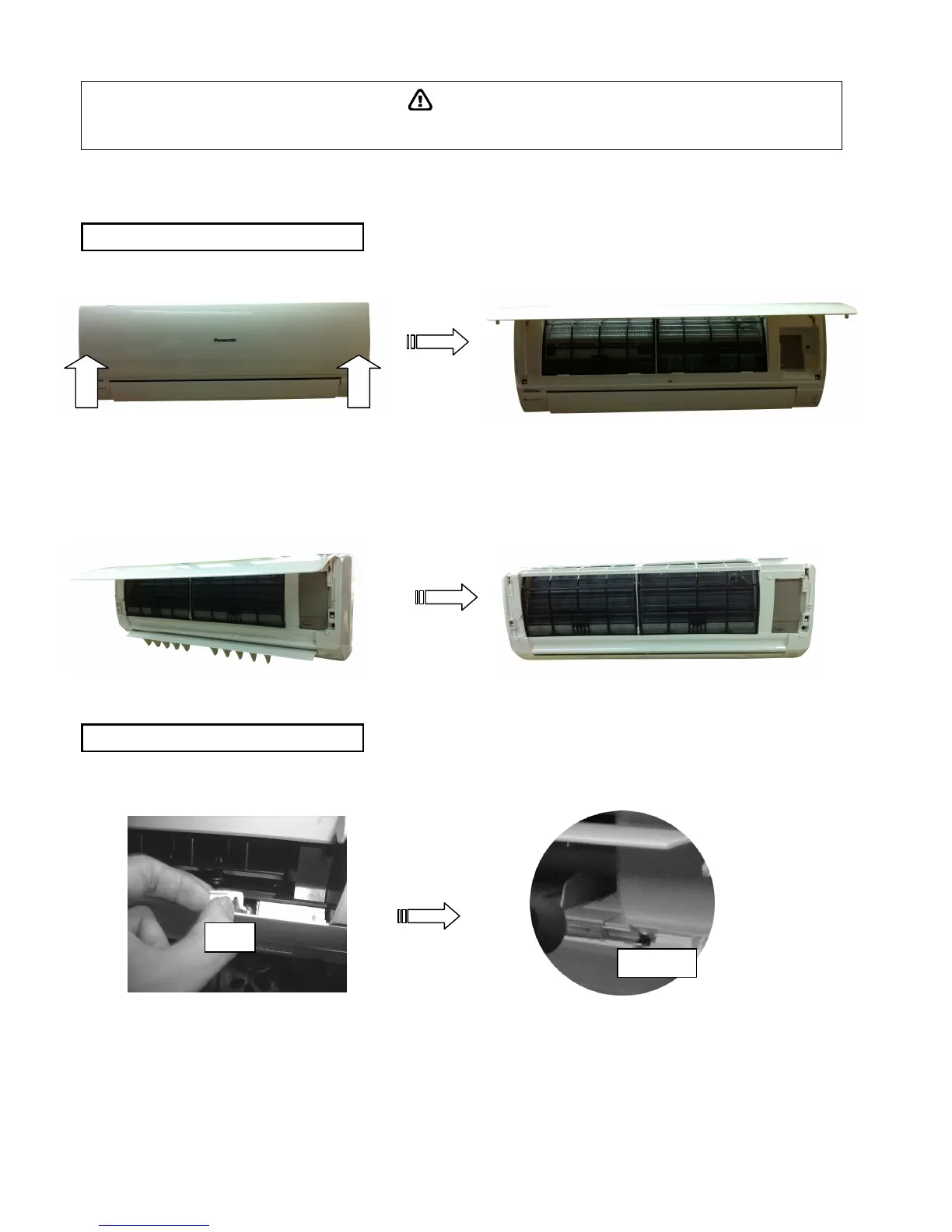

1. Open the intake grille and pull it to the horizontal position.
2. Pull up the intake grille until it falls off.
1. Remove the two caps at the discharge port (right and left) and then release the two screws on both sides.
2. Pull out the front grille form the unit body.
To Next Page
