Panasonic CS-V12CTP Service Manual

1 Functions
MODE SLEEP
F
A
N
S
P
E
E
D
RESET
TIMER
A
U
T
O
M
A
N
U
A
L
A
U
T
AUT
O
H
E
A
HEA
T
C
O
O
L
COOL
D
R
DR
Y
FAN
AN
SPEED
SPEED
H
H
OFF
OFF
ON
ON
A
B
A
B
TEMP
OFF/ON
AIR SWING
S
E
L
E
C
T
S
E
T
/C
A
N
C
E
L

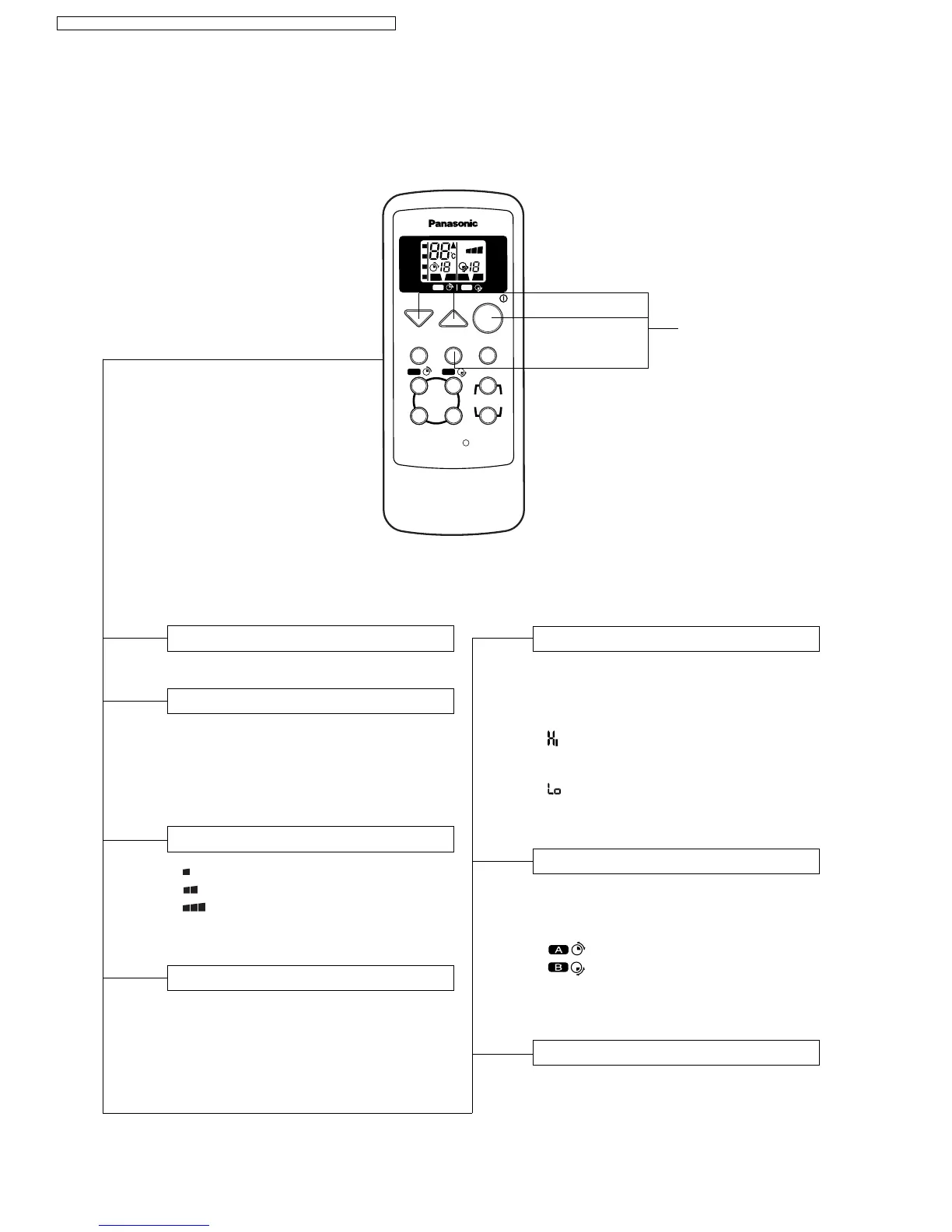

Remote Control
Operation OFF / ON Room Temperature Setting
TEMP.
Operation Mode Selection
• AUTO Automatic Operation Mode
• HEAT Heating Operation Mode
•
COOL Cooling Operation Mode
•
DRY Soft Dry Operation Mode
MODE
Sleep Mode Operation OFF / ON
Indoor Fan Speed Selection
FAN SPEED
• Low Fan Speed
• Medium Fan Speed
• High Fan Speed
•
AUTO Automatic Fan Speed
Airflow Direction Control
TIMER
12-hour Timer Setting
AIR SWING
• AUTO Automatic Airflow Direction
Control
•
MANUAL Airflow Direction Manual
Control
Heating, Cooling, Soft Dry Operation.
• Temperature Setting (16°C to 30°C)
Automatic Operation
•
Operation with 2°C higher than
standard temperature.
• Operation with standard temperature.
•
Operation with 2°C lower than
standard temperature.
•
SELECT To select delay OFF Timer,
ON Timer, OFF/ON Timer
and ON/OFF Timer
•
To set hours setting
•
To set hours setting
•
SET/CANCEL To start delay OFF and ON
timer, cancellation
OFF / ON I
Self illuminating
button
SLEEP
2
