Panasonic CS-V12CTP Service Manual

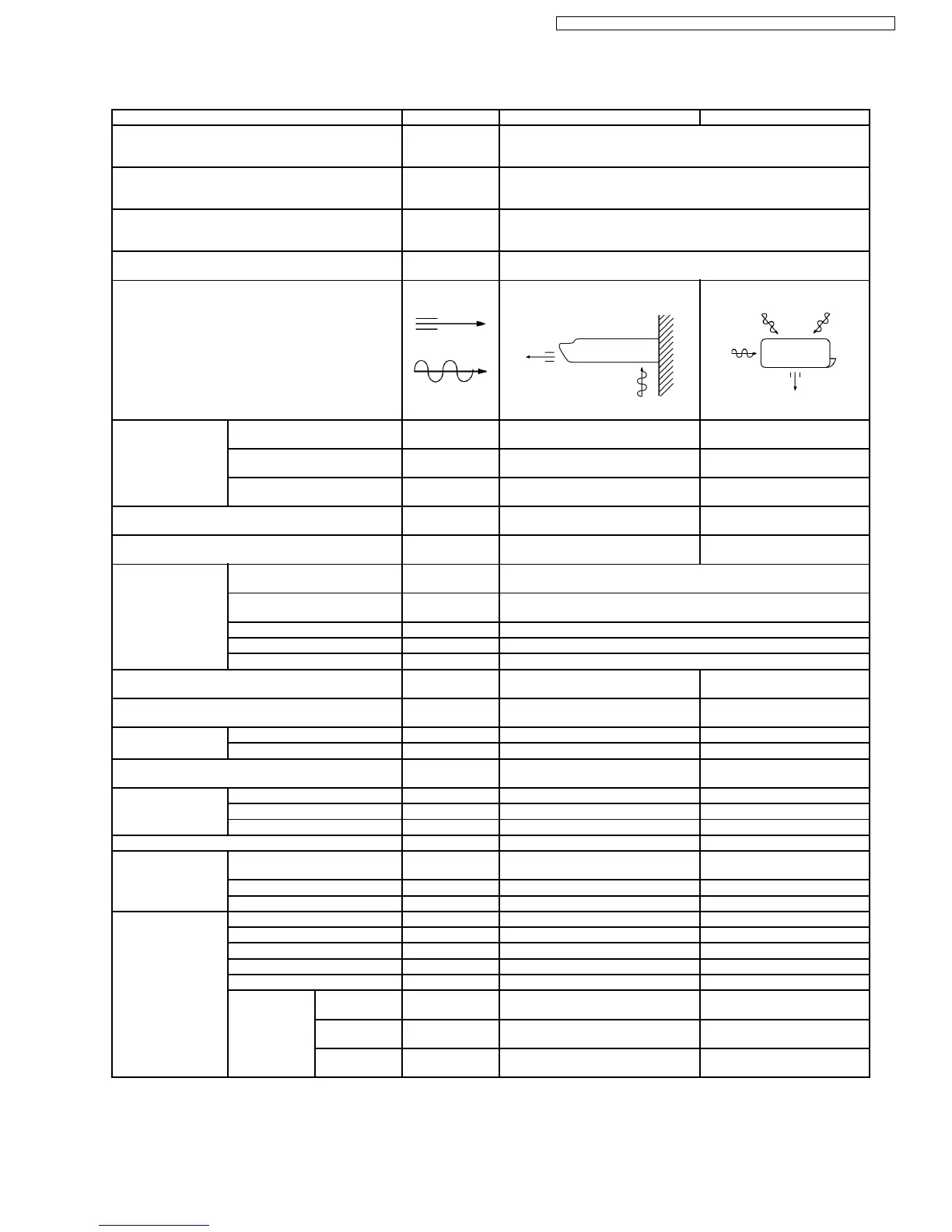

2 Product Specifications
Unit CS-A12CTP CU-A12CTP5
Power Source Phase
V
Cycle
Single
220 - 230
50
Cooling Capacity kW
Btu/h
kcal/h
3.52 - 3.52
12,000 - 12,000
3,030 - 3,030
Heating Capacity kW
Btu/h
kcal/h
4.00 - 4.00
13,600 - 13,600
3,440 - 3,440
Moisture Removal l/h
Pint/h
2.0
4.2
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Indoor Air (Lo) m
3
/min (cfm) Cooling: 7.5 (260) - 7.5 (260)
Heating: 7.5 (260) - 7.5 (260)
—
Indoor Air (Me) m
3
/min (cfm) Cooling: 8.9 (310) - 8.9 (310)
Heating: 8.9 (310) - 8.9 (310)
—
Indoor Air (Hi) m
3
/min (cfm) Cooling: 9.7 (340) - 9.7 (340)
Heating: 9.7 (340) - 9.7 (340)
32.5 (1,150) - 33.0 (1,160)
Noise Level dB (A) Cooling: High 39 - 39; Low 33 - 33
Heating: High 39 - 39; Low 33 - 33
Cooling: High 48 - 49
Heating: High 48 - 49
Power Noise Level dB (A) Cooling: High 52 - 52
Heating: High 52 - 52
Cooling: High 62 - 63
Heating: High 64 - 65
Electrical Data Input Power W Cooling: 1,090 - 1,160
Heating: 1,080 - 1,140
Running Current A Cooling: 5.1 - 5.2
Heating: 5.0 - 5.1
EER W/W 3.23 - 3.03
COP W/W 3.70 - 3.51
Starting Current A 16.9
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
Drain
Hose
Inner diameter mm 20 —
Length m 0.6 —
Power Cord Length
Number of core-wire
m 1.8
3 (1.0 mm
2
)
—
—
Dimensions Height inch (mm) 21 - 9/32 (540) 21 - 9/32 (540)
Width inch (mm) 40 - 1/2 (1,028) 30 - 23/32 (780)
Depth inch (mm) 7 - 7/8 (200) 11 - 13/32 (289)
Net Weight lb (kg) 40 (18) 82 (37)
Compressor Type — Rotary (1 cylinder)
rolling piston type
Motor Type — Induction (2-poles)
Rated Output kW — 0.93
Air Circulation Type SIROCCO Propeller Fan
Material ABS STYLAC 181 PP
Motor Type Induction (4-poles) Induction (6-poles)
Input W 69.8 - 79.0 65 - 73
Rated Output W 29 33
Fan Speed Low rpm Cooling: 640 - 640
Heating: 640 - 640
—
Medium rpm Cooling: 760 - 760
Heating: 760 - 760
—
High rpm Cooling: 830 - 830
Heating: 830 - 830
835 - 845
5
CS-A12CTP CU-A12CTP5 / CS-A18CTP CU-A18CTP5 / CS-A24CTP CU-A24CTP5
