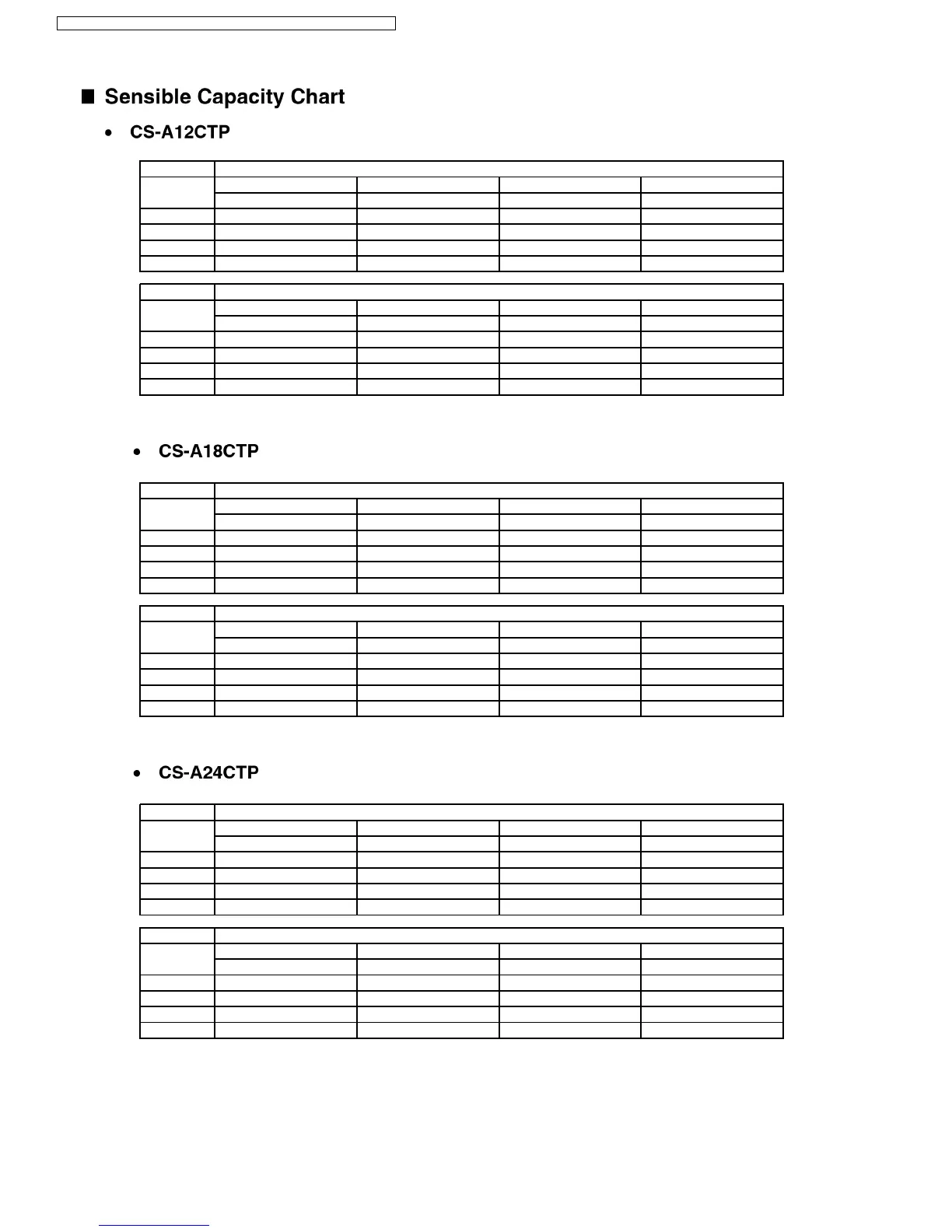

Panasonic CS-V12CTP Service Manual

230V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 3.49 2.65 1.04 3.26 2.54 1.12 3.03 2.44 1.20 2.76 2.32 1.30
19.0°C 3.52 1.14
19.5°C 3.83 2.77 1.06 3.58 2.66 1.14 3.33 2.56 1.22 3.03 2.44 1.32
22.0°C 4.18 2.87 1.08 3.90 2.76 1.17 3.63 2.67 1.25 3.30 2.54 1.34
220V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 3.49 2.65 0.99 3.26 2.54 1.06 3.03 2.44 1.14 2.76 2.32 1.23
19.0°C 3.52 1.08
19.5°C 3.83 2.77 1.01 3.58 2.66 1.08 3.33 2.56 1.16 3.03 2.44 1.25
22.0°C 4.18 2.87 1.03 3.90 2.76 1.10 3.63 2.67 1.18 3.30 2.54 1.27
230V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 5.26 3.99 1.85 4.91 3.82 1.99 4.57 3.67 2.13 4.16 3.49 2.30
19.0°C 5.30 2.02
19.5°C 5.77 4.17 1.88 5.40 4.01 2.03 5.02 3.86 2.17 4.56 3.67 2.34
22.0°C 6.29 4.33 1.92 5.88 4.16 2.06 5.47 4.01 2.21 4.97 3.83 2.38
220V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 5.26 3.99 1.73 4.91 3.82 1.86 4.57 3.67 1.99 4.16 3.49 2.15
19.0°C 5.30 1.89
19.5°C 5.77 4.17 1.76 5.40 4.01 1.90 5.02 3.86 2.03 4.56 3.67 2.19
22.0°C 6.29 4.33 1.80 5.88 4.16 1.93 5.47 4.01 2.07 4.97 3.83 2.23
230V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 6.35 4.81 2.51 5.93 4.62 2.70 5.52 4.44 2.89 5.02 4.21 3.12
19.0°C 6.40 2.74
19.5°C 6.97 5.04 2.56 6.52 4.84 2.75 6.06 4.66 2.94 5.51 4.44 3.17
22.0°C 7.60 5.23 2.60 7.10 5.03 2.80 6.60 4.85 2.99 6.00 4.62 3.23
220V Outdoor Temp. (°C)
Indoor wet
bulb temp.
30 35 40 46
TC SHC IP TC SHC IP TC SHC IP TC SHC IP
17.0°C 6.35 4.81 2.38 5.93 4.62 2.56 5.52 4.44 2.74 5.02 4.21 2.96
19.0°C 6.40 2.60
19.5°C 6.97 5.04 2.43 6.52 4.84 2.61 6.06 4.66 2.79 5.51 4.44 3.01
22.0°C 7.60 5.23 2.47 7.10 5.03 2.66 6.60 4.85 2.84 6.00 4.62 3.07
TC - Total Cooling Capacity (kW) Indoor 27°C/19°C
SHC - Sensible Heat Capacity (kW) Outdoor 35°C/24°C
IP - Input Power (kW)
54
CS-A12CTP CU-A12CTP5 / CS-A18CTP CU-A18CTP5 / CS-A24CTP CU-A24CTP5

Panasonic CS-V12CTP Specifications
