Panasonic CS-Z25UFEAW Service Manual

134
20.3.3 CS-Z50UD3EAW
Test Report
Tap
Static Pressure
(Pa)
Airflow
(m
3
/min)
Lo
-0.1 11.08
2.5 10.78
16.4 9.02
26.7 7.36
34.7 5.92
42.4 4.65
Me
-0.1 14.10
10.7 13.01
28.4 11.29
41.0 9.61
51.1 8.11
59.1 6.89
63.8 5.60
Tap
Static Pressure
(Pa)
Airflow
(m
3
/min)
Hi
0.1 17.15
24.4 15.27
44.6 13.57
60.4 11.94
74.5 10.45
84.1 9.13
90.3 8.02
93.4 6.83
Hi Fan (Hi
Static P
selected)
-0.1 19.09
66.5 13.69
81.5 12.18
92.6 10.77
101.7 9.51
108.0 8.54
114.8 7.61

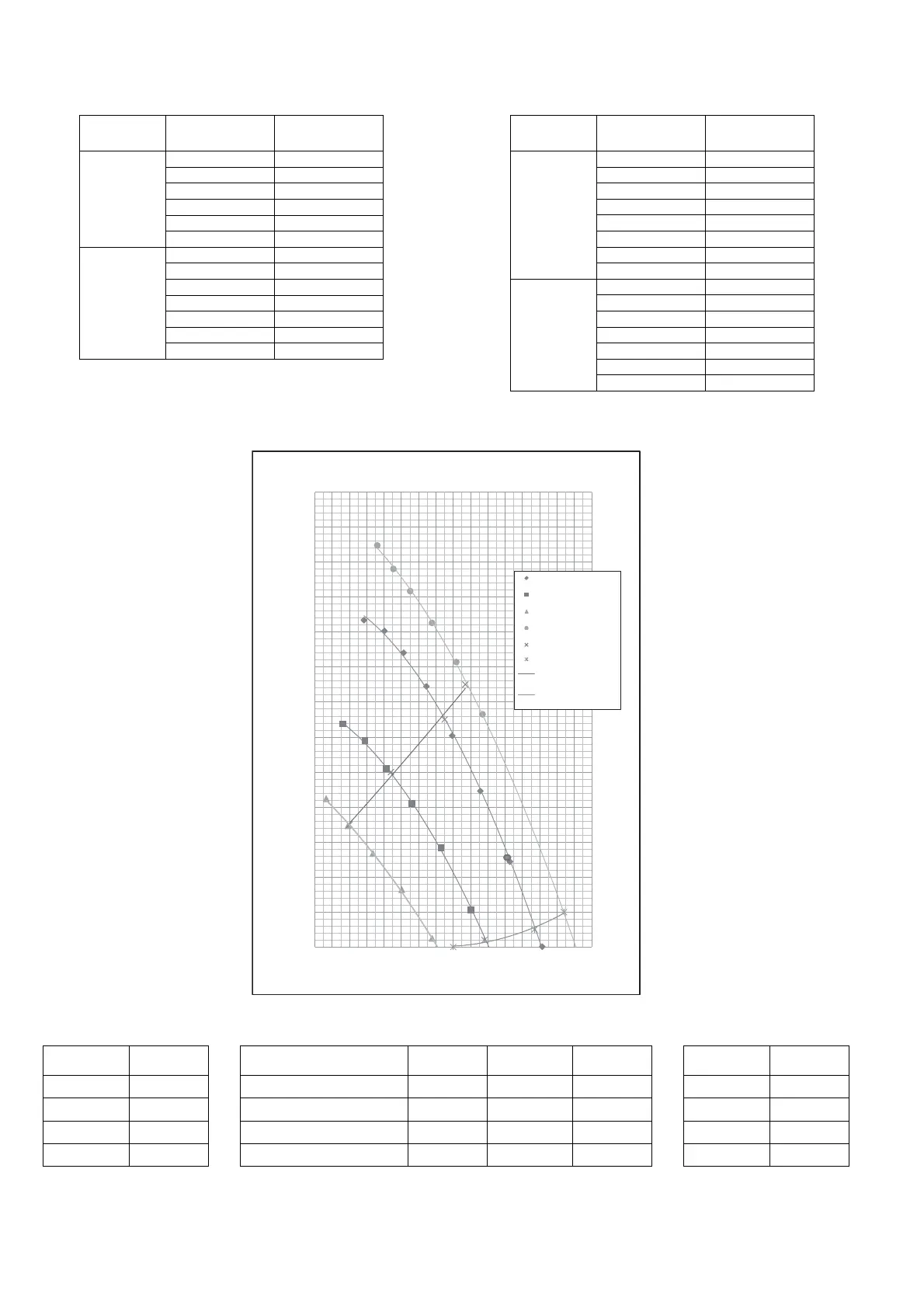

Fan Performance Curve
0
10
20
30
40
50
60
70
80
90
100
110
120
130
4567891011121314151617181920
Hi
Me
Lo
Hi Fan (Hi Static P selected)
Static Pressure Upper Limit
Static Pressure Lower Limit
Poly. (Static Pressure Upper
Limit)
Poly. (Static Pressure Lower
Limit)
Static pressure (Pa)
Air Flow (m
3
/min)
P-Q chart
Static Pressure Upper Limit Static Pressure Lower Limit
Static
Pressure (Pa)
Airflow
(m
3
/min)
RPM
Static
Pressure (Pa)
Airflow
(m
3
/min)
Static
Pressure (Pa)
Airflow
(m
3
/min)
75 12.7 Hi Fan (Hi Static P selected) 1600 49 15.3 10 18.4
65 11.5 Hi Fan (Standard) 1440 25 15.3 5 16.7
50 8.4 Me Fan (Standard) 1190 20 12.1 2 13.8
35 6.0 Lo Fan (Standard) 940 15 9.2 0 12.0
