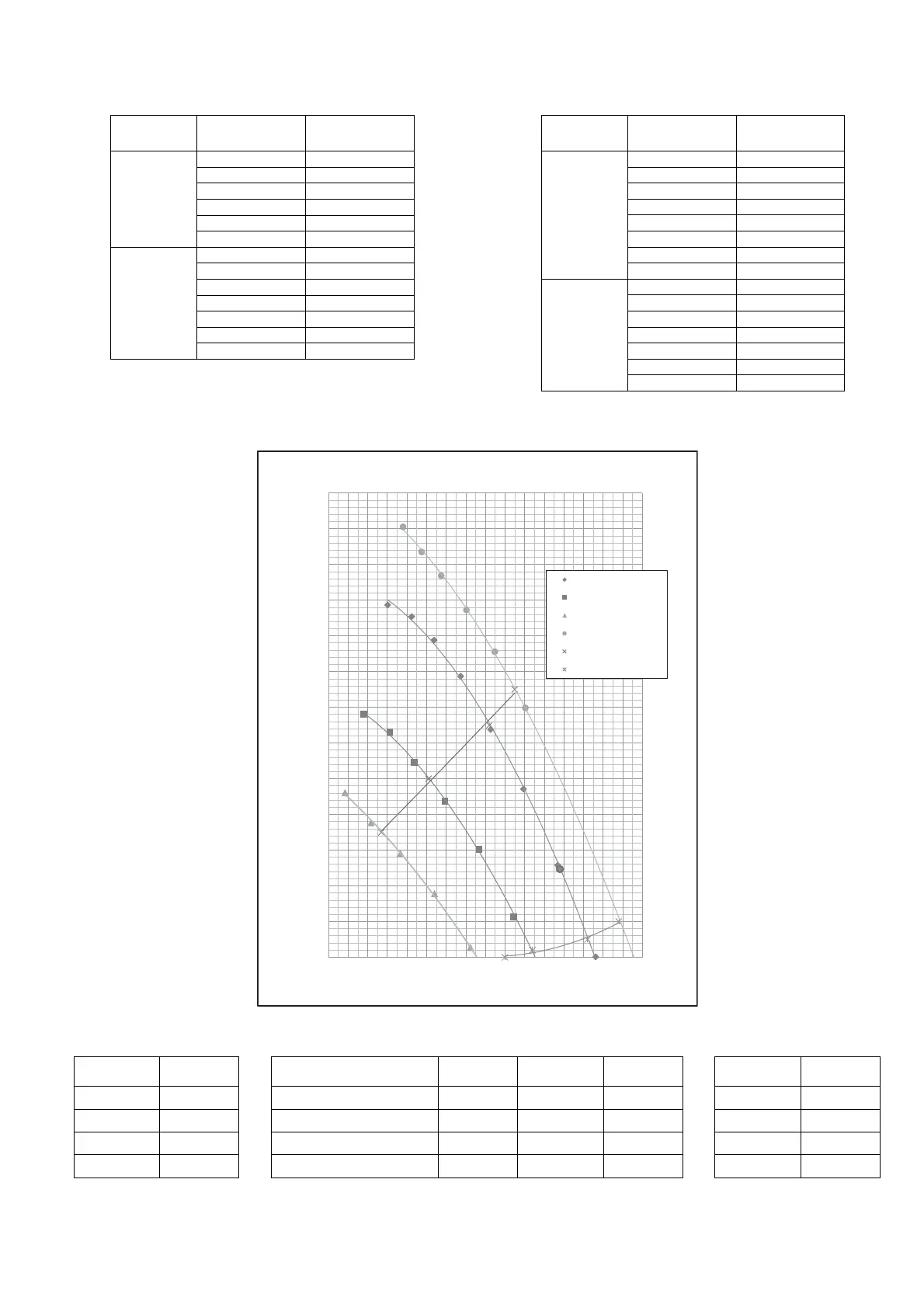

20.3.4 CS-Z60UD3EAW
Test Report
Tap
Static Pressure
(Pa)
Airflow
(m
3
/min)
Lo
-0.1 11.55
2.7 11.24
17.8 9.41
29.0 7.67
37.7 6.17
46.1 4.85
Me
-0.1 14.57
11.4 13.45
30.3 11.67
43.8 9.93
54.5 8.38
63.1 7.12
68.1 5.79
Tap
Static Pressure
(Pa)
Airflow
(m
3
/min)
Hi
0.1 17.63
25.8 15.69
47.1 13.95
63.8 12.27
78.7 10.74
88.8 9.38
95.4 8.24
98.7 7.02
Hi Fan (Hi
Static P
selected)
-0.1 19.57
69.9 14.04
85.6 12.48
97.3 11.04
106.8 9.75
113.5 8.75
120.6 7.80
Fan Performance Curve
0
10
20
30
40
50
60
70
80
90
100
110
120
130
4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Hi
Me
Lo
Hi Fan (Hi Static P selected)
Static Pressure Upper Limit
Static Pressure Lower Limit
Static pressure (Pa)
Air Flow (m
3
/min)
P-Q chart
Static Pressure Upper Limit Static Pressure Lower Limit
Static
Pressure (Pa)
Airflow
(m
3
/min)
RPM
Static
Pressure (Pa)
Airflow
(m
3
/min)
Static
Pressure (Pa)
Airflow
(m
3
/min)
75 13.5 Hi Fan (Hi Static P selected) 1640 51 15.7 10 18.8
65 12.2 Hi Fan (Standard) 1480 25 15.7 5 17.2
50 9.1 Me Fan (Standard) 1230 20 12.6 2 14.4
35 6.7 Lo Fan (Standard) 980 15 9.6 0 13.0
