43

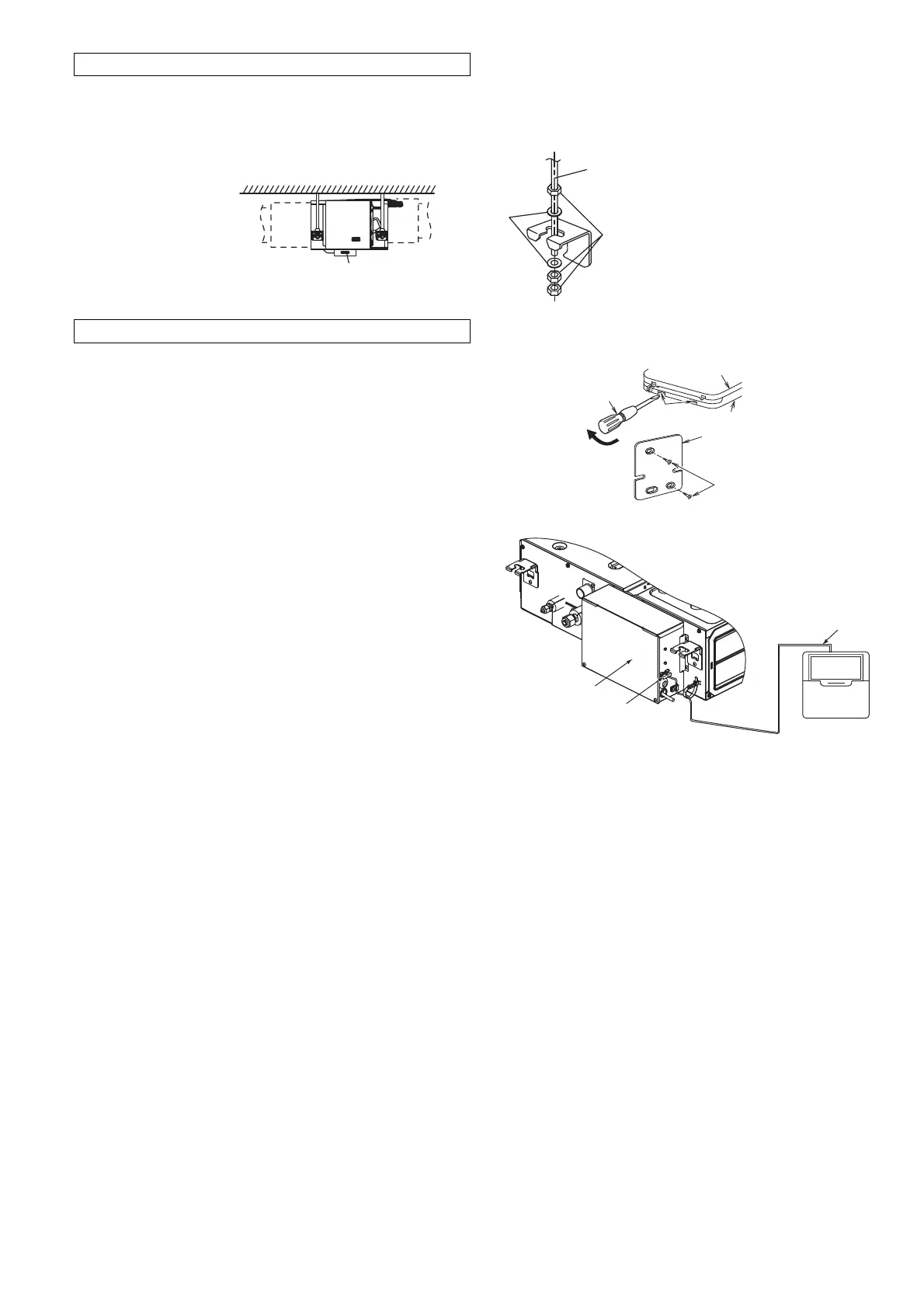

Installation into the Ceiling
Attach the nuts and washers to the hanging bolts, then lift up and hook the main unit onto the hanging fixtures.
Check if the unit is leveled using a level or a vinyl hose filled partially with water.
Hanging bolt (M10)
(locally purchased)
Flat
washer
5
Hexagonal nut (M10)
(locally purchased)
Level
Remote Controller Installation
1 Remove the remote controller 1 lower case.
(Insert a flat-tipped screw driver or similar tool
2 to 3 mm into one of the gaps at the bottom
of the case, and twist to open. Refer to the
illustration at right.) Be careful not to damage
the lower case.
2 Do not remove the protective tape which is
affixed to the upper case circuit board when
remove the remote controller lower case.
3 Secure the lower case to an outlet box or wall.
Refer to (A) or (B) instructions below
depending on your choice of cable installation.
4 Be sure to use only the screws provided.
5 Do not over tighten the screws, as it may
result in damage to the lower case.
6 Connect the indoor unit and the remote
controller 1. (Refer to the illustration)
7 Insert firmly the connector of remote controller
cable 2 to connector at control box of indoor
unit.
8 Fix the green wire from remote controller
cable 2 to the grounding location provided
inside control board.
Upper case
Lower
case
Screws
3
or Screws
4
Gaps
Screw
driver
Remote controller
1
Remote controller cable
2
Connector
Control box
To Next Page
