77
14.8.2 OFF Timer Control
OFF timer 1 and OFF timer 2 can be set using remote control, the unit with timer set will stop operate at set time.
14.9 Auto Restart Control
When the power supply is cut off during the operation of air conditioner, the compressor will re-operate within
three to four minutes (there are 10 patterns between 2 minutes 58 seconds and 3 minutes 52 seconds to be
selected randomly) after power supply resumes.
This type of control is not applicable during ON/OFF Timer setting.
This control can be omitted by open the circuit of JP1 at indoor unit printed circuit board.
14.10 Indication Panel
LED POWER TIMER nanoeX
Color White White White
Light ON Operation ON Timer Setting ON nanoe™ X Mode ON
Light OFF Operation OFF Timer Setting OFF nanoe™ X Mode OFF
Note:
If POWER LED is blinking, the possible operation of the unit are Hot Start, during Deice operation, operation
mode judgment, or ON timer sampling.
If Timer LED is blinking, there is an abnormality operation occurs.

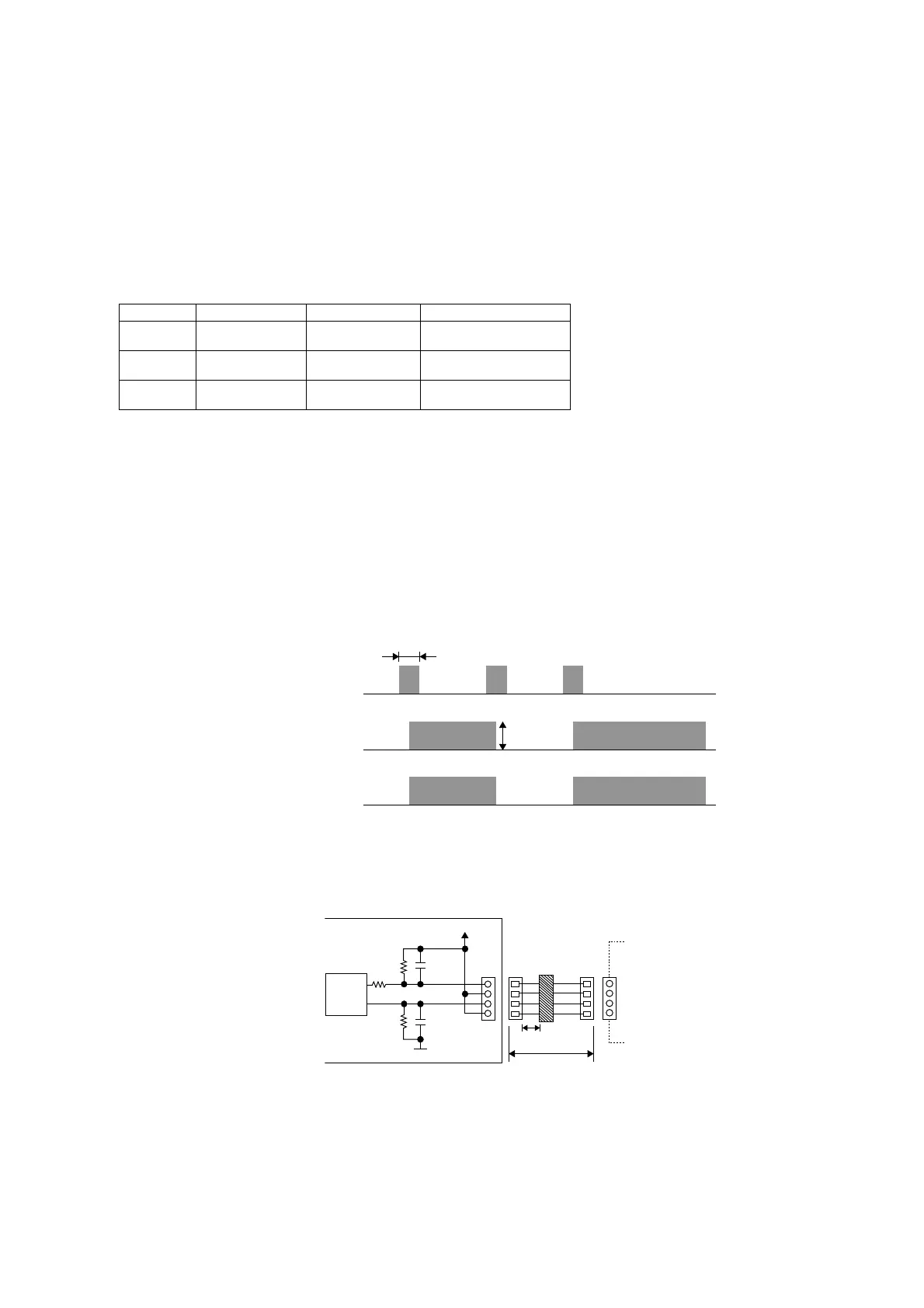

14.11 HA Terminal (HAJEM-A)
Enable digital connection from indoor unit to external devices.
Control items:
1 Start/stop input.
2 Start/stop signal output.
Condition
1 1-2 (Pulse input): Unit ON/OFF condition switching with a pulse signal.
(1 pulse signal: shortage status 200~300msec)
2 3-4 (Static output): 5V output during the unit ON. No output at OFF.
Example of wiring:
Note: The wire length from indoor unit to the external interface must be within 1.9 meters. The wire must be double
insulation type and a ferrite core to be added to reduce noise. Proposed core spec is J0KE00000147 with Heat
Shrinkage Tube.
The signal between indoor unit and the external interface must be isolated by photo-coupler of approval type
(e.g: Semko, VDE etc).
~
m
c
ON/OFF input
(Pin 1-2)
+5V
OFF
Monitor output
(Pin 3-4)
it co
itio
ON ON
MCU
+5V
#A4 #A4
11
240 mm
Indoor Unit
PCB
HAJEM-A
(XH type)
#A K1KA04AA0347 (Maker: JST; Maker code: B4B-XH-TV4)
:
T;
co
:XHP-4
Max 1900 mm
1
1
#B4 #B4
Core
4T
To Next Page
