Panasonic CT-27DC50B - Audio Signal Path Block Diagram

- 32 -
Audio Signal Path Block Diagram

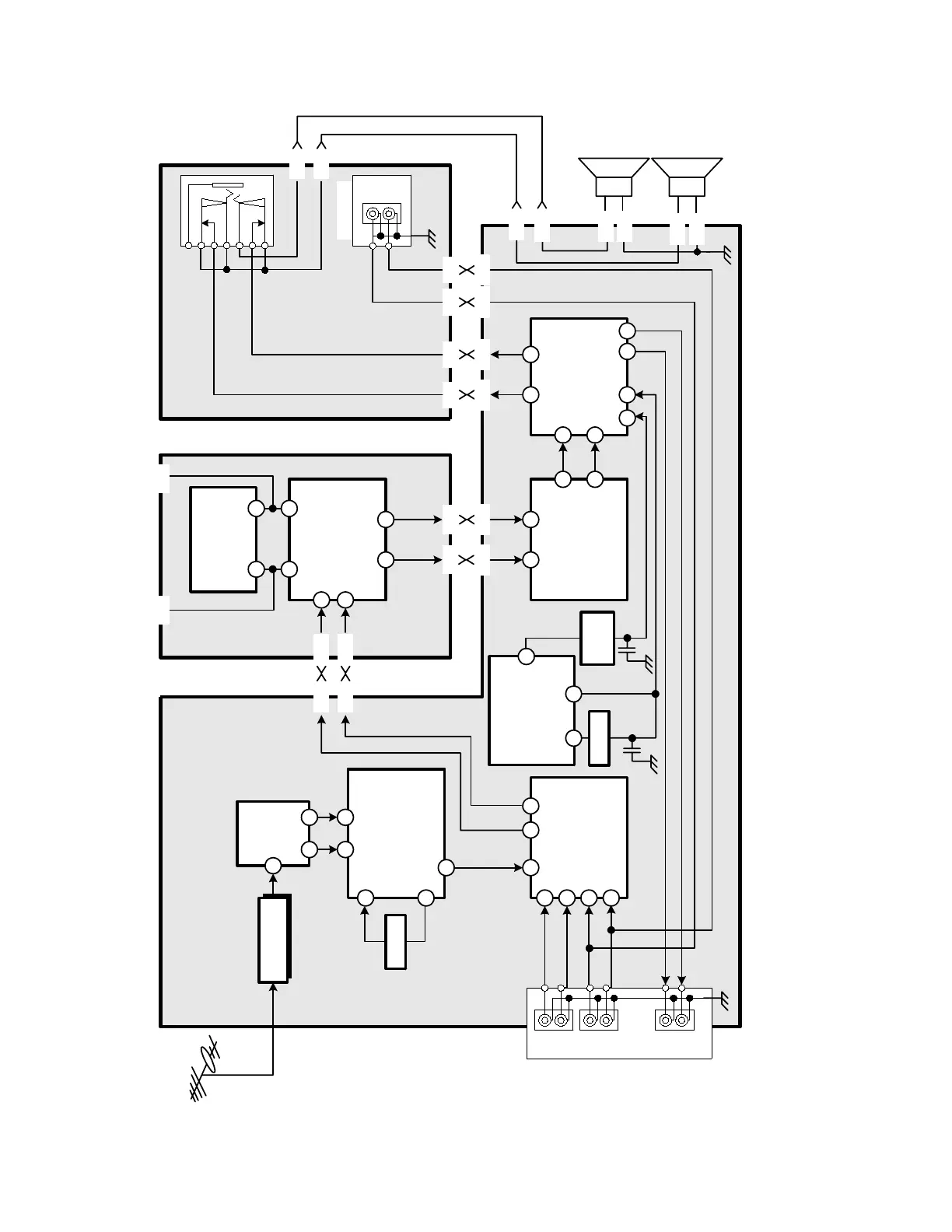

Figure 39. Audio Signal Path Block Diagram
GA
VAO
L
R
Audio
Input 1
L
R
Audio
Input 2
L
R
JJ
IC2201 MTS
AN5829S
Tuner 1
X101 SAW
Filter
IC101 VCJ
AN5166K
1
20 19
24
33 28 SIF IN
DET OUT
5 4
14
MPX IN
2 3
23 24
21 22
IC3002
BU4551BF
10
3
A30-1 JJ5-1 A30-3 JJ5-3
5 4
JJ5-5 JJ5-7
A30-5 A30-7
IC2321 AUDIO CONTROLLER CXA2021S
22 1
L R
L
R
2
DVD L DVD R
IC3602
NJM4580M
AMP
IC2302
AUDIO
AMPLIFIER
AN5272
14
9
5 2
4 1
12 7
G3-2 G3-4
A26-2 A26-4
Front Input
L
R
G1-3 G1-2
A25-2
G3-6 G3-7
MAIN L MAIN R
LR
6 3
M1876476TC1 IC001 MPU
50
47
Q304
Q2363
45
VOLS DEFT
SP
ON/OFF
Q2302 Q2303
A28-1 A28-2
A28-4 A28-3
A26-6
A26-7
L R
W3-1 W3-3
6 2 6
LR
A25-3
