Location of Controls (Receiver)
Quick Reference Control Operation
Quick Reference
Control Operation
Power Button - Press to turn ON or OFF.
Volume Buttons - Press to adjust Sound Level, or to adjust Audio Menus, Video
Menus, and select operating features when menus are displayed.
Channel Buttons - Press to select programmed channels. Press to highlight desired
features when menus are displayed. Also use to select Cable Converter box channels
after programming Remote Control Infra-red codes (the TV/AUX/CABLE switch must
be set in CABLE position).
Action Button - Press to display Main Menu and access On Screen features and
Adjustment Menus.
TV/Video Button - Press to select TV, Video or DVD mode.

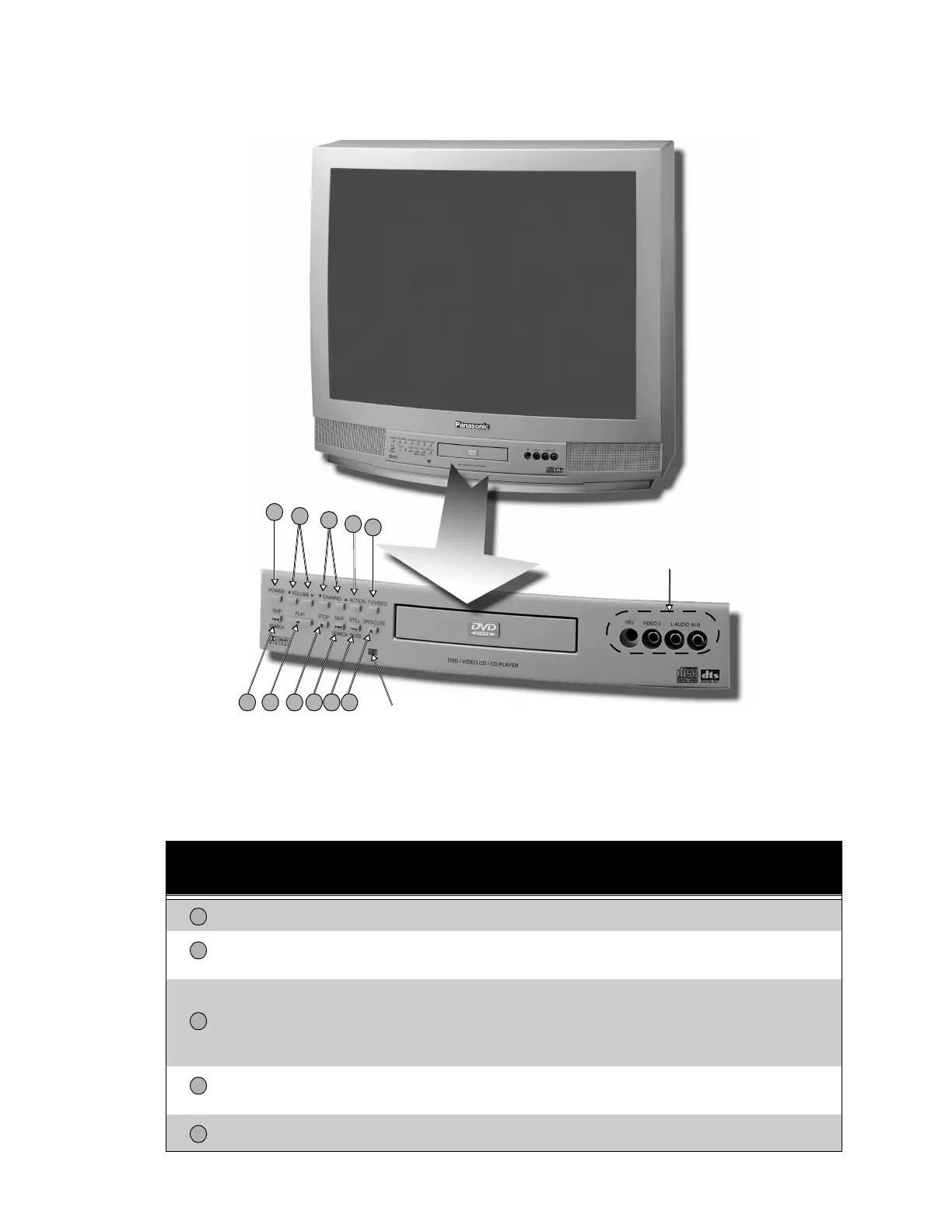

Figure 2. Location of Controls
6 7 8 9 10 11
5
1
4
2
3
Input Jacks
Remote Control Sensor
1
2
3
4
5
To Next Page
