PACD011001C2 Outline
General Information Urban Multi “MX1R, ME1R Series” Using R-407C 223

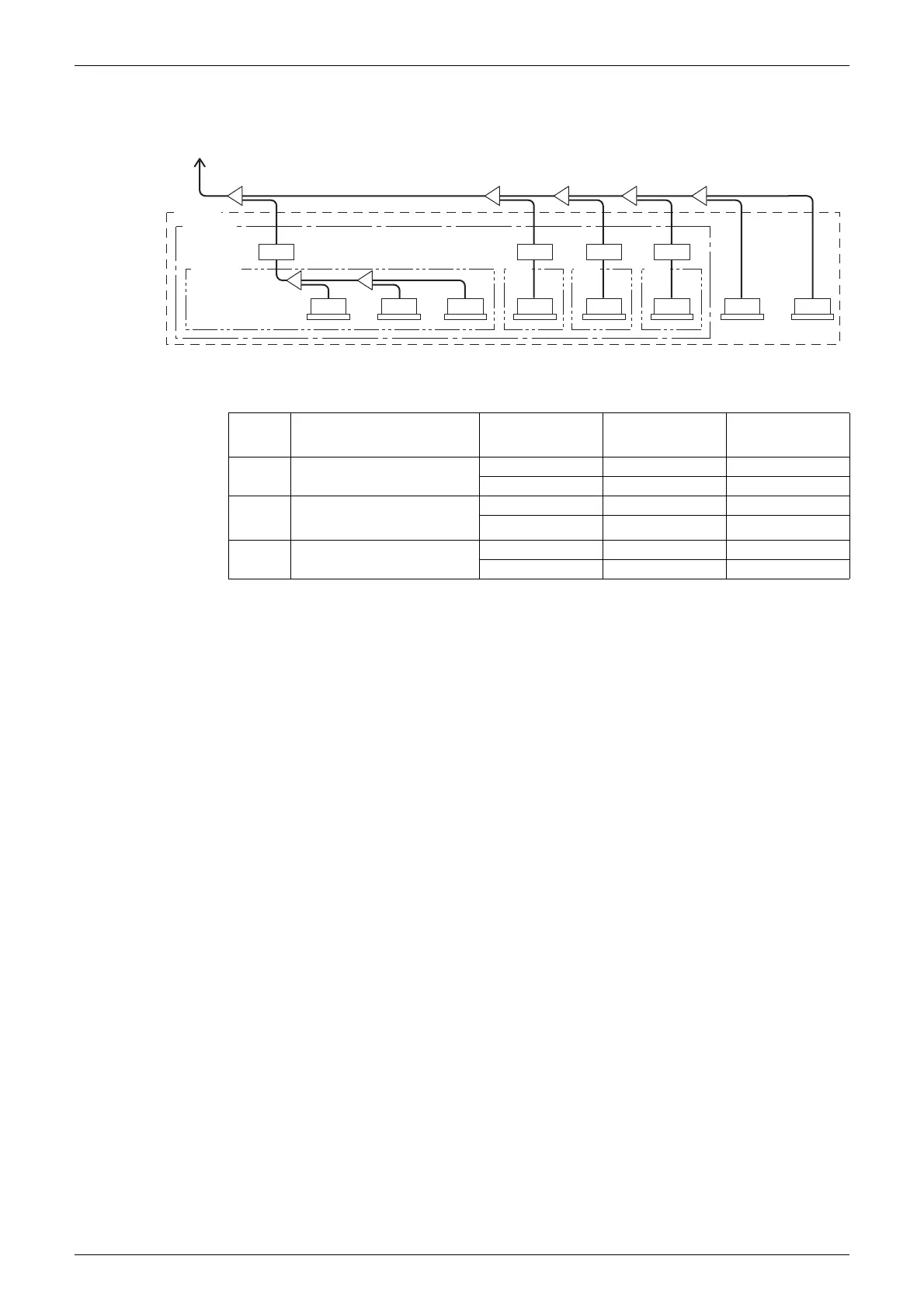

2.3 Allowed Range of Indoor Unit and HR Box Connection
„
Arrange systems to conform below conditions referring to above diagram.
Indoor unit
( Cooling
only unit )
( Cooling
only unit )
HR box
Range A
Range B
Range C
Range C Range C Range C
(M005)
Range Item Model of outdoor
unit and HR box
Total capacity of
connectable indoor
units
Max. number of
connectable indoor
units
Range A Total indoor unit capacity CU-8ME1XPK 11.2 to 29.1kW 13 units
CU-10ME1XPK 14 to 36.4kW 16 units
Range B Total indoor unit capacity
allowed for simultaneous
cooling/heating operations
CU-8ME1XPK 11.2kW or more 13 units
CU-10ME1XPK 14kW or more 16 units
Range C Total indoor unit capacity
allowed for connection to HR box
CZ-100HR1HP less than 11.2kW 5 units or less
CZ-160HR1HP 11.2 to 18kW 6 units or less
