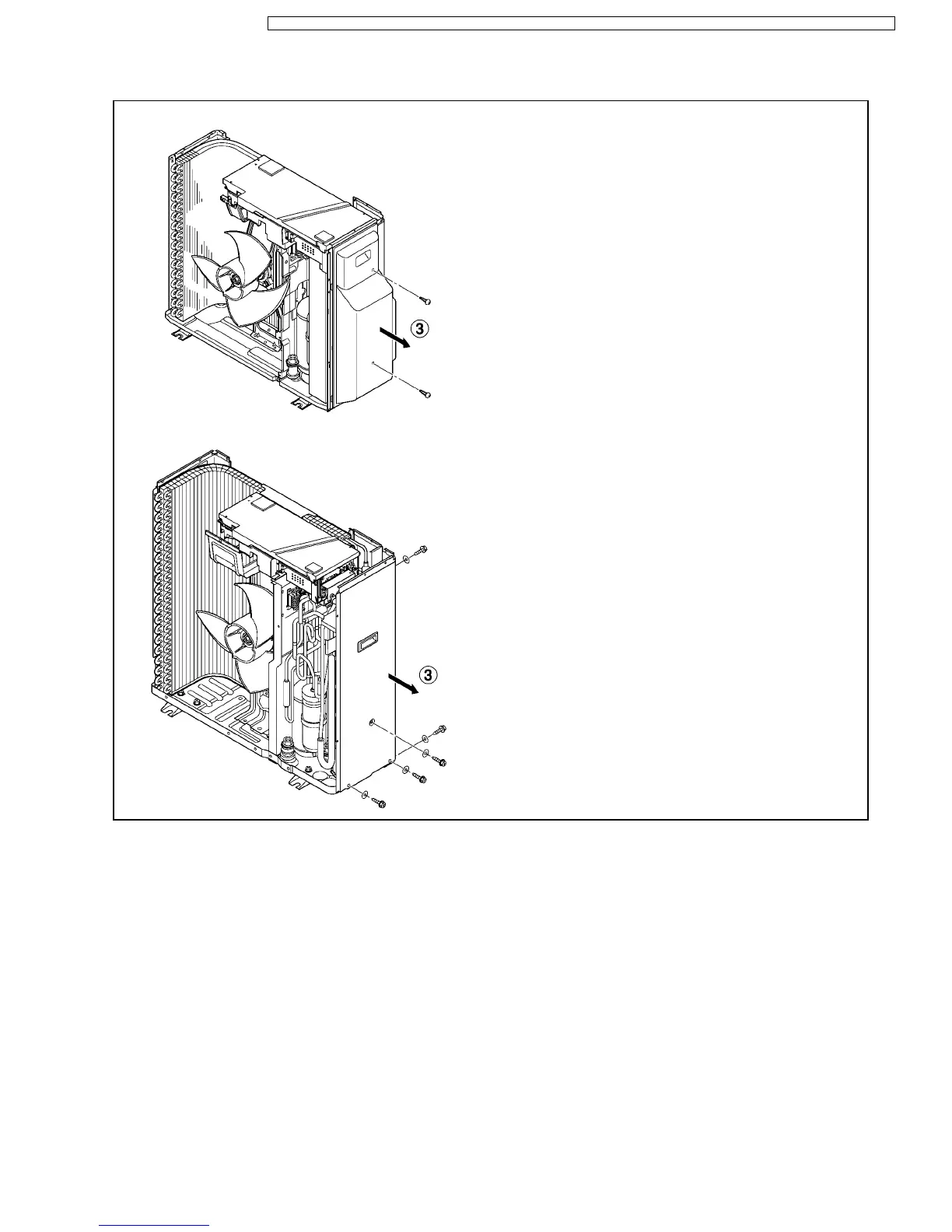

13.3.3.2. Remove the Control Board Cover (Right Side Plate for CU-4E27CBPG)
■
■■
■ CU-3E23CBPG
3. Remove the control board cover (remove 2 screw).
■
■■
■ CU-4E27CBPG
3. Remove the 5 screws and release the 2 hooks of the right side plate,
and remove the side plate.
