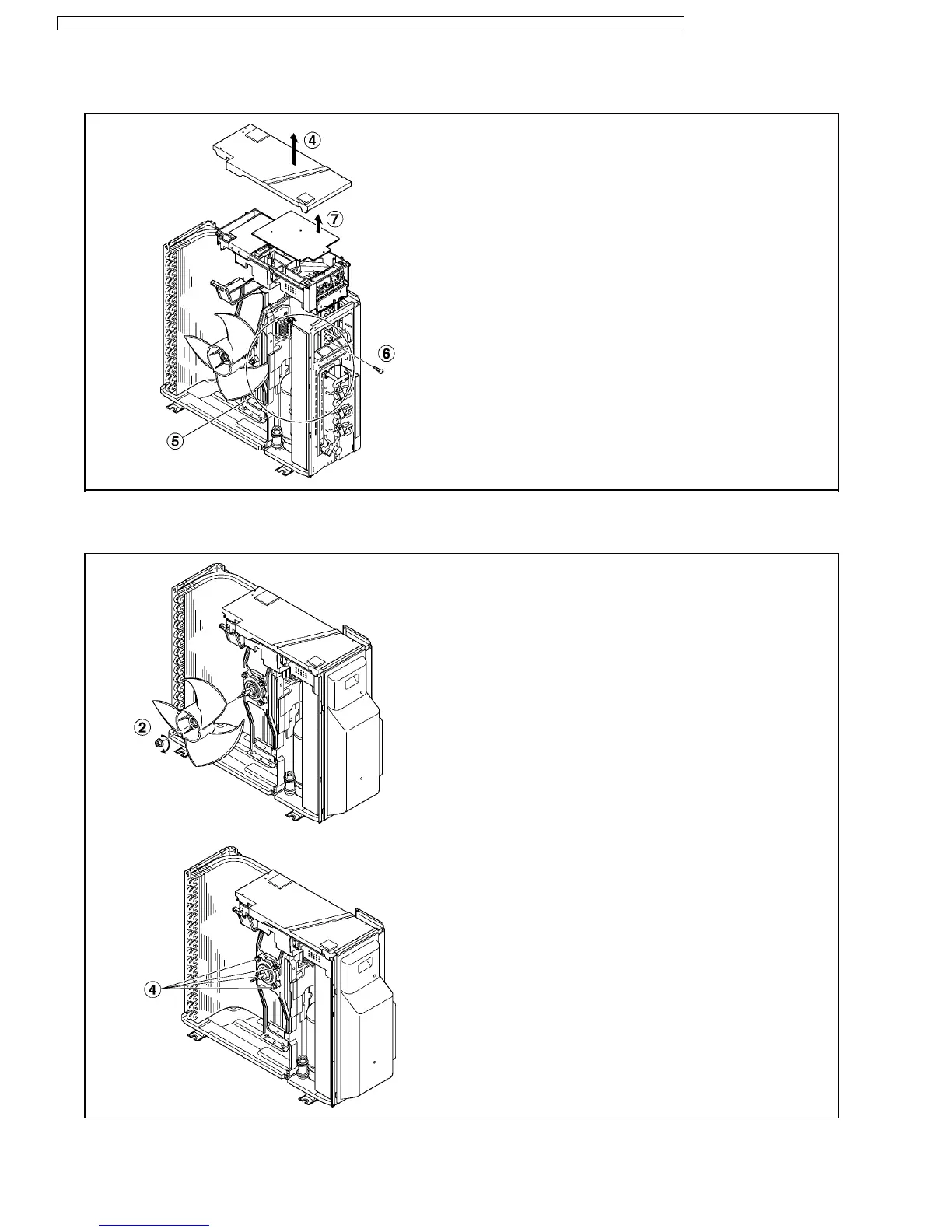

13.3.3.3. Removing the Control P.C. Board
4. Remove the drip proof cover.
5. Disconnect the connectors (lead wires of the compressor, sensor,
and others).
6. Remove the screw at the right side of the control box, and pull out the
entire control box.
7. Release the control P.C. Board tab to remove the control P.C. Board.
13.3.3.4. Removing the Propeller Fan and Fan Motor
1. Follow the steps in 13.3.2.1. for removing the cabinet top plate and
cabinet front plate.
2. Remove the propeller fan by removing the nut turning clockwise at its
center.
3. Disconnect the fan motor connector from the control P.C. Board.
4. Loosen the 4 fan motor mounting screws then remove the fan motor.
