Panasonic CU-MC140KE - Refrigeration Cycle Diagram; CS-MC90 KE; CU-MC140 KE Diagram; CS-MC90 KE; CU-MC180 KE Diagram; CS-MC90 KE; CU-3 MC200 KE Diagram

– 13 –
MAC9702008C2
CS-MC90KE

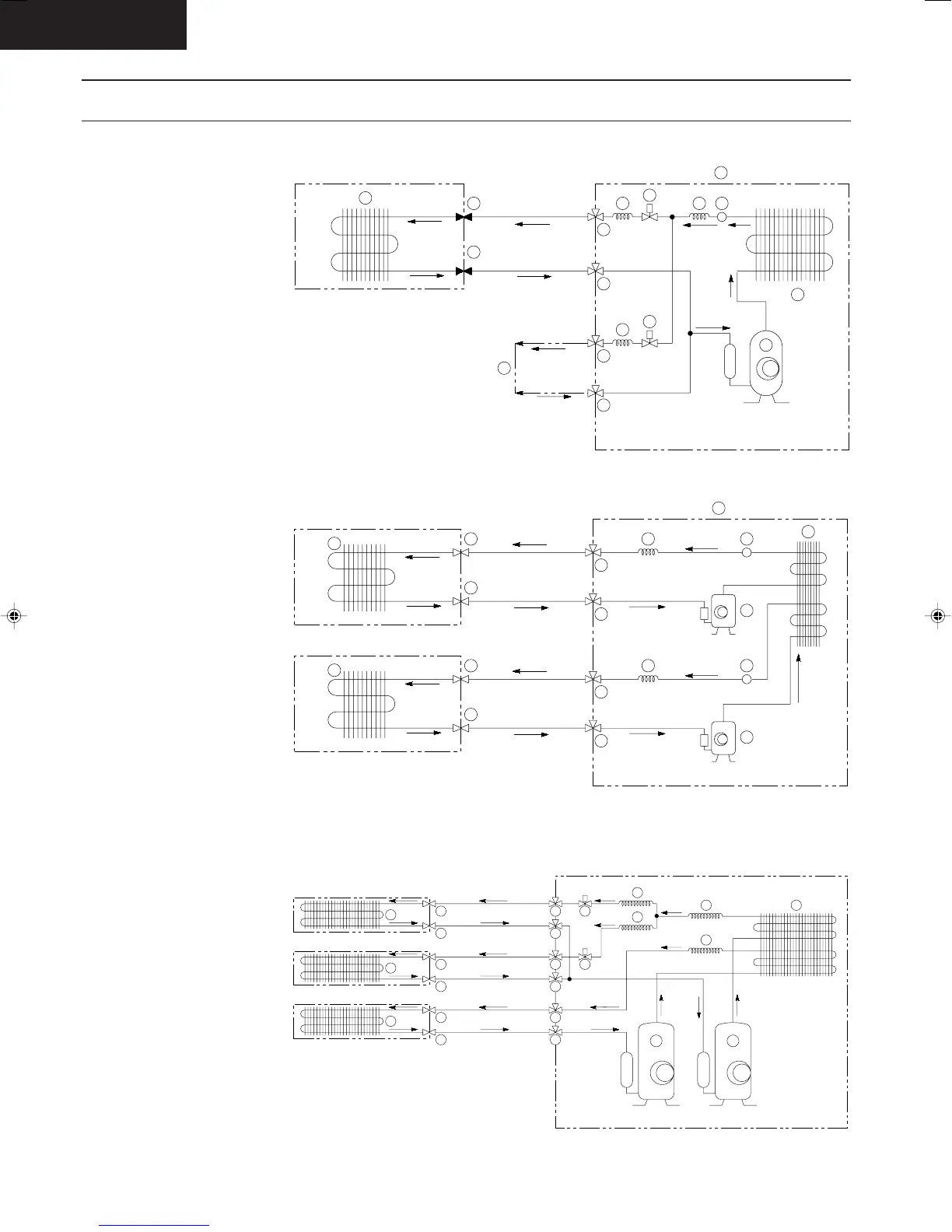

Refrigeration Cycle Diagram
CS-MC90KE / CU-MC180KE
CS-MC90KE / CU-3MC200KE
1 Compressor (1)
2 Compressor (2)
3 Condensor
4 Capillary tube (1)
5 Capillary tube (2)
6 Capillary tube (3)
7 Switching solenoid valve
8 3 way valve (1/4")
9 3 way valve (3/8")
! Half union (1/4")
" Half union (3/8")
# Evaporator
CS-MC90KE / CU-MC140KE
1 Evaporator
2 Capillary tube (2)
3 3 way valve (1/4")
4 3 way valve (3/8")
5 Half union (1/4")
6 Half union (3/8")
7 Switching solenoid valve (A)
8 Switching solenoid valve (B)
9 Capillary tube (1)
! Condensor
" Compressor
# Outdoor unit
$ Strainer
% To indoor unit B
INDOOR UNIT (B1)
INDOOR UNIT (B2)
INDOOR UNIT (A)
LIQUID SIDE
LIQUID SIDE
LIQUID SIDE
GAS SIDE
GAS SIDE
GAS SIDE
OUTDOOR UNIT
12
12
12
10
11
10
11
10
11
8
9
8
9
8
9
7
7
5
5
12
4
6
3
1 Evaporator
2 Capillary tube (2)
3 3 way valve (1/4")
4 3 way valve (3/8")
5 Half union (1/4")
6 Half union (3/8")
! Condensor
" Compressor
# Outdoor unit
$ Strainer
Indoor Unit A
LIQUID SIDE
GAS SIDE
Indoor Unit B
1
5
6
14
3
4
2
7
2
8
3
4
913
12
10
11
LIQUID SIDE
GAS SIDE
Indoor Unit A
LIQUID SIDE
GAS SIDE
GAS SIDE
LIQUID SIDE
Indoor Unit B
Comp.A
11
13
13
11
10
12
2
2
3
4
3
4
5
6
6
5
1
1
Comp.B
Untitled-24 6/25/00, 5:31 PM13
