Installation Information

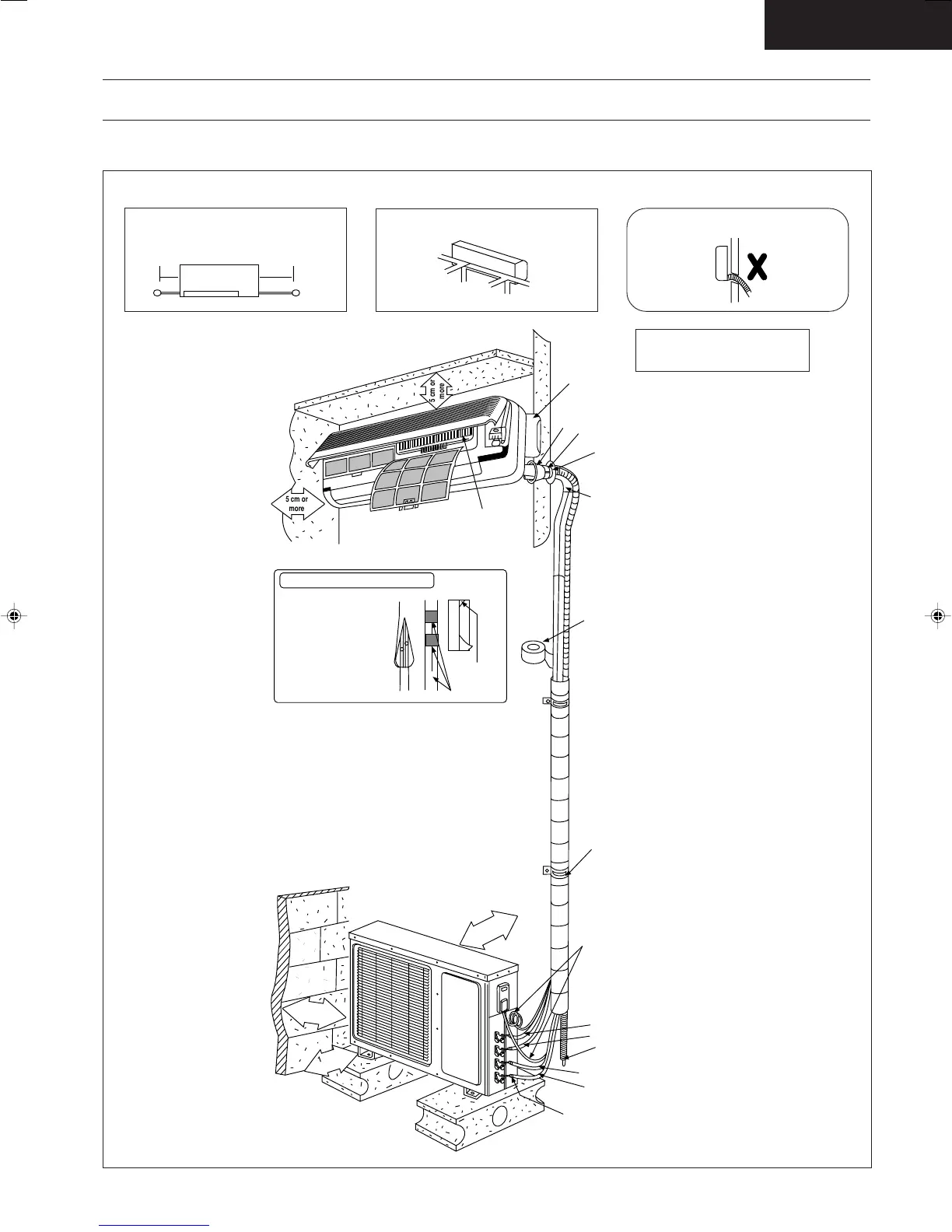

Indoor / Outdoor unit installation diagram
Length of power supply cord Piping direction Attention not to bend up drain hose
about 1.1 m
about 1.8 m
Right
rear
Right bottom
Left
rear
Left bottom
Left
(Front side)
Right
Installation parts you must
purchase (*)
Installation plate 1
Sleeve (*)
Bushing-Sleeve (*)
Putty, (Gum Type Sealer) (*)
Bend the pipe as closely on the
wall as possible, but be careful
that it doesn’t break.
Vinyl tape (Wide) (*)
• Apply after carrying out a
drainage test.
• To carry out the drainage
test, remove into the air filters
and pour water into the heat
exchanger.
Saddle (*)
Connecting cable
(3-CORE WIRE/1.5 mm
2
)
Locally approved cable.
• This illustration is for explanation purposes only.
The indoor unit will actually face a different way.
• Carry out insallation
after checking for gas
leaks.
• After securing with
three of the vinyl
tape 7, wrap with
vinyl tape 8.
Vinyl tape
8
Air purifying filter 5
5 cm or
more
5 cm or
more
150 cm
or more
10 cm
or more
30 cm
or more
Insulation of piping connection
Vinyl tape 7
(Left and right are identical)
Additional drain hose (*)
Vinyl tape (*)
(Narrow)
1/4" Liquid side piping (*)
3/8" Gas side piping (*)
1/4" Liquid side piping (*)
3/8" Gas side piping (*)
<
<
<
<
