CS-MC90KE
Operation Details

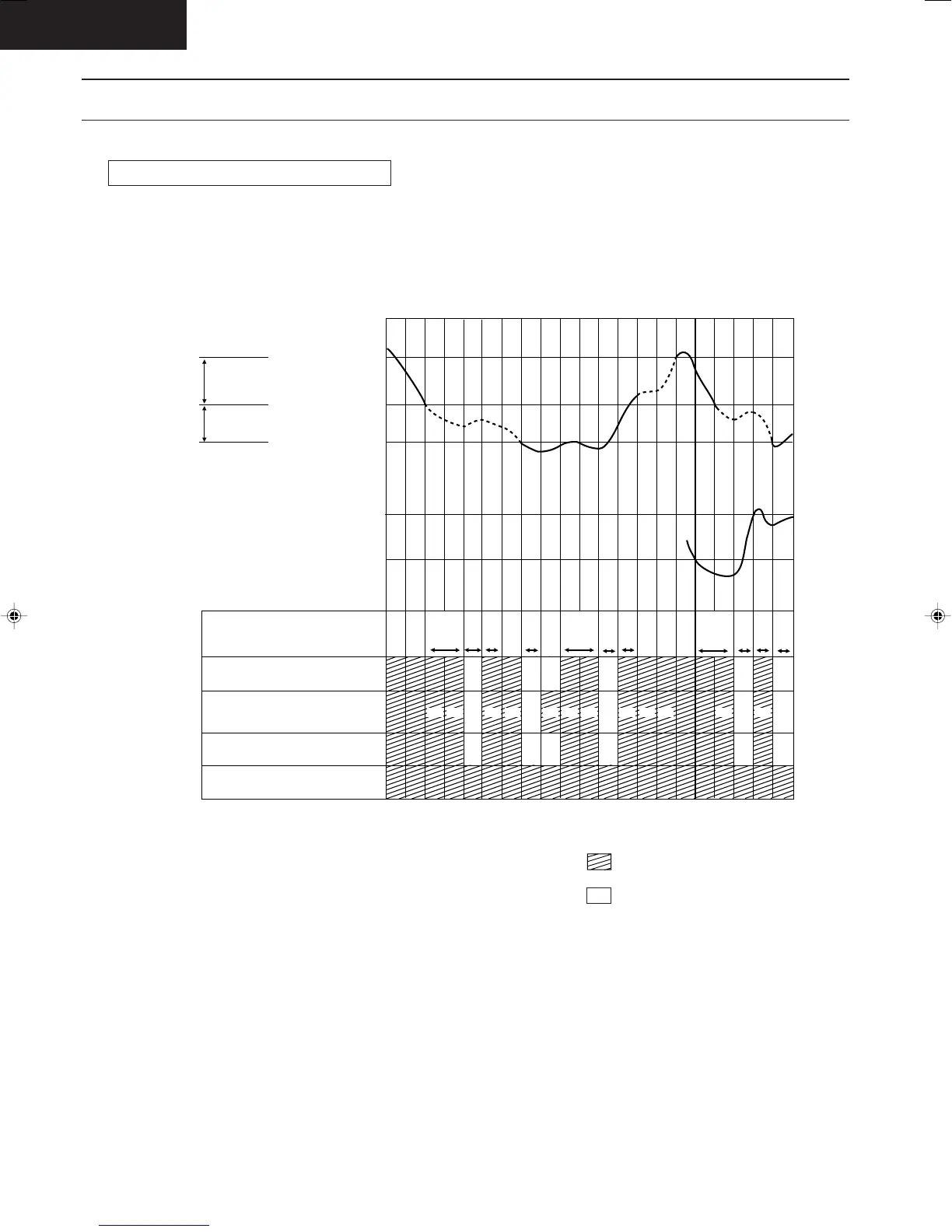

Soft Dry Operation Time Diagram
a
b
c
def
g
h
i
j
k
l
m
n
opq
rs
tuv
Basic Time
Compressor
Indoor Fan
Outdoor Fan
Operation LED
10’
1’ 1’
1’6’
6’
6’ 6’
4’
1’
Cooling ON
Cooling OFF
Soft Dry ON
Soft Dry OFF
1.5°C
1.0°C
SLoSLo SLo LoSLo SLo SLo SLoSLo SLo SLo SLo
Indoor
Heat Exchanger
Temp.
10°C
2°C
6’
Intake Air
Temperature
Set Temp.
<Description of operation>
a – c, p~r : Cooling Operation
c – p : Soft Dry Operation
e – f : Soft Dry OFF
j – l : 60 sec. Forced Operation
q – t : Anti Freezing Control
<Condition>
a – h : When outdoor temperature is high
h – p : When outdoor temperature is moderate
p – u : When outdoor temperature is low
Soft Dry operation
Operation
Stop
- - - - -
