Connection
3D programmes can be played back when this unit is connected to a 3D compatible TV.
• Before connection, turn off all equipment and read the appropriate operating instructions.
If the TV does not have the HDMI terminal
Connect the TV with the Audio/Video cable. (> 15)
To connect and register the USB HDD (optional)
Refer to “Registering the external HDD (USB HDD)”. (> 72)
To connect the Communication Camera (optional)
Refer to “VIERA Connect (Enjoying Internet Service)”. (> 75)
About HDMI cable
• Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.
• When outputting 1080p signal, please use HDMI Cables 5.0 meters or less.
• Recommended Panasonic HDMI cable part number:
RP-CDHS15 (1.5 m), RP-CDHS30 (3.0 m), RP-CDHS50 (5.0 m), etc.

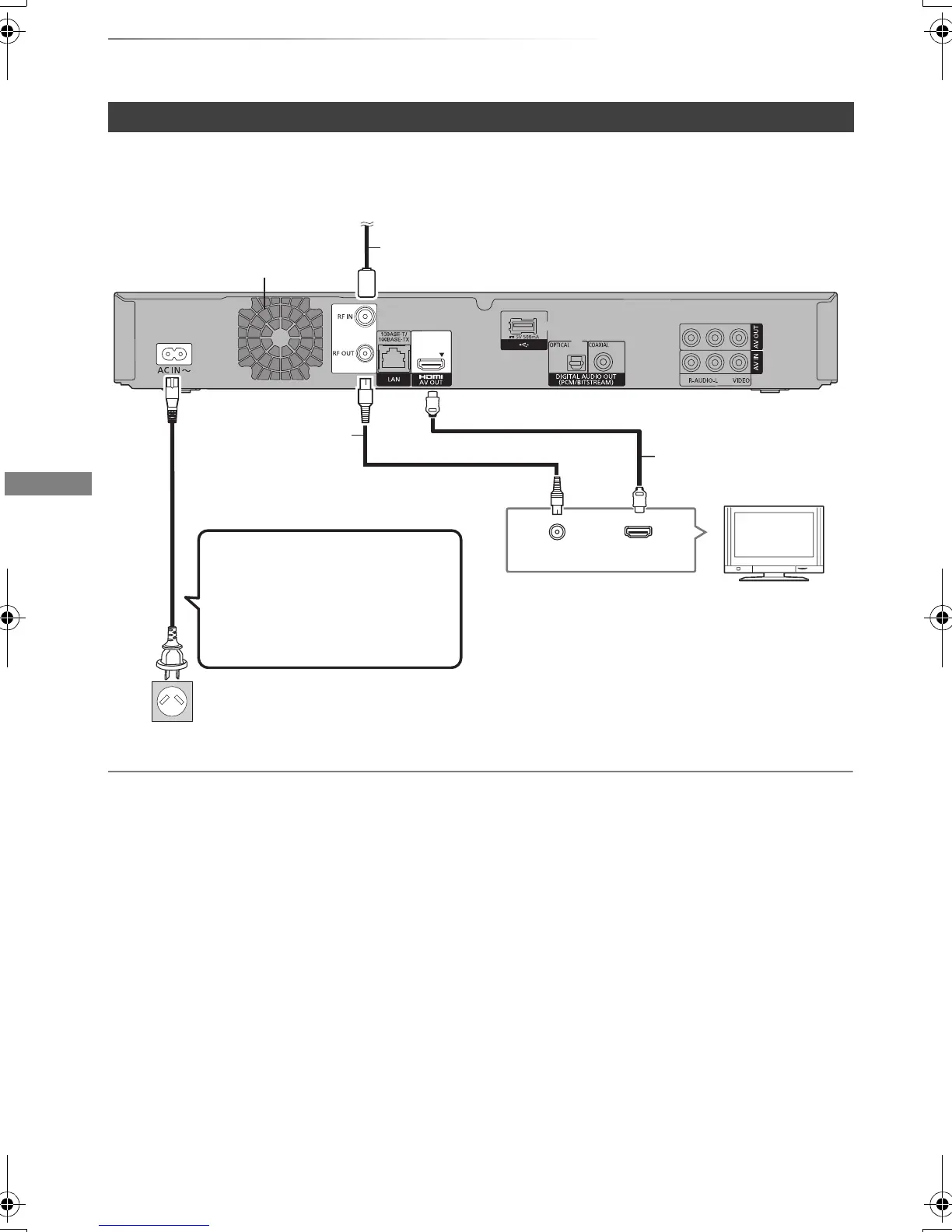

Basic connections
TV’s rear panel
This unit’s rear panel
Household mains socket
(AC 220 to 240 V, 50 Hz)
Cooling fan
AC mains lead
(supplied)
• Connect only after all other
connections are complete.
HDMI cable
To the aerial
Aerial cable
RF coaxial cable
(supplied)
