11
Connecting and Setting up (continued)

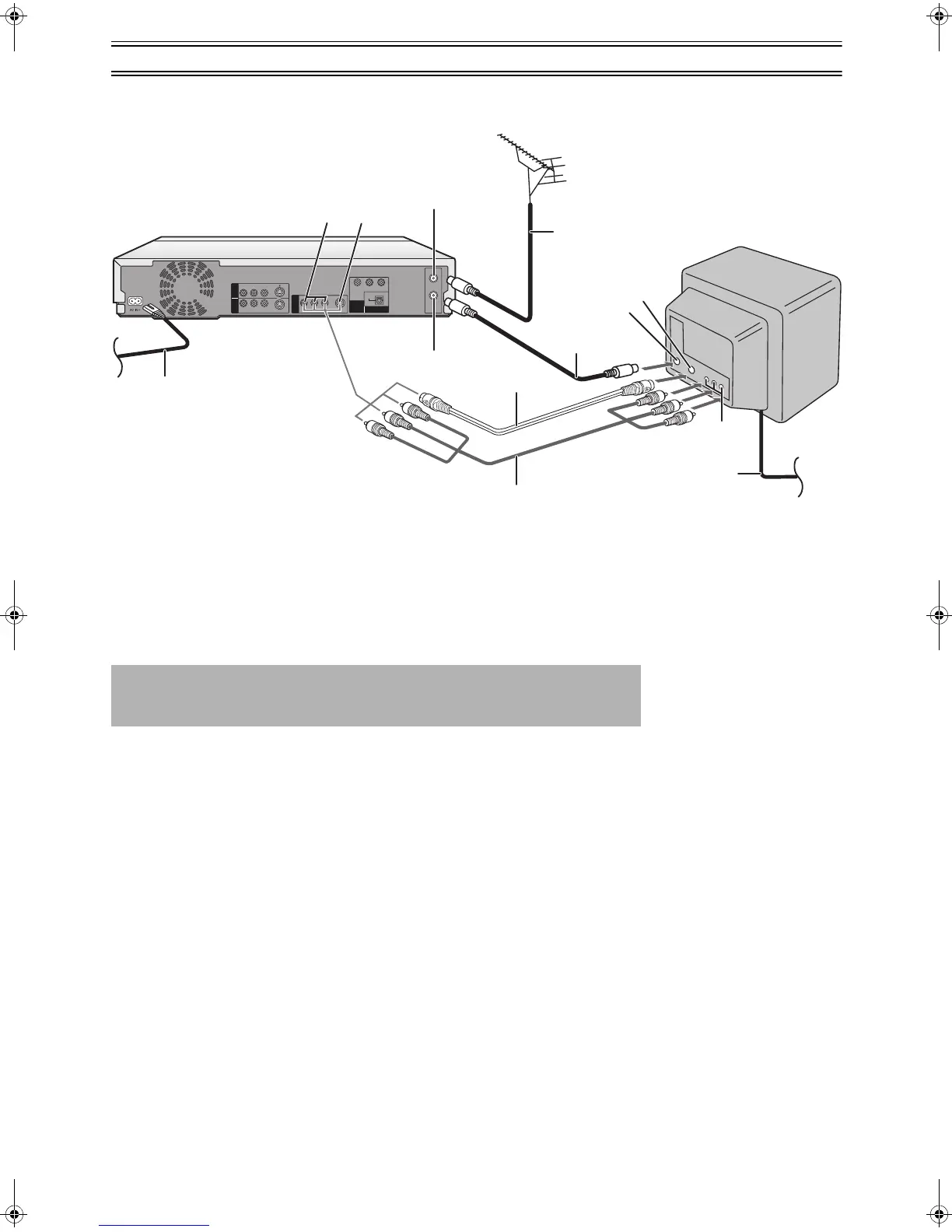

Follow these steps if you connect your unit to a television using an S-Video cable. (S-Video Connection)
An RF Coaxial cable must be connected to watch television.
Do not connect the unit through a video cassette recorder
Video signals fed through video cassette recorders will be affected by copyright protection
systems and the picture will not be shown correctly on the television.
RF IN
RF OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
YP
B
P
R
R - AUDIO - L
R - AUDIO - L
VIDEO
VIDEO
S-VIDEO
S-VIDEO
AV1 I N AV3 IN
R - AUDIO - L
VIDEO
COMPONENT
VIDEO OUT
(NTSC:480P/480I,
PAL:576I)
OUT
S-VIDEO
(2) (1)
(3)
(4)
(5)
(6)
(7)
3
1
5
6
4
2
ªConnect as following steps
1 RF Coaxial cable (supplied)
2 Audio/Video cable (supplied)
3 S-Video cable (not supplied)
4 Aerial lead (not supplied)
5 AC mains leads (supplied)
6 AC mains leads (not supplied)
Sockets
(1) S-Video Output socket
(2) Audio/Video Output socket
(3) Aerial Input socket
(4) Aerial Output socket
(5) Aerial Input socket
(6) S-Video Input socket
(7) Audio/Video Input socket
