Connecting and Setting up
First of all, please disconnect AC mains leads of all units which you are going to connect with before connecting and disconnecting
cables.
Use an Audio/Video cable or Audio/S-Video cable.

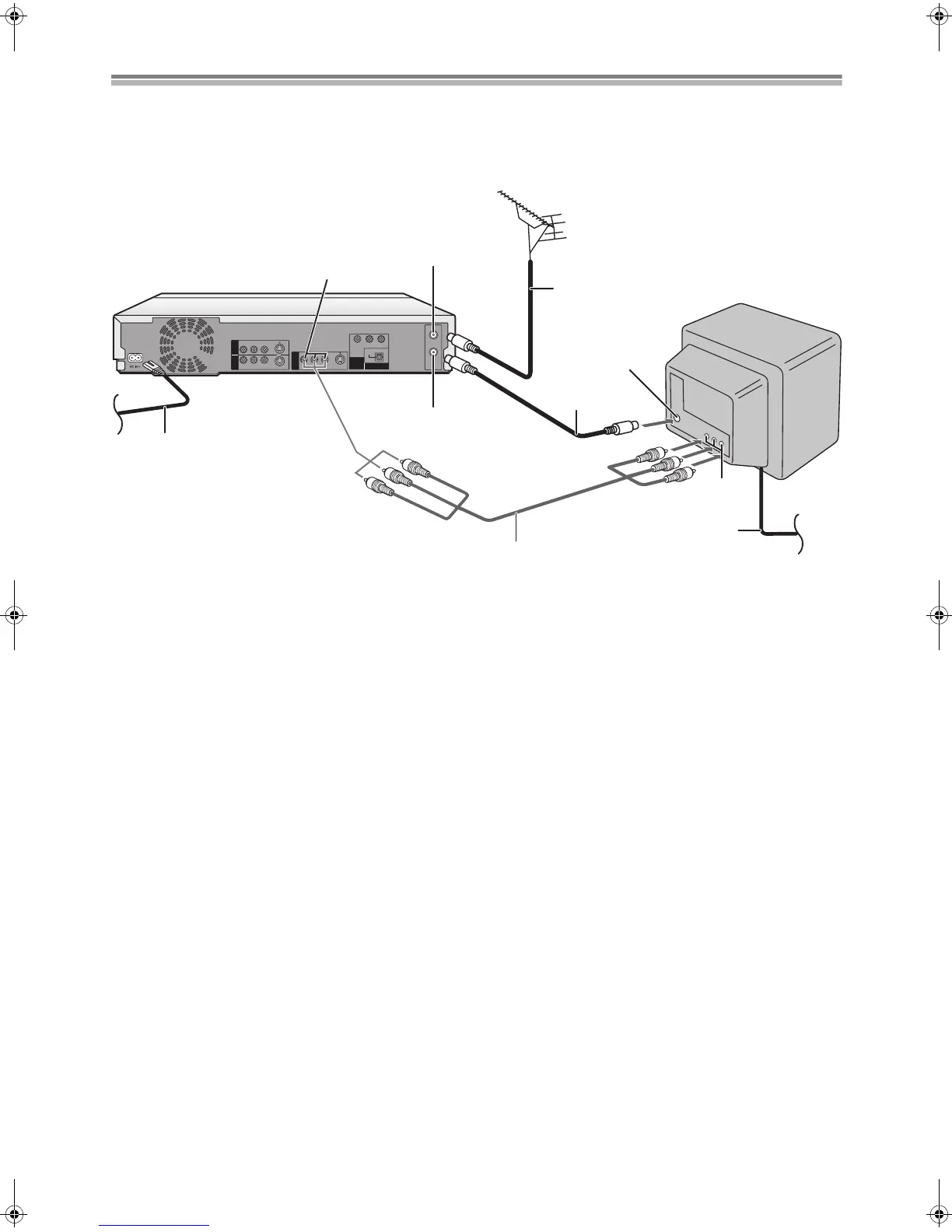

Follow these steps if you connect your unit to a television using an RF Coaxial cable and an Audio/Video cable. (AV Connection)
An RF Coaxial cable must be connected to watch television even if an Audio/Video cable is also used to connect unit to the television
RF IN
RF OUT
OPTICAL
DIGITAL AUDIO OUT
(PCM/BITSTREAM)
YP
B
P
R
R - AUDIO - L
R - AUDIO - L
VIDEO
VIDEO
S-VIDEO
S-VIDEO
AV1 I N AV3 IN
R - AUDIO - L
VIDEO
COMPONENT
VIDEO OUT
(NTSC:480P/480I,
PAL:576I)
OUT
S-VIDEO
(1)
(2)
(3)
(4)
(5)
4
2
1
5
3
ªConnect as following steps
1 RF Coaxial cable (supplied)
2 Audio/Video cable (supplied)
3 Aerial lead (not supplied)
4 AC mains leads (supplied)
5 AC mains leads (not supplied)
Sockets
(1) Audio/Video Output socket
(2) Aerial Input socket
(3) Aerial Output socket
(4) Aerial Input socket
(5) Audio/Video Input socket
