Panasonic Diga DMR-E51 - Connecting a Video Cassette Recorder

49
Upgrading your system (continued)

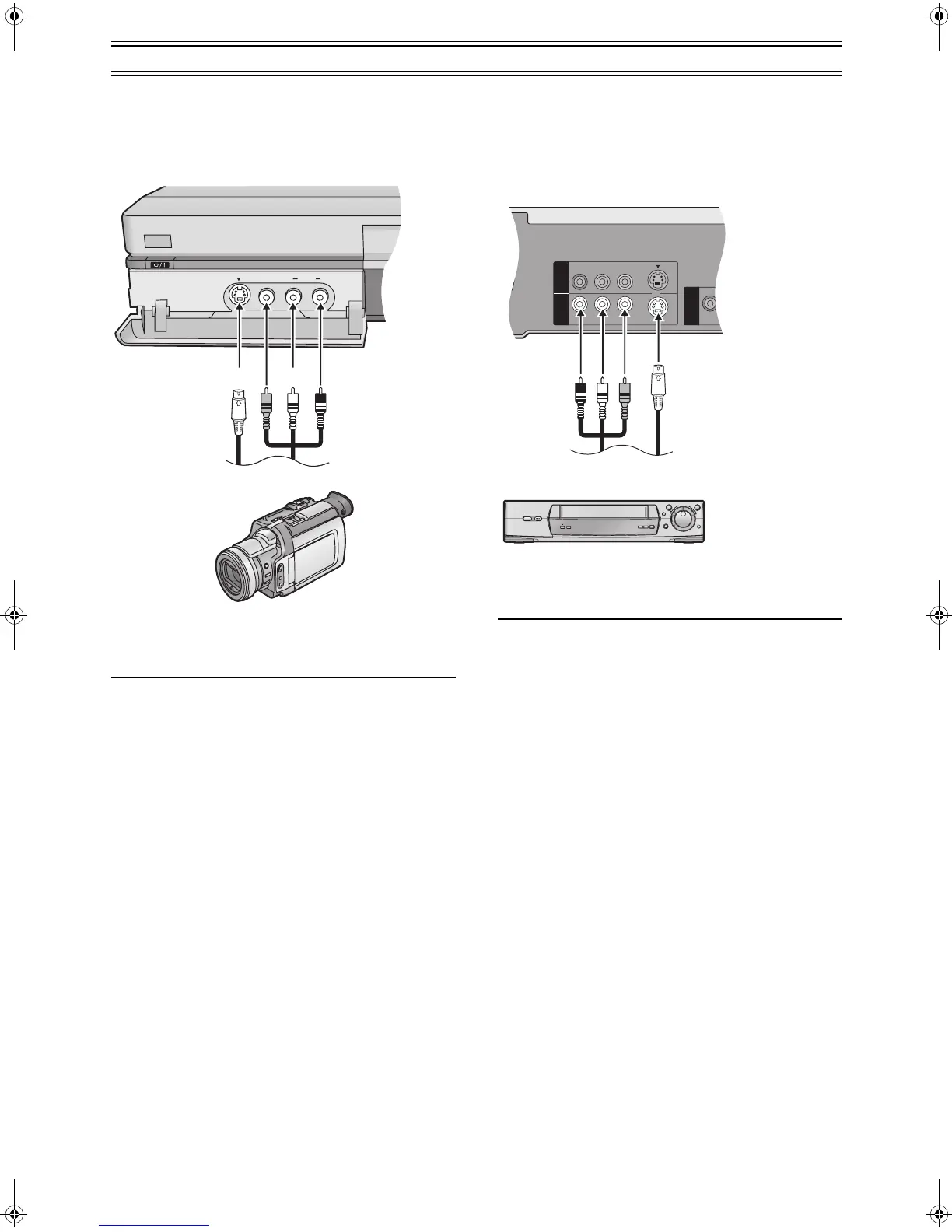

Connecting a video cassette recorder
When connecting to the AV2 input terminals on the
front of the unit
(1) S video cable (not supplied)
(2) Audio/Video cable (not supplied)
(3) Other playback equipment
≥Connect to the video and audio output terminals.
Note
≥If the audio output of the other equipment is monaural, connect to
L/MONO. (Both left and right channels are recorded when
connected through L/MONO.)
When connecting to the input terminals on the rear of
the unit
(1) Audio/Video cable (not supplied)
(2) S video cable (not supplied)
(3) Other playback equipment
≥Connect to the video and audio output terminals.
Note
≥If audio output of the other equipment is monaural, use a stereo-
monaural conversion cable (not supplied).
S-VIDEO IN
AV2
VIDEO IN
R
L/MONO
AUDIO IN
(3)
(1) (2)
R - AUDIO - L
R - AUDIO - L
VIDEO
VIDEO
S-VIDEO
S-VIDEO
AV1 IN AV3 IN
R - AUDIO - L
OUT
(2)
(1)
(3)
