VQT4E90
12
Getting started

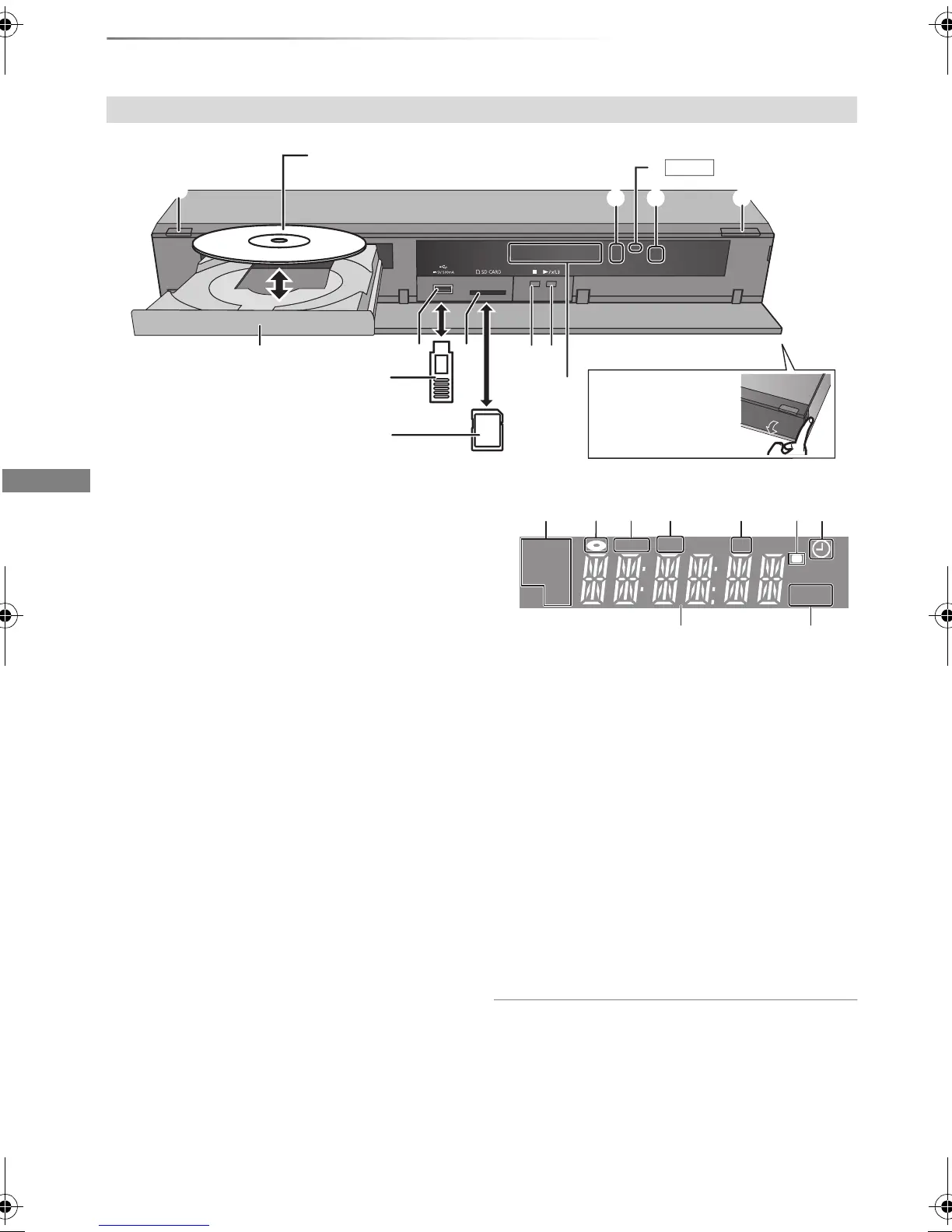

Control reference guide
1 Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2 Recording indicator
• The indicator will light up while recording.
• The indicator will blink while recording is
paused and before recording starts.
3 [PWT520] CALL LED
• The LED will light up when this unit receives
incoming call etc. of the video
communication. (> 66)
4 Remote control signal sensor
• Angle: Approx. 20° up and down, 30° left and
right
• Distance: Within approx. 7 m in front of the
unit
5 Open/close disc tray
6 Disc tray
7 USB port
8 SD card slot
• When removing the SD card, press on the
centre of the card and pull it straight out.
9 Stop
: Start play
; Display
1 Drive (HDD, BD or SD) indicator
2 Disc indicator
3 Copying indicator
4 USB port indicator
5 SD card slot indicator
6 Remote control signal indicator
7 Timer recording indicator
• This indicator lights up when the timer
recording standby is activated.
8 Main display section indicator
- Current time
- Playback counter
- Various messages (> 92)
9 Playback indicator
• While writing to/reading from the media, do not switch the
unit to standby mode or remove the media. Such action
may result in loss of the media contents.
• When inserting the media, ensure that it is facing the right
way up.
Main unit
PWT520
Pull to flip down
the front panel.
SD card
USB memory
Press [< OPEN/CLOSE] to open the
tray and insert or remove a disc.
PLAY
COPY
SDUSB
HDD
SD
BD
12 5 7643
89
DMR-PWT520&420EB_eng.book 12 ページ ２０１２年３月２３日 金曜日 午後４時４２分
