Getting started
Connection
• Keep the RF coaxial cables as far away as possible from
other cables.
• Do not roll up the RF coaxial cables.
• The HDMI connection supports VIERA Link “HDAVI
Control” (> 67).
• You cannot connect this unit to DVI devices that are
incompatible with HDCP.
Depending on the device, images may not display properly
or at all when connecting with a DVI/HDMI switching cable.
(Audio cannot be output.)
• If you are connecting to a TV that is only compatible with
2 channel audio output, audio with 3 channels or more will
be down mixed and output as 2 channels, even if
connecting with an HDMI cable. (Some discs cannot be
down mixed.)
• VIERA Link function is possible by connecting to a TV or
amplifier/receiver compatible with VIERA Link.
• When using a TV or an amplifier/receiver that does not
display “ARC compatible” on the HDMI terminal, it is
necessary to connect the TV and the amplifier/receiver with
a digital audio cable to enjoy the TV audio on the
amplifier/receiver.
When the unit is not to be used for a long
time
To save power, unplug it from the household
mains socket. This unit consumes a small
amount of power, even when the unit is in
standby mode.
[approx. 0.2 W (“Power Save in Standby” is
activated and “RF OUT ( Aerial Signal )” is
set to “Off”)]

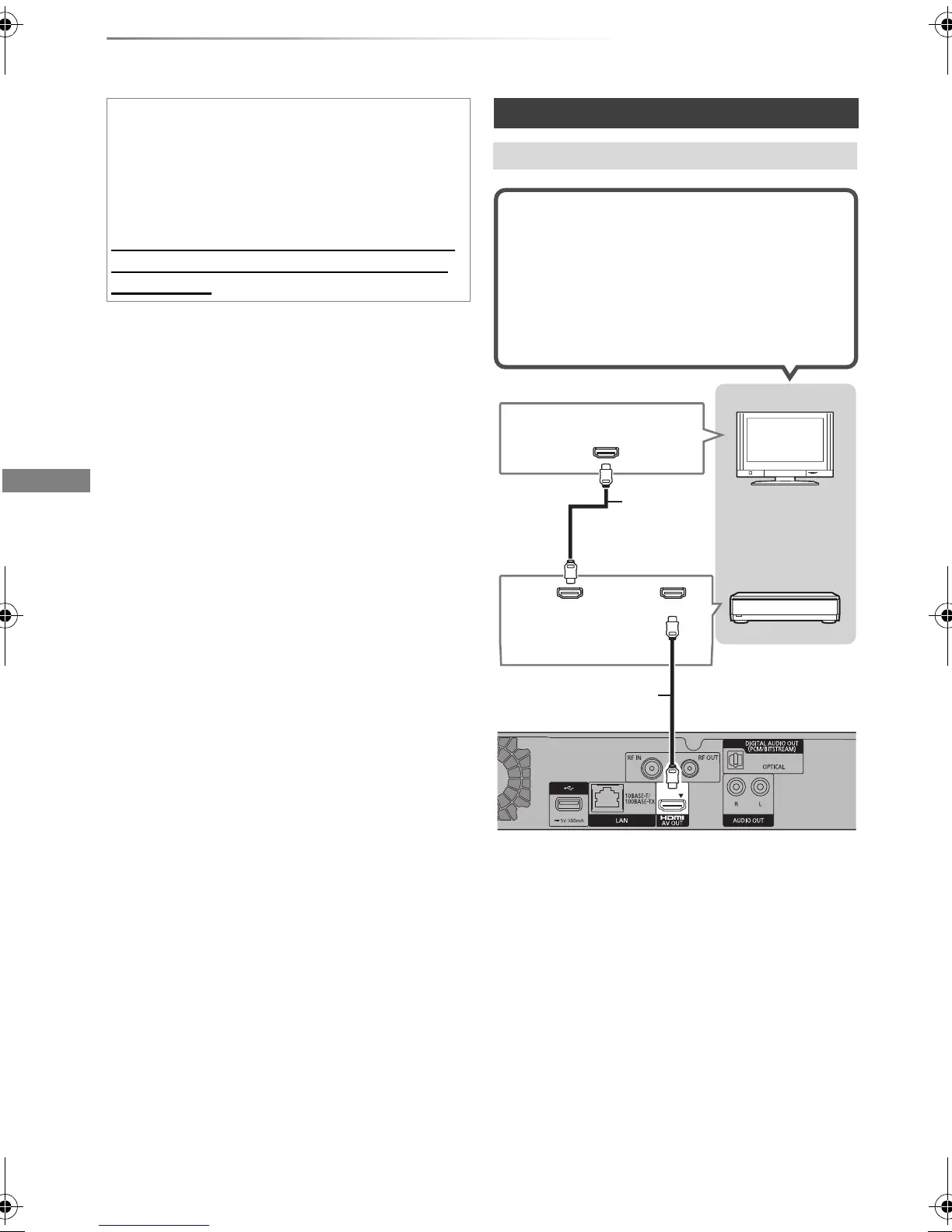

Amplifier/receiver connections
HDMI terminal
HDMI
cable
Amplifier/
receiver
TV
HDMI cable
(ARC compatible)
(ARC compatible)
3D programmes can be played back when
this unit is connected to a 3D compatible
amplifier/receiver and a 3D compatible TV.
• You will not be able to view 3D programmes
with this connection if your amplifier/receiver
is not 3D compatible.
