7.3. Service Position
This Service Position is used for checking and replacing parts. Use the following Extension cables for servicing.

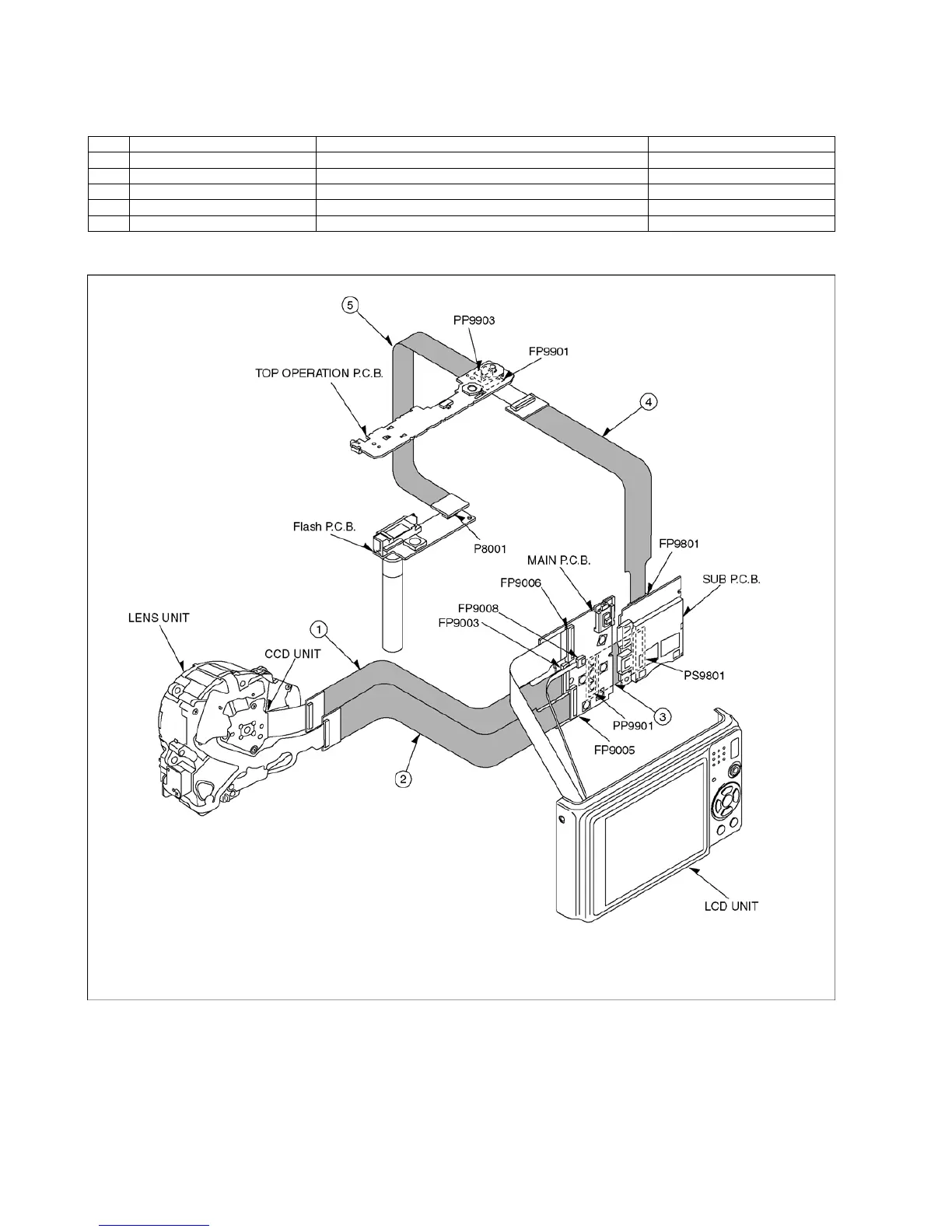

7.3.1. Extension Cable Connections
CAUTION-1. (When servicing FLASH PCB)
1. Be sure to discharge the capacitor on FLASH PCB.
Refer to “HOW TO DISCHARGE THE CAPACITOR ON FLASH PCB”.
The capacitor voltage is not lowered soon even if the AC Cord is unplugged or the battery is removed.
2. Be careful of the high voltage circuit on FLASH PCB.
3. DO NOT allow other parts to touch the high voltage circuit on FLASH PCB.
No. Parts No. Connection Form
1 RFKZ0416 FP9003 (MAIN) - CCD UNIT 41PIN 0.3 FFC
2 RFKZ0477 FP9005 (MAIN) - LENS UNIT 45PIN 0.4 FFC
3 RFKZ0445 PP9901 (MAIN) - PS9801(SUB) 100PIN B to B
4 RFKZ0416 FP9801 (SUB) - FP9901 (TOP OPERATION P.C.B.) 41PIN 0.3 FFC
5 VFK1906 P8001 (FLASH PCB) - PP9903 (TOP OPERATION P.C.B.) 20PIN B to B
