9
3.4. How to Define the Model Suffix (NTSC or PAL model)
There are eight kinds of DMC-TZ7/ZS3, regardless of the colours.
• a) DMC-TZ7 (Japan domestic model.) /SG
• b) DMC-ZS3P/PC
• c) DMC-TZ7EB/EF/EG/EP
• d) DMC-TZ7EE
• e) DMC-ZS3GD
• f ) DMC-ZS3GT
• g) DMC-TZ7GN
• h) DMC-ZS3GK
• i ) DMC-TZ7GC/GJ, ZS3GH/PU
What is the difference is that the ”INITIAL SETTINGS” data which is stored in Flash ROM mounted on Main PCB.

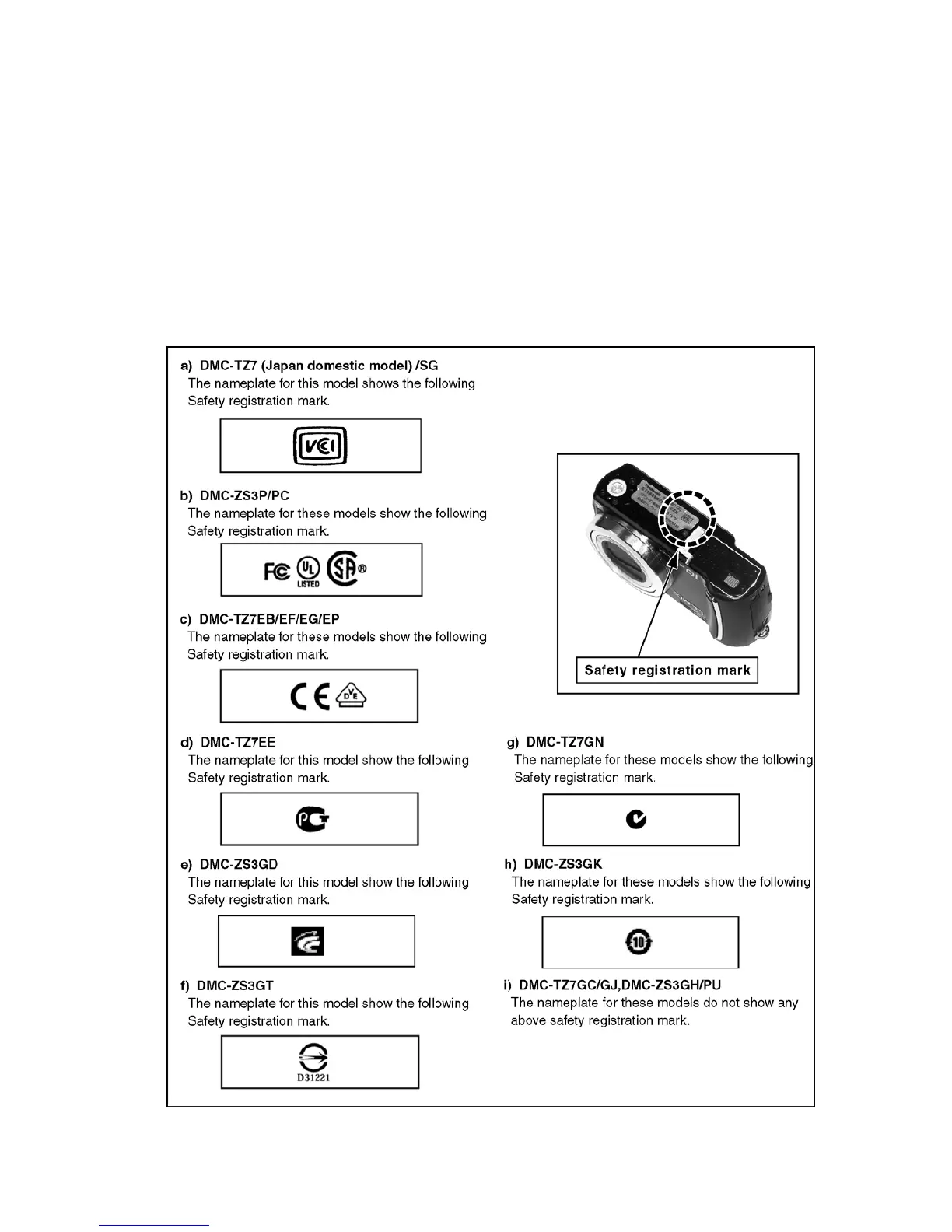

3.4.1. Defining methods
To define the model suffix to be serviced, refer to the nameplate which is putted on the bottom side of the Unit.
