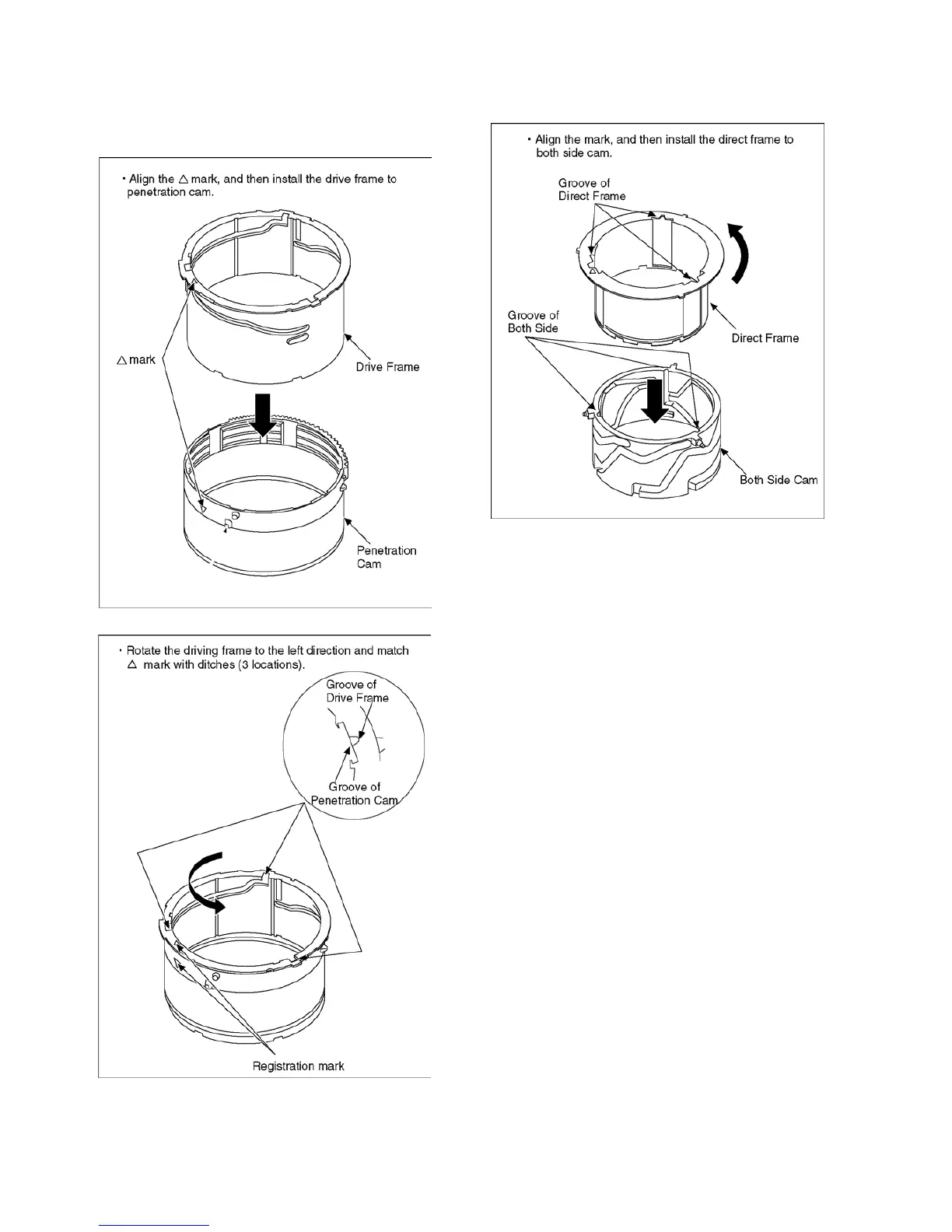

8.5. Assembly Procedure for Lens
8.5.1. Phase alignment of the Penetration
Cam and Drive Frame
8.5.2. Phase alignment of the Direct
Frame and Both Side Cam
