35

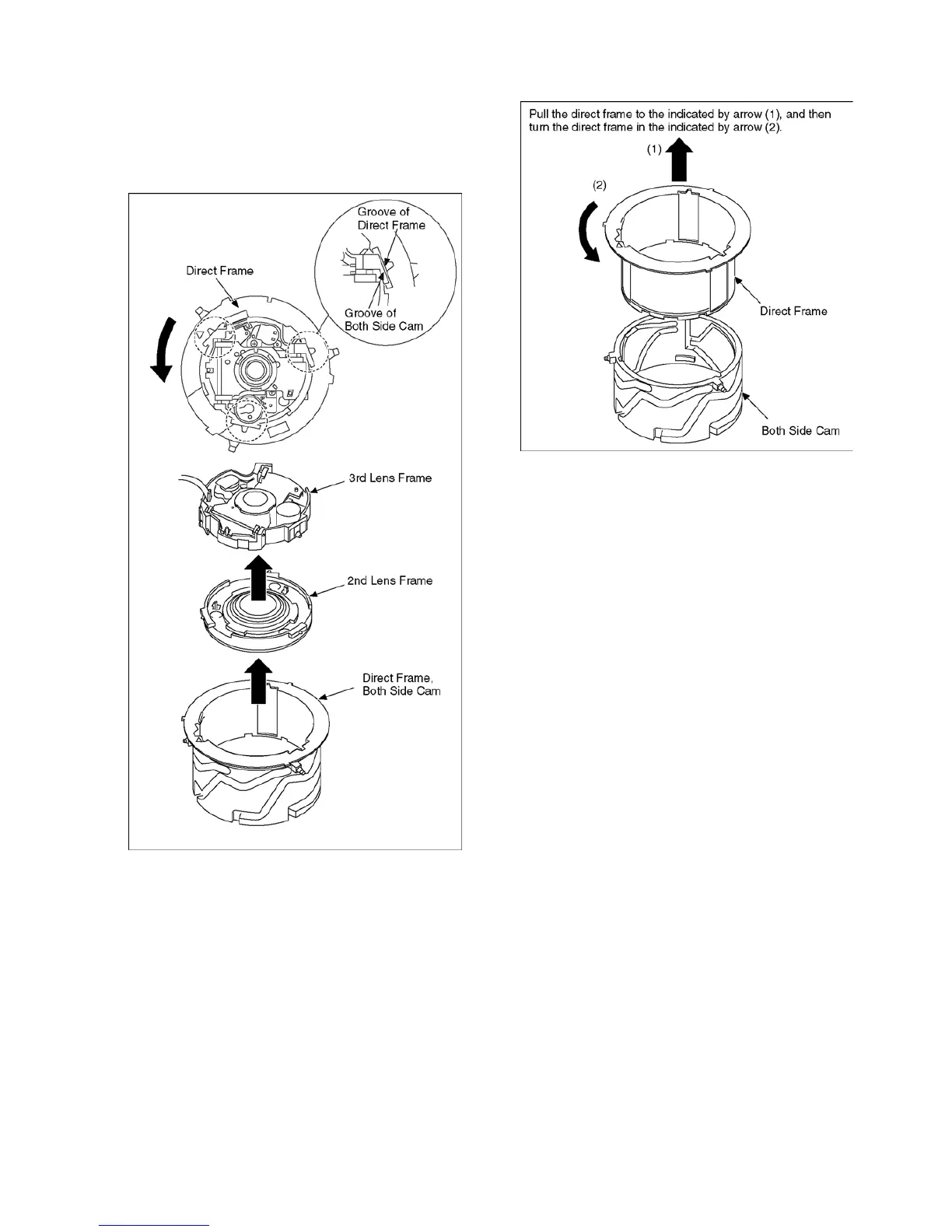

8.4.5. Removal of the 3rd Lens Frame and
2nd Lens Frame
1. Turn the direct frame, and then Align the groove of direct
frame and groove of both side cam.
2. Remove the 3rd lens frame and 2nd lens frame from the
direct frame, both side cam.
8.4.6. Removal of the Direct Frame
To Next Page
